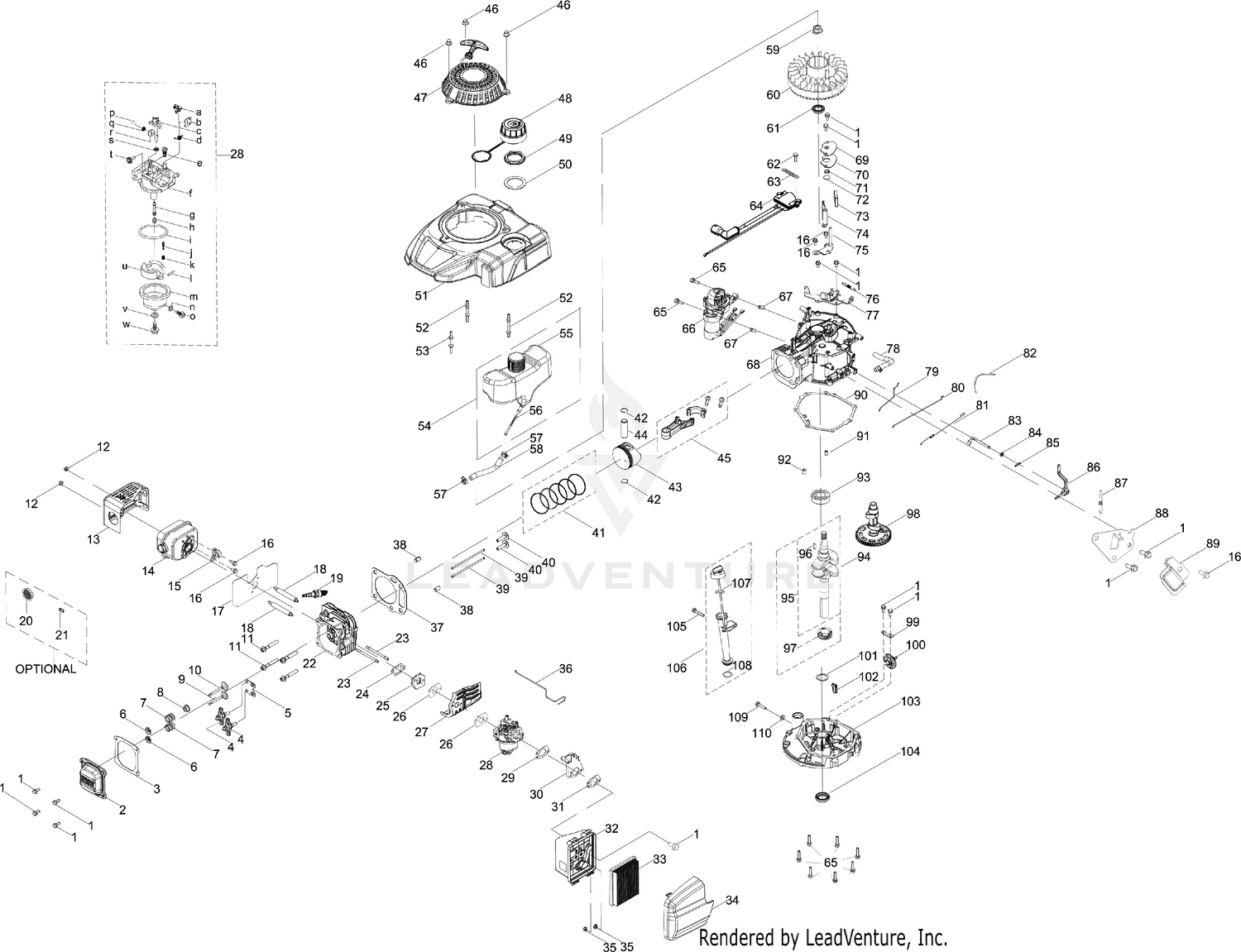

8X65MUA General Assembly
Parts (130)
| Ref | Part Number | Description |
|---|---|---|
| S | 721P04714A | CARB SHAFT GASKET Price: $1.22 |
| a | None | Choke Shaft |
| b | None | Choke Plate |
| c | None | Throttle Shaft |
| d | None | Choke Return Spring |
| e | None | Idle Jet Assembly |
| f | None | Carburetor Body |
| g | None | Emulsion Tube |
| h | None | Main Jet |
| i | 721-04710A | FLOAT BOWL O-RING Price: $2.15 |
| j | 793P00165A | NEEDLE VALVE This part replaces 793P00165. Price: $4.13 |
| k | 732P05251A | NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| l | 711-06043A | FLOAT PIN This part replaces 711-06043. Price: $0.56 |
| m | 908-05001 | FLOAT BOWL Price: $7.16 |
| n | 721P04711A | FUEL DRAIN PLUG GASKET Price: $1.48 |
| o | 710-06227 | FUEL DRAIN PLUG Price: $2.98 |
| p | 710-06230 | SCREW-3Mx6 Price: $2.98 |
| q | 736P05209A | LOCK WASHER 3MM Price: $2.45 |
| r | None | Throttle Plate |
| t | 710P06038A | SPEED IDLE SCREW Price: $2.45 |
| u | 731P09132A | FLOAT Price: $4.45 |
| v | 721-04709A | FLOAT BOWL GASKET Price: $2.15 |
| w | 710-06226 | FUEL BOWL BOLT Price: $2.98 |
| 1 | 710-04916 | BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 | 951-14609A | VALVE COVER Price: $14.42 |
| 3 | 751P18586A | VALVE COVER GASKET Price: $3.94 |
| 4 | 951-11606A | ROCKER ARM Price: $29.12 |
| 5 | 951-11687A | PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 6 | 908-04094A | VALVE RETURN SPRING Price: $3.20 |
| 7 | 751P12004A | VALVE SPRING Price: $1.74 |
| 8 | 921-04237A | INTAKE VALVE SEAL Price: $7.20 |
| 9 | 951-14641A | EXHAUST VALVE Price: $8.71 |
| 10 | 951-14640A | INTAKE VALVE Price: $8.71 |
| 11 | 910-06185 | BOLT-M8 x 54 Price: $5.88 |
| 12 | 712-05015 | HEX NUT Price: $5.78 |
| 13 | 951-15566 | MUFFLER SHIELD Price: $24.41 |
| 14 | 951-14429A | MUFFLER ASSEMBLY This part replaces 951-14429. Price: $55.88 |
| 15 | 951-14428A | CHOKE TEMP CONTROL THERMOSTAT Price: $36.29 |
| 16 | 710-04915 | BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 17 | 751P18909A | MUFFLER GASKET Price: $5.60 |
| 18 | 710-05094 | STUD M6-1 x 95 Price: $3.78 |
| 19 | 951-14437A | SPARK PLUG (F5RTC/RN11YC4/BPR5ES) Price: $6.35 |
| 20 | 951-10351A | SPARK ARRESTOR Price: $48.91 |
| 21 | 710-04983 | SCREW M3.5 x 9.5 Price: $3.65 |
| 22 | 951-14639 | CYLINDER HEAD Price: $108.54 |
| 23 | 951-15580 | STUD M6 x 90 Price: $5.25 |
| 24 | 751P18606A | CARBURETOR INSULATOR GASKET This part replaces 751P18606. Price: $4.14 |
| 25 | 951-11738A | CARBURETOR INSULATOR This part replaces 951-11738. Price: $4.60 |
| 26 | 721P05941A | CARBURETOR GASKET Price: $2.98 |
| 27 | 751P18991 | CARBURETOR HEAT SHIELD Price: $5.60 |
| 28 | 651P08667 | CARBURETOR Price: $43.45 |
| 29 | 721P05942A | AIR FILTER BRACKET GASKET Price: $5.20 |
| 30 | 908-05265 | AIR FILTER BRACKET Price: $8.03 |
| 31 | 951-14419A | AIR FILTER BASE GASKET Price: $7.08 |
| 32 | 931-12769 | AIR FILTER BASE Price: $12.27 |
| 33 | 951-15245 | AIR FILTER Price: $13.77 |
| 34 | 931-12768A | AIR FILTER COVER This part replaces 931-12768. Price: $9.78 |
| 35 | 712-05015 | HEX NUT Price: $5.78 |
| 36 | 951-14421A | CHOKE TEMP CONTROL LINKAGE This part replaces 951-14421. Price: $7.10 |
| 37 | 751P18607A | HEAD GASKET This part replaces 751P18607. Price: $4.14 |
| 38 | 715P04090A | PIN (10MMx16MM) Price: $2.95 |
| 39 | 747P04862A | PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 40 | 951-14432A | TAPPET Price: $7.49 |
| 41 | 951-14433A | PISTON RING SET Price: $34.45 |
| 42 | 951-11603A | WRIST PIN CLIP Price: $2.90 |
| 43 | 951-14434A | PISTION Price: $56.68 |
| 44 | 951-14435A | PISTON PIN Price: $9.22 |
| 45 | 951-14436A | CONNECTING ROD This part replaces 951-14436. Price: $61.10 |
| 46 | 712-04276A | ACORN NUT M6-1 Price: $5.38 |
| 47 | 951-05360A | RECOIL STARTER ASSEMBLY Price: $50.15 |
| 48 | 951-15255A | FUEL CAP W/TETHER Price: $23.25 |
| 49 | 931-10290A | FUEL TANK NUT Price: $4.85 |
| 50 | 951-14406A | FUEL TANK GROMMET Price: $9.68 |
| 52 | 951-14397 | STARTER/SHROUD REAR STUD Price: $8.66 |
| 53 | 951-14398 | STARTER/SHROUD FRONT STUD Price: $8.66 |
| 55 | 931-12771A | FUEL TANK Price: $43.89 |
| 56 | 951-12296A | FUEL FILTER Price: $8.68 |
| 57 | 951-11700A | CARBURETOR HOSE CLAMP Price: $3.60 |
| 58 | 935-05215A | FUEL HOSE This part replaces 935-05215. Price: $11.42 |
| 59 | 712-04287A | FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 60 | 751P19014 | FLYWHEEL Price: $74.62 |
| 61 | 951-11596A | UPPER CRANKSHAFT SEAL Price: $5.44 |
| 62 | 710-04918 | BOLT M6-1 x 20 GR8.8 Price: $3.56 |
| 63 | 951-11622A | FLEXIBLE CLAMP Price: $3.42 |
| 64 | 925-07167 | IGNITION COIL ASSEMBLY Price: $71.60 |
| 65 | 710-04943 | BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 66 | 651P06936 | ELECTRIC STARTER ASSEMBLY Price: $209.22 |
| 67 | 715-04088A | DOWEL PIN Price: $2.97 |
| 68 | 751P19015 | CRANKCASE Price: $75.44 |
| 69 | 951-14404 | BREATHER COVER PLATE Price: $12.64 |
| 70 | 951-14405A | BREATHER GASKET Price: $7.39 |
| 71 | 732-04718A | BREATHER VALVE SPRING Price: $3.30 |
| 72 | 951-11614A | BREATHER VALVE Price: $3.13 |
| 73 | 951-11730A | BREATHER SCREEN Price: $3.84 |
| 74 | 951-11529A | AIR VANE Price: $6.25 |
| 75 | 751P18911 | AIR VANE BRACKET Price: $5.00 |
| 76 | 932-05566A | ENGINE BRAKE SPRING Price: $4.19 |
| 77 | 951-05533 | ENGINE BRAKE ASSEMBLY Price: $33.36 |
| 78 | 951-15567 | BREATHER HOSE ASSEMBLY Price: $5.25 |
| 79 | 951-15702 | CHOKE LINKAGE Price: $4.19 |
| 80 | 951-14721 | THROTTLE LINKAGE Price: $5.88 |
| 81 | 732P05188A | THROTTLE LINKAGE SPRING This part replaces 732-05188. Price: $6.05 |
| 82 | 725-06031A | CABLE TIE 3x150 Price: $2.04 |
| 83 | 951-11621 | GOVERNOR ARM SHAFT Price: $8.68 |
| 84 | 951-11902A | OIL SEAL Price: $3.36 |
| 85 | 714-04078A | COTTER PIN Price: $3.19 |
| 86 | 951-05160A | GOVERNOR ARM ASSEMBLY Price: $5.37 |
| 87 | 951-14718A | GOVERNOR SPRING This part replaces 951-14718. Price: $6.70 |
| 88 | 908-05254 | COMPONENT BRACKET Price: $5.71 |
| 89 | 908-05255 | GOVERNOR SHIELD Price: $4.02 |
| 90 | 751P18609A | CRANKCASE COVER GASKET This part replaces 751P18609. Price: $5.02 |
| 91 | 715-04092A | DOWEL PIN 7 X 14 Price: $2.97 |
| 92 | 715-04096A | DOWEL PIN 9 X 14 Price: $3.66 |
| 93 | 751P11369A | BEARING Price: $5.19 |
| 95 | 751P19128 | CRANKSHAFT Price: $75.00 |
| 96 | 751P10307A | WOODRUFF KEY Price: $2.01 |
| 97 | 931-10288A | GEAR Price: $8.18 |
| 98 | 751P18628A | CAMSHAFT This part replaces 751P18628. Price: $17.80 |
| 99 | 951-11609A | GOVERNOR GEAR MOUNTING PLATE Price: $3.94 |
| 100 | 951-05336A | GEAR GOVERNOR Price: $7.77 |
| 101 | 736-04491A | THRUST WASHER Price: $3.30 |
| 102 | 951-11733 | OIL RETURN SEAL Price: $4.28 |
| 103 | 951-14418A | CRANKCASE COVER This part replaces 951-14418. Price: $83.09 |
| 104 | 951-11545A | LOWER CRANKSHAFT SEAL Price: $9.07 |
| 105 | 710-04980 | BOLT M6-1 x 35 GR8.8 Price: $3.42 |
| 106 | 951-05438 | OIL DIPSTICK ASSEMBLY Price: $12.27 |
| 107 | 921-04795A | O-RING Price: $3.38 |
| 108 | 921-04697A | O-RING Price: $2.45 |
| 109 | 710-04906 | OIL DRAIN PLUG Price: $5.86 |
| 110 | 736-04440A | FLAT WASHER Price: $6.01 |
