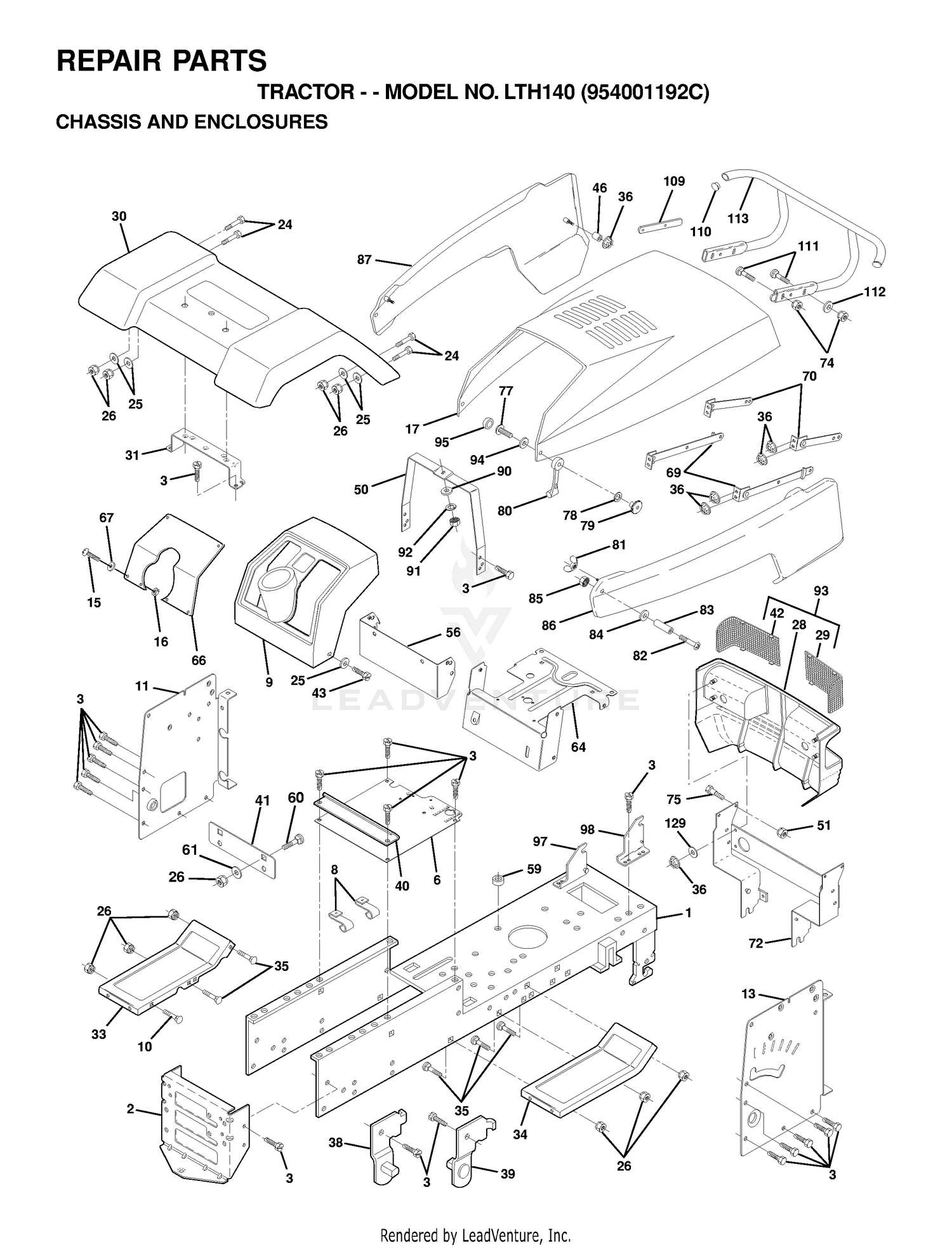

CHASSIS & ENCLOSURES

CHASSIS & ENCLOSURES

Parts (69)

RefPart NumberDescription
1 532145501 CHASSIS WELD 11GA.95 Price: $130.75
2 532145009 KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $44.99
3 534200501 BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99
6 532145206 SADDLE LT FENDER Price: $15.92
8 532126471 CLIP,INSULATOR Price: $3.99
9 532140452 DASH Price: $32.53
10 596728201 Bolts This part replaces 872140608. Price: $3.99
11 532145218 PANEL DASH LT Price: $22.99
13 532145217 PANEL DASH RH Price: $18.99
15 874180512 Screw, Machine, Truss Head 5/16-18 UNC x 3/4 Price: $3.99
16 596040501 Hardware This part replaces 873510500. Price: $2.99
17 532125454 HOOD.HUSQVARNA.ORANGE Price: $361.99
24 596564401 Bolts This part replaces 874780616. Price: $3.99
25 596134901 GSPH This part replaces 819131312. Price: $2.99
26 596322601 Nuts This part replaces 873800600. Price: $2.99
28 532157236 GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127325. Price: $119.99
29 532157069 LENS.RH.HUSQVARNA.YTGT.CL This part replaces 532124251. Price: $12.99
30 532166886 FENDER This part replaces 532143050. Price: $76.53
31 532139976 BRACKET.SUPPORT.FENDER Price: $14.99
33 532147203 FOOT REST LH Price: $9.15
34 532145243 FOOTREST LT/YT/GT RH This part replaces 532147202. Price: $9.15
35 596136001 Bolts This part replaces 872110606. Price: $3.99
36 532108067 PAL NUT LT Price: $3.10
38 532139886 BRACKET LH PIVOT Price: $6.99
39 532139887 BRACKET RH PIVOT Price: $6.99
40 532139977 SPACER Price: $5.46
41 532153764 CONSOLE This part replaces 532139978. Price: $12.99
42 532157068 LENS LH This part replaces 532124250. Price: $13.99
43 817000616 SCREW 3/8-16X1 This part replaces 817490616. Price: $5.99
46 532127316 RETAINER Price: $3.12
50 532145205 DASH SUPT YP Price: $7.99
51 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99
59 532009151 SNAP BUSHING T This part replaces 532110436. Price: $2.99
60 872140606 Bolt - Rd. Hd. Sq. Neckiage 3/8 16 x 3/4 Price: $4.99
61 819171416 Washer 1 17/32 X 7/8 X 16 Ga Price: $3.99
64 532150272 DASH LOWER LT This part replaces 532145095. Price: $15.99
66 532143049 DASH PLATE Price: $18.99
67 596204101 WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99
72 532126025 SUPT, ASS'Y GRILL Price: $51.81
74 596322601 Nuts This part replaces 873680600. Price: $2.99
75 532007605 BOLT This part replaces 532123481. Price: $4.99
77 871191008 SCREW.PNHD.10-24 This part replaces 874191008. Price: $7.99
78 810071000 LOCKWASHER #10 Price: $3.99
79 596987401 Nuts This part replaces 532125004. Price: $2.99
80 532109808 LATCH.HOOD. Price: $5.99
81 532146525 NUT.WING.LCK.NYL.NOTCH.1/4-20 Price: $3.99
82 874981024 SCREW.PAN.HEAD This part replaces 874981020. Price: $4.99
83 532007206 SPACER LT Price: $5.99
84 819070818 WASHER Price: $5.99
85 873271000 NUT This part replaces 873731000. Price: $2.99
86 532137946 SIDE PANEL RH This part replaces 532138886. Price: $66.23
87 532150302 PANEL ASSY This part replaces 532125393. Price: $147.84
90 596204201 Washers This part replaces 819091216. Price: $2.99
91 532050675 NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99
92 596029801 WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99
93 532157236 GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127321. Price: $119.99
94 532110357 WASHER LT Price: $2.99
95 532110356 SNAP CAP LT Price: $3.99
97 532110853 SUPPORT RH YTH Price: $3.74
98 532110852 SUPPORT LH YTH Price: $3.79
109 532170310 BUMPER BRACKET This part replaces 532141461. Price: $4.99
110 532143679 PLUG PLASTIC Price: $2.99
111 595901101 Bolts This part replaces 872140610. Price: $3.99
112 596565301 WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99
113 954040608 This part replaces 532141460. Price: $51.95
129 596582301 Washers This part replaces 819091016. Price: $2.99
532005479 PLUG BUTTON T Price: $4.99 532005479
532121794 COVER ACCESS Price: $3.99 532121794
532125085 PLUG-DASH T Price: $5.54 532125085
