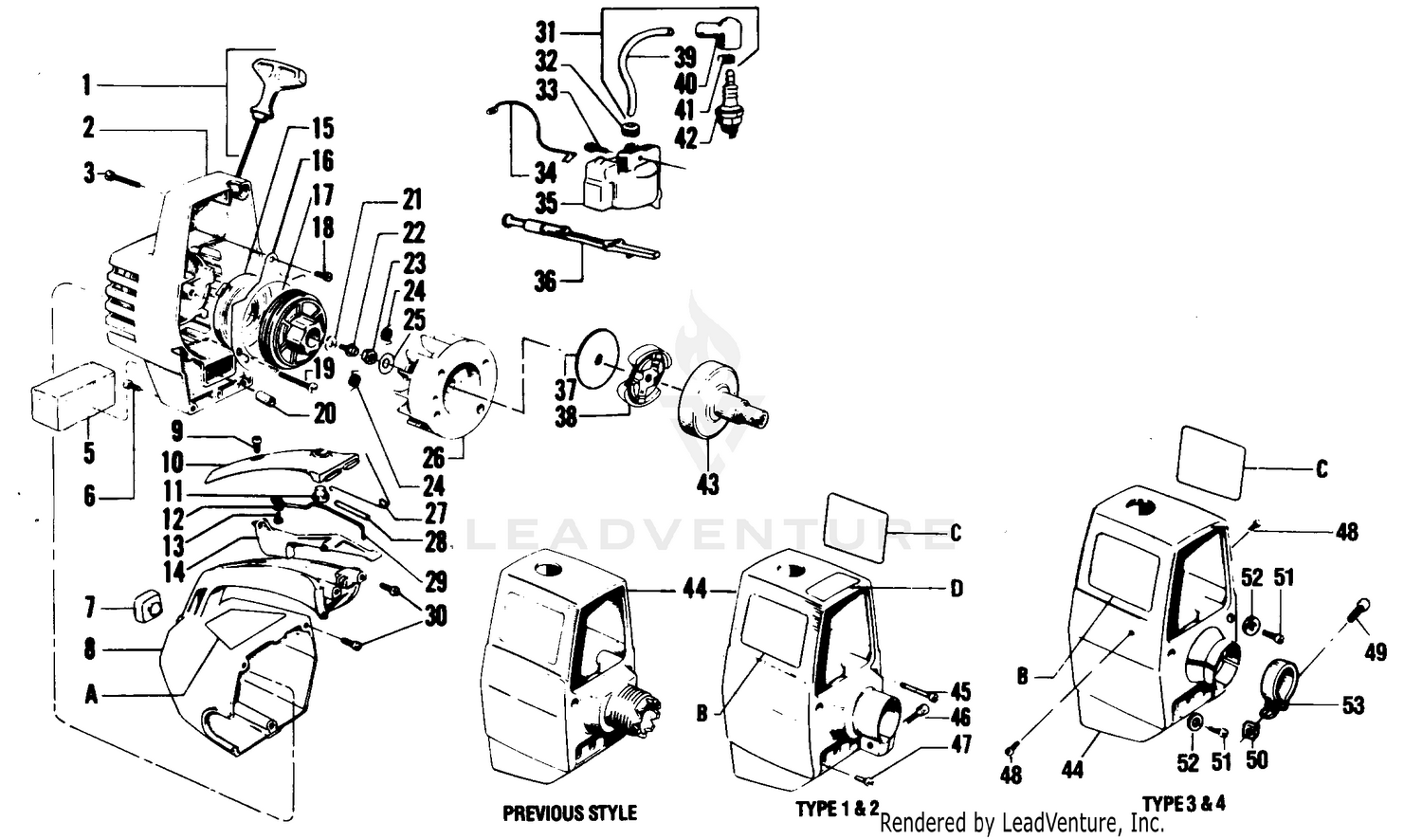

| Ref | Part Number | Description |
|---|
| A |
530026442 |
Models XR-50,XR-70 - Type 1 Price: $3.33 |
| A |
530026636 |
Model XR-50 Type 2 Price: $3.33 |
| A |
530027345 |
Model XR-50 Type 3 Price: $3.33 |
| A |
530027452 |
Model XR-50 Type 4 Price: $3.33 |
| B |
530024583 |
Model XR-50 Price: $3.33 |
| B |
530024585 |
Model XR-70 Price: $3.33 |
| C |
530024584 |
Model XR-50 Price: $3.33 |
| C |
530024586 |
Model XR-70 Price: $3.33 |
| 1 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 2 |
32140-32 |
SCREW-HH Price: $1.19 |
| 2 |
530069178 |
Fan Housing (Incl. #16, 18, 19, 20 & 28) See Service Ref. 8 Price: $39.99 |
| 3 |
19-3760 |
DISCONTINUED Price: Call Us |
| 4 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 5 |
3210-3 |
SCREW-HH Price: $5.29 |
| 5 |
530024371 |
Air Filter Price: $2.99 |
| 6 |
3220-1 |
NUT-JAM Price: $0.99 |
| 7 |
329-4 |
SCREW-HH Price: $0.79 |
| 7 |
530024436 |
Bumper - Fuel Tank Housing Price: $1.99 |
| 8 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 8 |
530024656 |
Handle and Fuel Tank Housing Price: $3.33 |
| 9 |
3219-1 |
NUT-HEX Price: $0.47 |
| 9 |
530015247 |
Screw - 8 - 16x3/4" - Pan Hd. - Handle Cover Price: $1.99 |
| 10 |
19-3400 |
DISCONTINUED Price: Call Us |
| 10 |
530024661 |
Handle Cover Price: $3.33 |
| 11 |
19-3430 |
DISCONTINUED Price: Call Us |
| 11 |
530026679 |
Button - Kill Switch Price: $3.33 |
| 12 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 12 |
530015412 |
Washer - Kill Switch Price: $3.33 |
| 13 |
19-3820 |
DISCONTINUED Price: Call Us |
| 13 |
530015407 |
Screw - 8 - 16x3/8"-Pan Head - Price: $0.56 |
| 14 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 14 |
530024365 |
Trigger - Throttle Price: $3.33 |
| 15 |
19-3850 |
DISCONTINUED Price: Call Us |
| 15 |
545008009 |
KIT STARTER SPRING This part replaces 530042067. Price: $5.99 |
| 16 |
530026035 |
Air Baffle Price: $2.99 |
| 17 |
530026048 |
Starter Pulley (Incl. #21), Model XR-50 Type 2, 3 & 4 Price: $9.99 |
| 20 |
530026122 |
Spacer Price: $1.99 |
| 21 |
530015123 |
Washer - Starter Pulley Price: $1.99 |
| 23 |
530626605 |
Nut - Flywheel - 5/16x24" - Fil. Hd. Price: $1.99 |
| 24 |
530023817 |
Spring-Starter Dog This part replaces 530042059. Price: $1.99 |
| 25 |
530015127 |
Washer - Flywheel Price: $1.99 |
| 26 |
530039114 |
Flywheel Assembly (Incl. #24) Price: Call Us |
| 27 |
530024461 |
Trigger Spring Price: $2.99 |
| 28 |
530021036 |
Insulation - Switch Spring Price: $3.33 |
| 29 |
530024407 |
Spring - Kill Switch Price: $1.99 |
| 30 |
530015814 |
Screw-Line Limiter This part replaces 530015367. Price: $1.99 |
| 31 |
502039103 |
High Tension - Lead Assembly (Incl. #17, 18 & 19) Price: $219.99 |
| 32 |
530024435 |
Grommet - Plug Wire Price: $1.99 |
| 33 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 34 |
530024158 |
Lead Wire - Switch Price: $4.99 |
| 35 |
530069181 |
Kit - Ignition Module Price: $3.33 |
| 36 |
530024303 |
Knob - Choke Price: $5.99 |
| 37 |
530069196 |
Kit - Clutch - Washer Price: $3.33 |
| 39 |
530039082 |
High Tension Lead Wire Price: Call Us |
| 40 |
530003934 |
Boot - Spark Plug Price: Call Us |
| 41 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 42 |
530030077 |
Spark Plug - CJ-14 Price: $2.27 |
| 43 |
530010797 |
Coupling and Bearing Assembly Price: $3.33 |
| 44 |
530011641 |
Previous Style Price: $3.33 |
| 44 |
530011778 |
Type 1 & 2 Price: $3.33 |
| 44 |
530026547 |
Type 3 & 4 Price: $3.33 |
| 45 |
530015376 |
Screw - Shroud (Top) - Type 1 & 2 Price: $3.33 |
| 46 |
530093802 |
Bolt - Pinch Clamp - Type 1 & 2 Price: $3.13 |
| 47 |
530015168 |
Screw - Shroud (Bottom) - Type 1 & 2 Price: $1.46 |
| 48 |
530015590 |
Screw - Type 3 & 4 Price: $0.12 |
| 49 |
530015609 |
Bolt - Type 3 & 4 Price: $1.99 |
| 50 |
530015610 |
Nut - Type 3 & 4 Price: $0.99 |
| 51 |
530015163 |
Screw - Type 3 & 4 Price: $1.99 |
| 52 |
530015274 |
Washer - Type 3 & 4 Price: $0.99 |
| 53 |
530026560 |
Clamp - Shroud - Type 3 & 4 Price: $1.99 |
| 530039103 |
HIGH |
TENSION LEAD NLA Price: Call Us 530039103 |
