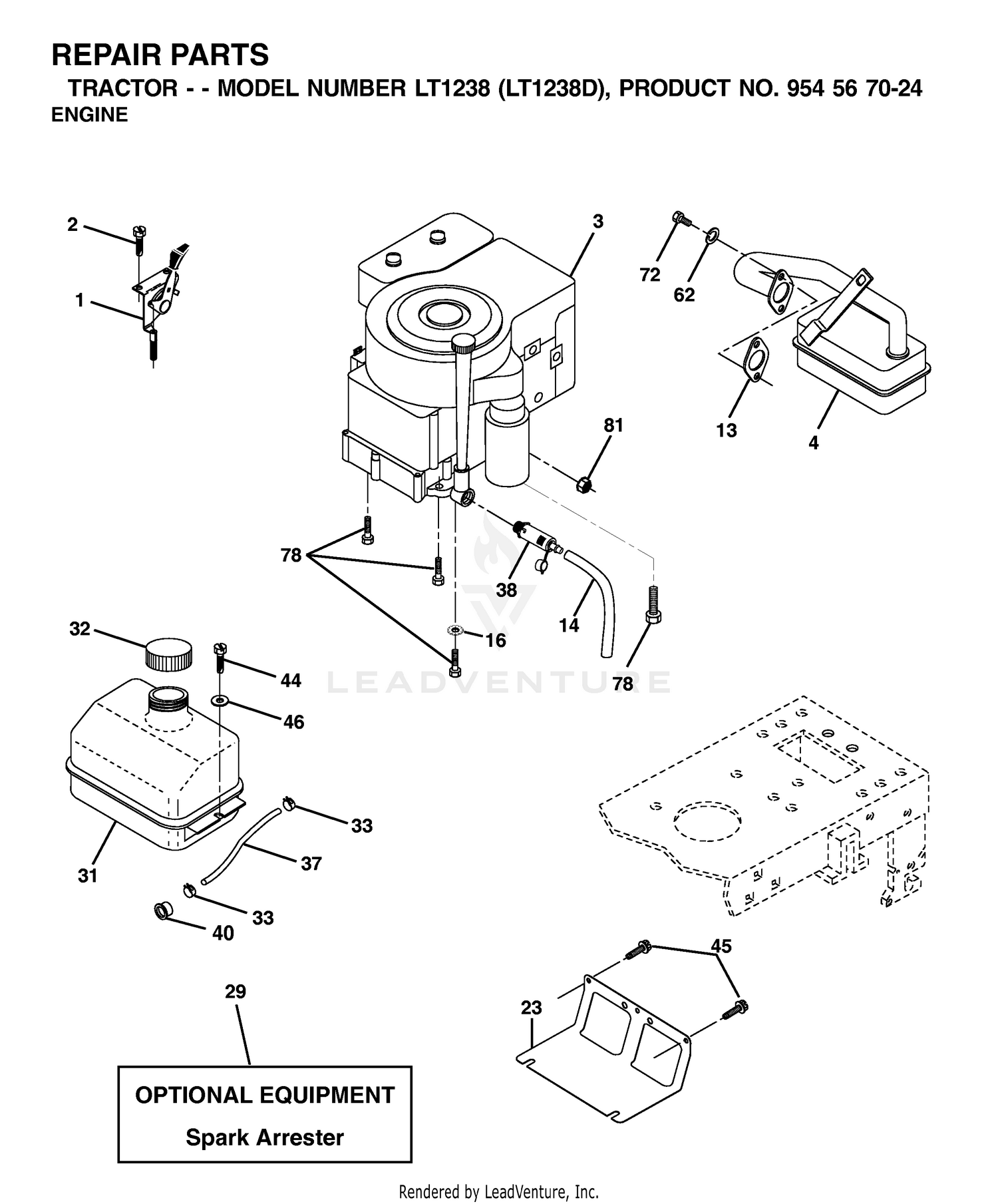

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 1 |
92-0450-03 |
BRACKET-PIN Price: $19.10 |
| 2 |
92-0448 |
PIN-PIVOT Price: $100.36 |
| 3 |
106-5247-03 |
TRACTION PEDAL ASM Price: $244.19 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 4 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 5 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 6 |
80-7730 |
SPACER Price: $1.97 |
| 7 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 8 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 10 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 11 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 12 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 13 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
104-7201 |
NUT-HF Price: $0.69 |
| 16 |
321-9 |
SCREW-HH Price: $0.27 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 18 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 23 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 24 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
