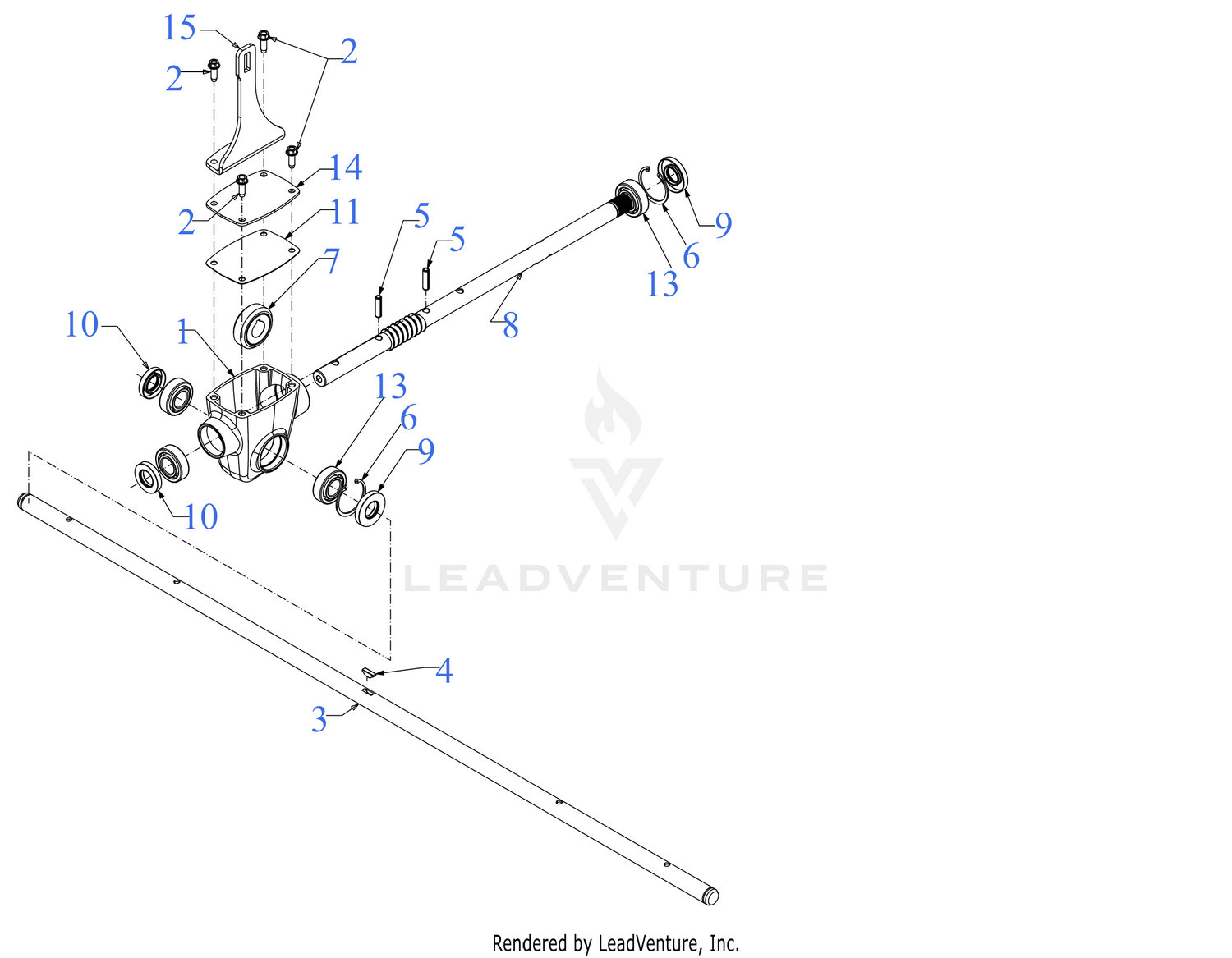

Auger Gearbox
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 919-05029 | AUGER HOUSING GEARBOX Price: $74.51 |
| 2 | 710-0642 | SCREW 1/4-20 x .750 Price: $4.05 |
| 3 | 711-06278 | AUGER AXLE Price: $184.45 |
| 4 | 914-0161 | KEY 3/16 x 5/8 HI-PRO Price: $3.82 |
| 5 | 715-04034 | ROLL PIN Price: $6.01 |
| 6 | 716-05001 | SNAP RING Price: $2.77 |
| 7 | 917-04861 | WORM GEAR 20T Price: $37.82 |
| 8 | 917-05236 | WORM SHAFT Price: $208.45 |
| 9 | 721-04612 | OIL SEAL Price: $4.56 |
| 10 | 721-04613 | OIL SEAL Price: $3.63 |
| 11 | 921-04614A | GEARBOX COVER GASKET Price: $4.64 |
| 13 | 941-05042 | BALL BEARING Price: $10.24 |
| 14 | 783-08281 | GEARBOX COVER Price: $7.44 |
