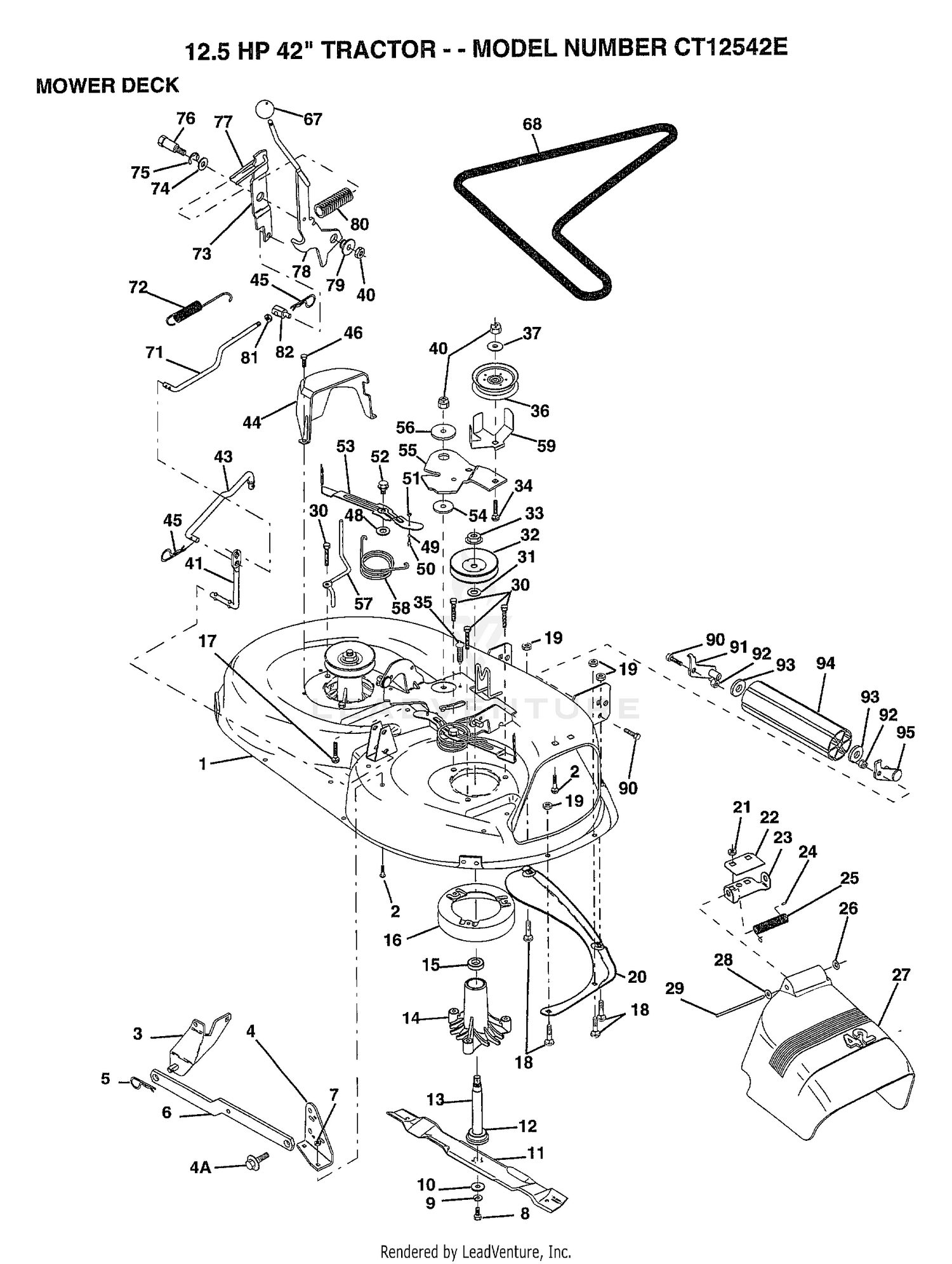

| Ref | Part Number | Description |
|---|
| 1 |
140081 |
SUB= 144393 Price: Call Us |
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 2 |
68-9760 |
DISCONTINUED Price: Call Us |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
21-3600 |
FOAM-SUPPORT, TANK Price: $25.75 |
| 4 |
115-4519 |
FUEL TANK ASM This part replaces 43-4150. Price: $634.24 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4A |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 5 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
32104-96 |
SCREW-HH Price: $5.59 |
| 7 |
37-9550 |
STRAP-TANK, FUEL Price: $46.74 |
| 7 |
73800500 |
NUT Price: Call Us |
| 8 |
62-7650 |
GASKET Price: $4.28 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 11 |
32144-53 |
SCREW-SHWH, THREAD FORMING Price: $3.19 |
| 12 |
105-2563 |
SENDER-FUEL Price: $191.04 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
110-4109 |
HOSE-FUEL This part replaces 104-0076. Price: $11.24 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
55-3572 |
FUEL CAP ASM Price: $15.49 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
22-7810 |
SPACER Price: $16.90 |
| 17 |
321-6 |
SCREW-HH Price: $0.25 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
21-3610 |
FOAM-SUPPORT, TANK Price: $20.11 |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
2412-4 |
CLAMP-R Price: $4.22 |
| 19 |
73800500 |
NUT Price: Call Us |
| 20 |
110-4105 |
HOSE-FUEL This part replaces 27-5360. Price: $11.71 |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 21 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 21 |
73800500 |
NUT Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
23-7270 |
NUT-LUG Price: $10.37 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
32144-67 |
SCREW Price: $2.87 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
32128-20 |
NUT-HF Price: $0.99 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 27 |
86-9600-03 |
AXLE ASM Price: $3,784.17 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
24-9830-01 |
AXLE SUPPORT ASM Price: $83.43 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
3219-14 |
NUT-HEX Price: $0.25 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
323-6 |
SCREW-HH Price: $0.66 |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 32 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
3217-9 |
NUT-HH Price: $0.37 |
| 34 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 35 |
2412-79 |
CLAMP-HOSE Price: $1.63 |
| 36 |
110-5688 |
HOSE-FUEL This part replaces 43-4230. Price: $34.27 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
23-5180 |
DIPSTICK ASM Price: $69.61 |
| 38 |
289-37 |
NIPPLE-PIPE Price: $21.68 |
| 39 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 40 |
73800600 |
NUT Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 57 |
140090 |
KEEPER BELT LH 42 Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 67 |
7803J |
SUB= 106932X Price: Call Us |
| 68 |
140067 |
BELT-V MWR 82.625 Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140334 |
SUB= 154810 Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
128759 |
SUB= 918128759 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 90 |
74760616 |
BOLT Price: Call Us |
| 91 |
132274 |
SUB= 532132274 Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 93 |
19171416 |
WASHER Price: Call Us |
| 94 |
132264 |
SUB= 532132264 Price: Call Us |
| 95 |
132273 |
SUB= 532132273 Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
