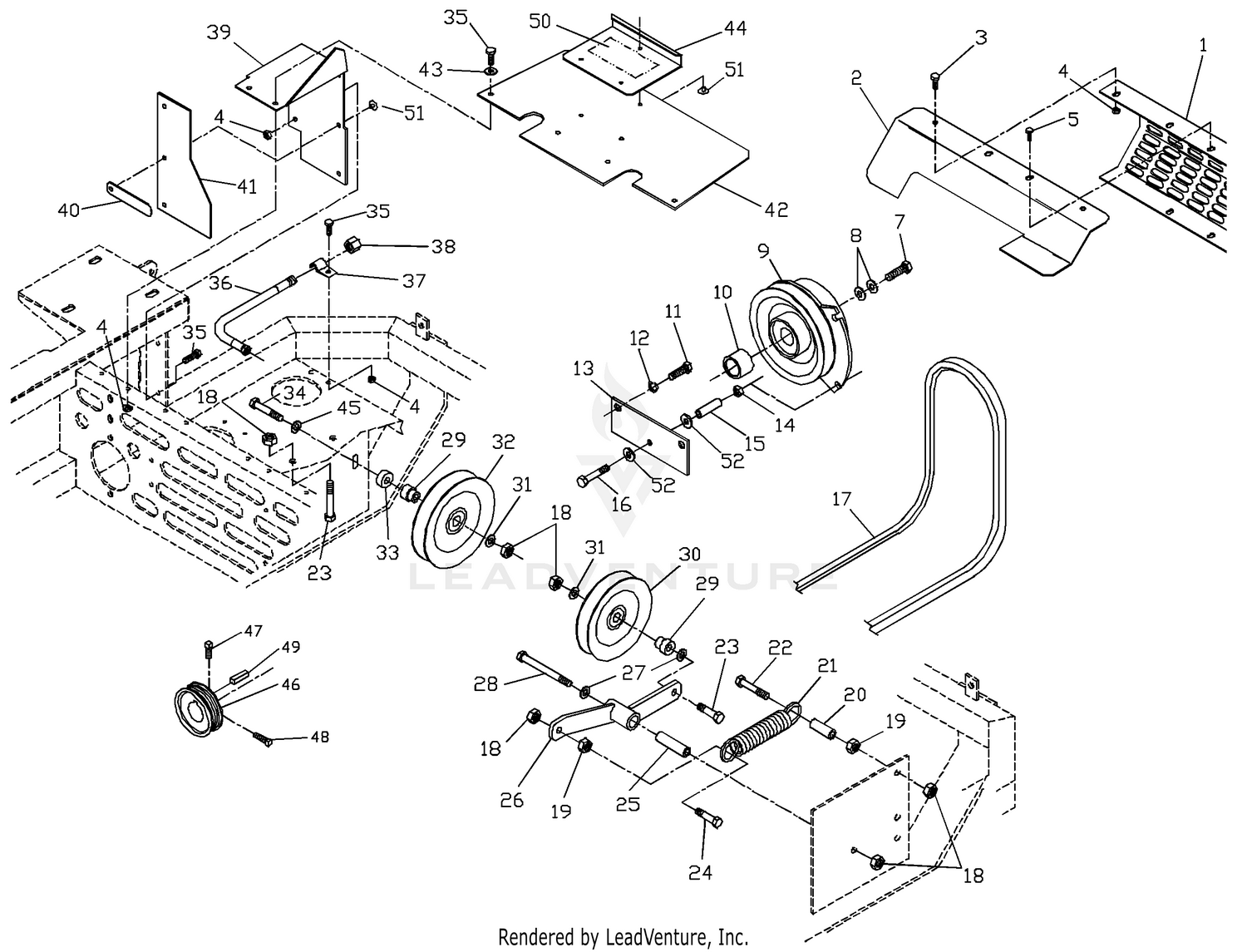

| Ref | Part Number | Description |
|---|
| 1 |
539102830 |
MUFFLER SHIELD Price: $43.99 |
| 1 |
98-7697 |
BOLT Price: $1.08 |
| 2 |
539102491 |
HEAT DEFLECTOR Price: $15.99 |
| 2 |
98-7660 |
WASHER-PLAIN This part replaces 98-7698. Price: $0.28 |
| 3 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 3 |
98-7692 |
BOLT Price: $0.92 |
| 4 |
112-7047 |
STAY-DYNAMO This part replaces 98-9573. Price: $14.95 |
| 4 |
539990761 |
NUT 1/4C CENTER LOCK This part replaces 539990372. Price: $2.99 |
| 5 |
539991101 |
HEX CAP SCREW M6 X 1MM X 10MM Price: $1.92 |
| 5 |
98-9584 |
PULLEY-FAN Price: $89.56 |
| 6 |
98-9360 |
BOLT Price: $2.35 |
| 7 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 7 |
99-7527 |
WASHER-SPRING This part replaces 98-9368. Price: $1.02 |
| 8 |
596581701 |
Washers This part replaces 539102843. Price: $2.99 |
| 8 |
98-9366 |
WASHER-PLAIN Price: $0.28 |
| 9 |
539109580 |
CLUTCH/BRAKE GEN I This part replaces 539102603. Price: $379.99 |
| 9 |
98-9700 |
TERMINAL ASM Price: $3.16 |
| 10 |
539102839 |
SPACER Price: $29.99 |
| 10 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 11 |
596238601 |
Bolts This part replaces 539100143. Price: $2.99 |
| 11 |
99-8363 |
BOLT-FLANGE Price: $1.66 |
| 12 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 12 |
98-9602 |
LOCK COUPLER ASM Price: $17.36 |
| 13 |
539102699 |
CLUTCH STOP PLATE Price: $8.45 |
| 13 |
98-9696 |
COUPLER ASM Price: $6.53 |
| 14 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 14 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 15 |
539100097 |
SPACER Price: $5.99 |
| 15 |
98-9676 |
V-BELT Price: $31.01 |
| 16 |
104-1247 |
PULLEY-FAN DRIVE Price: $208.24 |
| 16 |
539976969 |
BOLT 5/16C X 3 1/4 HEX TAP Price: $0.99 |
| 17 |
539102548 |
BELT, MULE DRIVE Price: $69.99 |
| 18 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 19 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 20 |
539102860 |
SPACER Price: $1.78 |
| 21 |
539102655 |
SPRING Price: $12.99 |
| 22 |
596434201 |
Bolts This part replaces 539990637. Price: $3.99 |
| 23 |
596583901 |
Bolts This part replaces 539990730. Price: $2.99 |
| 24 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 25 |
539101841 |
BUSHING Price: $3.99 |
| 26 |
539102649 |
ARM WELDMENT Price: $84.99 |
| 27 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 28 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 29 |
539102651 |
SHOULDER BUSHING Price: $7.99 |
| 30 |
539102652 |
IDLER PULLEY Price: $44.99 |
| 31 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 32 |
539102657 |
IDLER PULLEY Price: $34.99 |
| 33 |
539102656 |
SPACER Price: $3.99 |
| 34 |
539102612 |
SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99 |
| 35 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 36 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 37 |
539101363 |
CLAMP Price: $2.99 |
| 38 |
539101364 |
DRAIN CAP Price: $5.99 |
| 39 |
539102751 |
ENGINE BAFFLE, LEFT Price: $27.45 |
| 40 |
539102753 |
SHIELD CLIP Price: $3.65 |
| 41 |
539102750 |
HEAT SHIELD Price: $4.80 |
| 42 |
539105941 |
SHIELD LIFT ASM This part replaces 539102840. Price: $74.13 |
| 43 |
597338501 |
Washers This part replaces 539990598. Price: $12.99 |
| 44 |
539102529 |
LIFT SHIELD Price: $18.44 |
| 45 |
539102593 |
WASHER, 3/8 DISC SPRING SPEC Price: $2.99 |
| 46 |
539102438 |
ENGINE PULLEY Price: $45.14 |
| 47 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 48 |
539102749 |
SCREW, HEAD SET 5/16C X 3/4 SQ Price: $0.99 |
| 49 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 50 |
539100361 |
DECAL, DANGER Price: $2.31 |
| 51 |
539102744 |
RIVET E/16 X 1/4 LG FLG Price: $2.99 |
