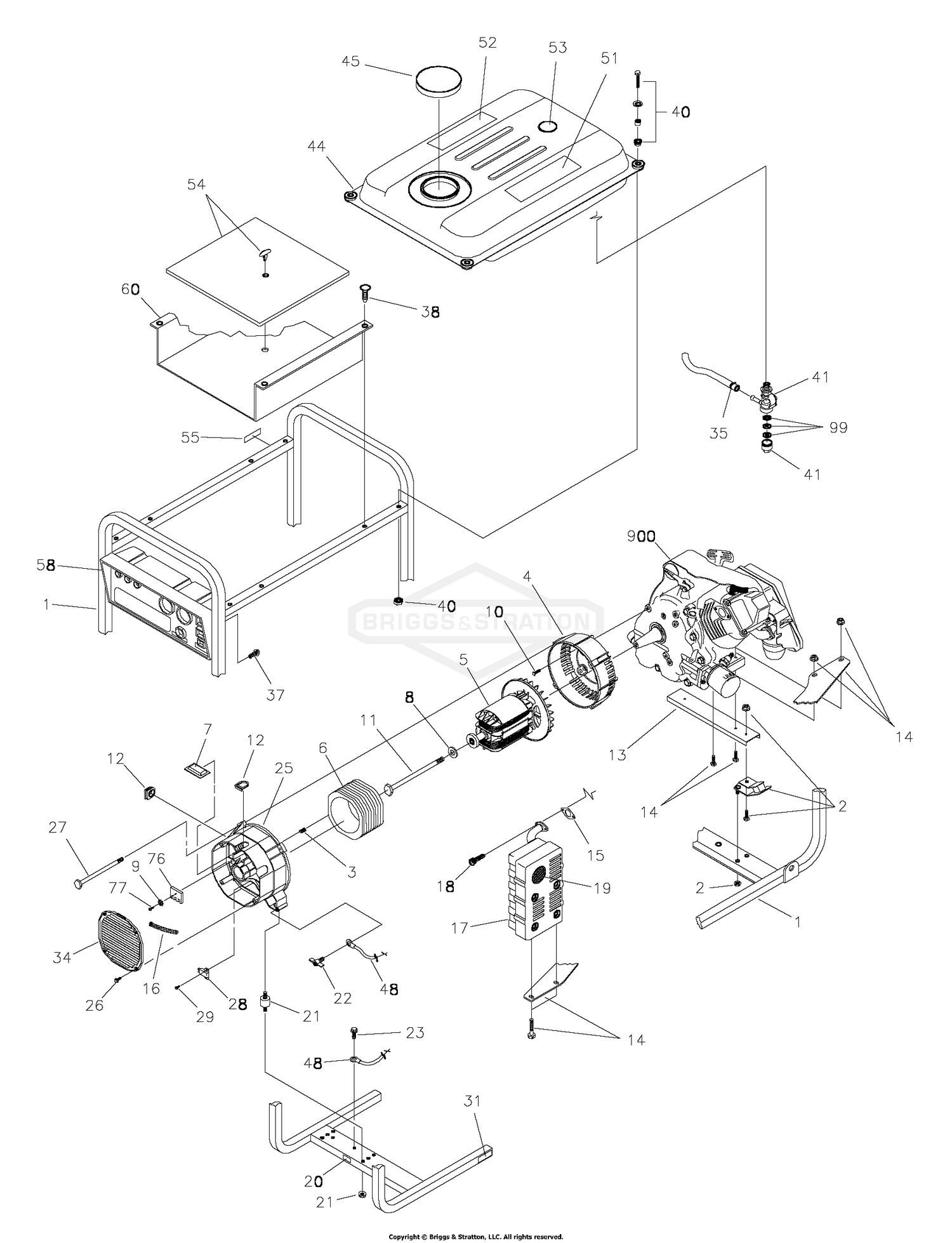

| Ref | Part Number | Description |
|---|
| 1 |
M197027GS |
CRADLE Price: $299.99 |
| 2 |
194552GS |
KIT,Vibration Mount Price: $12.09 |
| 3 |
81917GS |
PIN, Roll M4 x 10 Price: $2.79 |
| 4 |
66365GS |
HOUSING, Engine Adapter Price: $60.98 |
| 5 |
84141JGS |
ASSY, Rotor Price: $224.69 |
| 6 |
187105AGS |
ASSY, Stator This part replaces 83540AGS. Price: $320.35 |
| 7 |
84132GS |
ASSY, Drive Module Pwr Reg Price: $31.80 |
| 8 |
96796GS |
WASHER, M8 Flat Price: $2.79 |
| 11 |
47480GS |
HHCS, 5/16-24 x 7" Lg. Price: $9.51 |
| 12 |
67022GS |
GROMMET, Rubber Price: $2.55 |
| 13 |
M84021GS |
SUPPORT, Engine, Red Price: $11.20 |
| 14 |
194578GS |
KIT, Muffler Bracket w/ Hardware Price: $20.99 |
| 15 |
89476GS |
GASKET, Exhaust Price: $1.65 |
| 16 |
84409GS |
SLEEVING, Flexo, HW 1/2" x 10" Price: $3.30 |
| 17 |
83071GS |
MUFFLER Price: $82.05 |
| 19 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 20 |
B4986GS |
DECAL, Ground Price: $2.75 |
| 21 |
194153GS |
MOUNT-VIBRATION Price: $10.54 |
| 22 |
86494GS |
SCREW,Wing M6 - 1.0 x 16 Price: $2.51 |
| 23 |
313085GS |
SCREW This part replaces 86292GS. Price: $3.35 |
| 25 |
SRV66825DGS |
CARRIER, Rear Bearing Price: $120.36 |
| 26 |
74908GS |
TAPTITE, M5-0.8 x 10 Lg. Price: $2.69 |
| 27 |
86308GS |
BOLT, M6 - 1.0 x 115 Price: $2.60 |
| 28 |
66386GS |
ASSY, Brush Holder Price: $21.52 |
| 29 |
49815GS |
HHCS, M5-0.8 X 16 This part replaces 66849GS. Price: $2.96 |
| 31 |
196830GS |
DECAL, Caution Hot Muffler Price: $13.89 |
| 34 |
B4871GS |
COVER, Bearing Carrier Price: $4.15 |
| 35 |
189568GS |
CLAMP, Hose Price: $3.05 |
| 37 |
B2153GS |
HHCS, 12 - 14 x 7/8 Self Drill Price: $3.95 |
| 38 |
B1797GS |
CLIP,Tree Price: $3.58 |
| 40 |
193661GS |
KIT, Fuel Tank Hardware Price: $8.09 |
| 41 |
310573GS |
VALVE-FUEL This part replaces 189133GS. Price: $9.40 |
| 45 |
189135GS |
CAP,Tank Fuel,Vented Price: $17.23 |
| 48 |
195373GS |
WIRE, Ground Price: $1.85 |
| 51 |
194799GS |
DECAL, Danger Price: $10.48 |
| 52 |
93826GS |
DECAL, Operating Instructions Price: $1.85 |
| 53 |
189136GS |
GAUGE, Fuel Price: $15.65 |
| 54 |
194527GS |
KIT, Insulation w/ Clip Price: $30.49 |
| 55 |
191545GS |
DECAL, Fuel Shut Off Price: $7.29 |
| 60 |
J84042GS |
SHIELD, Heat Price: $75.99 |
| 76 |
65795GS |
RECTIFIER, Battery Charge Price: $10.80 |
| 77 |
66849AGS |
TAPTITE, M5 0.8 x 20 Lg. Price: $4.02 |
| 99 |
310574GS |
VALVE, Fuel This part replaces 189759GS. Price: $9.40 |
| 100522GS |
PLUG-120/240V |
TL20A This part replaces 43483GS. Price: $23.34 100522GS |
