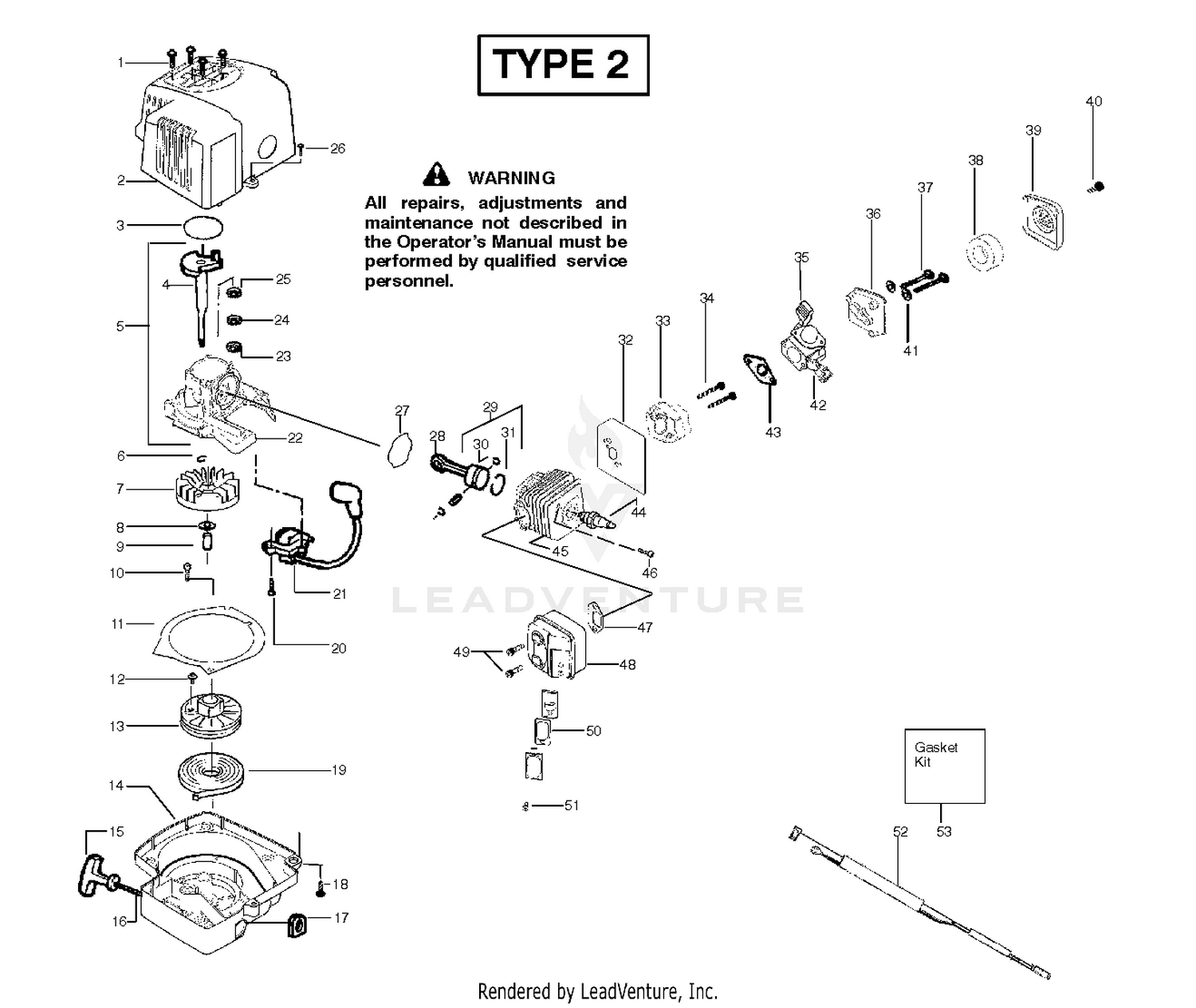

ENGINE
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016386 | SCREW Price: $5.99 |
| 2 | 530058799 | ASSY SHROUD/HEAT SHIELD Price: $14.99 |
| 4 | 545145801 | CRANKSHAFT ASSY This part replaces 530012571. Price: $17.99 |
| 6 | 530015941 | RETAINING RING Price: $1.99 |
| 7 | 545221701 | FLYWHEEL ASSY This part replaces 530071487. Price: $8.99 |
| 8 | 530015828 | WASHER FLAT Price: $1.99 |
| 9 | 530055729 | SPACER Price: $7.99 |
| 10 | 530015496 | SCREW-10-16 X 1/2 HI-LO Price: $1.99 |
| 11 | 530055681 | PLATE-BAFFLE Price: $2.99 |
| 12 | 530016392 | SCREW SEMS TOOTHED WASHER Price: $1.99 |
| 14 | 530058801 | ASSY FAN HSG W/ EYELET Price: $7.99 |
| 15 | 530027569 | HANDLE-STARTER Price: $1.99 |
| 16 | 530069232 | KIT-ROPE Price: $3.99 |
| 17 | 530019182 | GROMMET Price: $1.99 |
| 19 | 545008010 | STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 20 | 530016357 | SCREW Price: $1.99 |
| 21 | 530054137 | IGNITION MODULE Price: $32.99 |
| 23 | 530055728 | OUTER BEARING Price: $6.99 |
| 24 | 530019264 | SEAL Price: $2.99 |
| 25 | 530032125 | BEARING Price: $11.99 |
| 26 | 530015934 | SCREW Price: $1.99 |
| 28 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 30 | 530015162 | WRIST PIN RET. Price: $1.99 |
| 31 | 545154009 | PISTON RING This part replaces 530012472. Price: $1.99 |
| 33 | 530057634 | ADAPTER Price: $8.99 |
| 34 | 530016441 | SCREW Price: $1.99 |
| 35 | 530071718 | CHOKE CONTROL Price: $8.99 |
| 36 | 530055680 | AIR BOX Price: $2.99 |
| 37 | 530016429 | SCREW Price: $1.99 |
| 38 | 530047932 | AIR FILTER FOAM Price: $1.99 |
| 39 | 530055679 | AIR FILTER COVER Price: $1.99 |
| 40 | 530015957 | SCREW Price: $1.99 |
| 41 | 530015123 | Washer This part replaces 530015158. Price: $1.99 |
| 43 | 530071486 | GASKET KIT Price: $5.99 |
| 45 | 530012553 | CYLINDER Price: $14.99 |
| 46 | 530015953 | SCREW Price: $1.99 |
| 49 | 530016338 | SCREW MUFFLER Price: $1.99 |
| 50 | 530071544 | PARTITION Price: $6.99 |
| 52 | 530057728 | LEAD WIRE Price: $6.99 |
