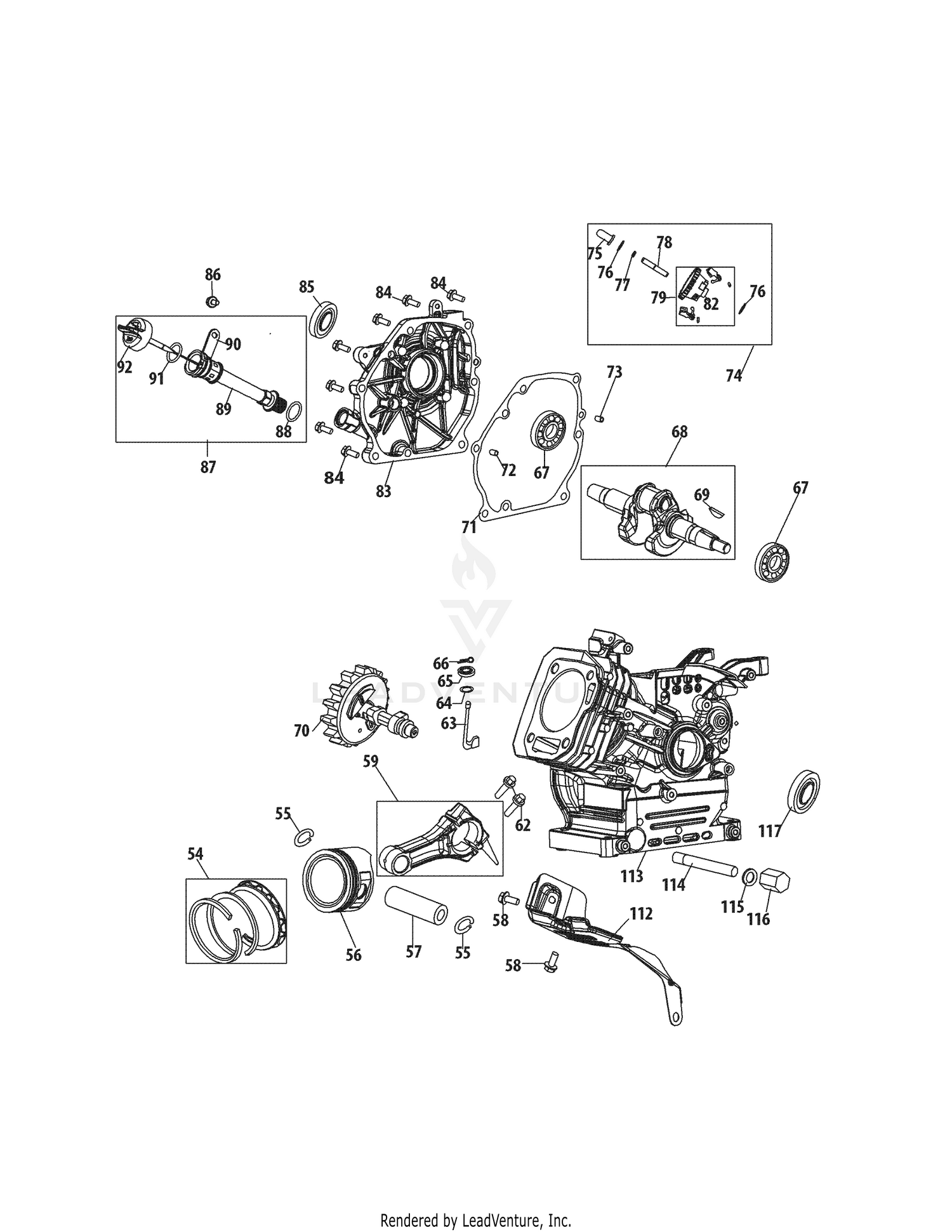

| Ref | Part Number | Description |
|---|
| 54 |
751P12111A |
PISTON RING SET This part replaces 951-12111. Price: $5.82 |
| 55 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 56 |
951-12007 |
Piston Price: $31.34 |
| 57 |
951-11633 |
PISTON PIN Price: $6.66 |
| 58 |
710-04915 |
Bolt, M6×12 Price: $3.82 |
| 59 |
751P11573A |
CONNECTING ROD This part replaces 951-11573. Price: $8.87 |
| 62 |
710-05116 |
Connecting Rod Bolt Price: $4.25 |
| 63 |
951-14053 |
Governor Gear Shaft Price: $13.94 |
| 64 |
736-04461 |
O-Ring, 5.2×1.9 Price: $3.50 |
| 65 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 66 |
714-04078 |
Cotter Pin Price: $3.66 |
| 67 |
951-11369 |
Bearing, 6205 Price: $30.42 |
| 68 |
951-14147 |
Crankshaft Price: $94.97 |
| 69 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 70 |
951-11575A |
CAMSHAFT ASSEMBLY Price: $57.92 |
| 71 |
751P11371B |
CRANKCASE GASKET This part replaces 951-11371. Price: $3.07 |
| 72 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 73 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 74 |
751P11576A |
GOVERNOR GEAR This part replaces 951-11576. Price: $3.00 |
| 75 |
931-09595 |
Governor Cup Price: $4.85 |
| 76 |
936-05038 |
Washer, 6.2×0.6×15 Price: $4.07 |
| 77 |
916-05003 |
Retaining Ring Price: $4.89 |
| 78 |
911-06137 |
Governor Shaft Price: $6.03 |
| 79 |
917-05007 |
Governor Gear Price: $11.42 |
| 82 |
917-05152 |
Governor Gear Price: $10.22 |
| 83 |
951-14875 |
Crankcase Cover Price: $73.89 |
| 84 |
710-04932 |
Bolt, M8×32 Price: $3.66 |
| 85 |
751P11368A |
OIL SEAL This part replaces 951-11368. Price: $2.70 |
| 86 |
910-06278 |
Bolt, M6×16 Price: $3.86 |
| 87 |
931-05255 |
Dipstick Price: $20.07 |
| 88 |
951-11381 |
O-Ring, 15.5×1.5 Price: $4.59 |
| 89 |
951-14876 |
DIPSTICK TUBE Not Available Price: |
| 90 |
951-14878 |
CLAMP Not Available Price: |
| 91 |
921-04663A |
O-RING This part replaces 921-04663. Price: $5.05 |
| 92 |
951-14879 |
Dipstick Price: $8.02 |
| 112 |
951-11113 |
Shroud Price: $8.11 |
| 113 |
751P14149A |
CRANKCASE This part replaces 951-14149. Price: $76.97 |
| 114 |
951-11350A |
OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 115 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 116 |
710-04906 |
Drain Bolt Price: $5.86 |
