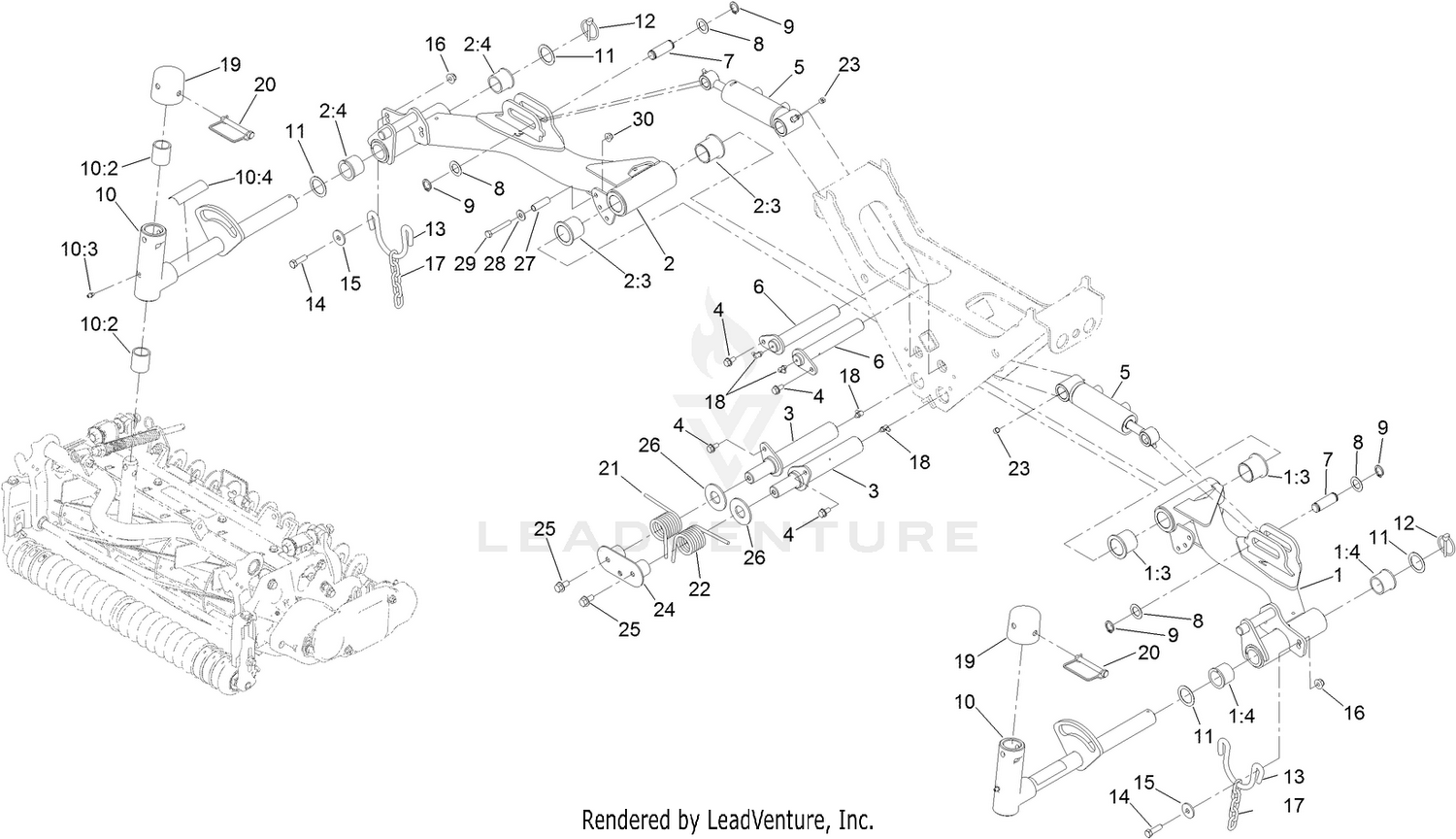

| Ref | Part Number | Description |
|---|
| 1 |
127-8489 |
NO. 2 LIFT ARM ASM Price: $503.96 |
| 2 |
127-8491 |
NO. 3 LIFT ARM ASM Price: $528.26 |
| 3 |
127-8504 |
PIN ASM Price: $116.20 |
| 4 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 5 |
163-3530 |
CYLINDER-HYDRAULIC This part replaces 119-6988. Price: $515.30 |
| 6 |
120-2129 |
PIN ASM Price: $64.74 |
| 7 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 8 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 9 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 10 |
138-1248 |
PIVOT YOKE ASM This part replaces 107-2052. Price: $429.41 |
| 11 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 12 |
92-1298 |
PIN-LYNCH Price: $2.27 |
| 13 |
110-0922 |
HOOP-CHAIN Price: $15.10 |
| 14 |
323-7 |
SCREW-HH Price: $0.65 |
| 15 |
63-8410 |
WASHER Price: $1.76 |
| 16 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 17 |
84-2451 |
CHAIN-STRAIGHT, 5 LINK Price: $9.25 |
| 18 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 19 |
107-4027 |
CAP Price: $12.59 |
| 20 |
107-7400 |
PIN-LYNCH Price: $9.56 |
| 21 |
127-8580 |
SPRING-TORSION, RH Price: $17.07 |
| 22 |
127-8581 |
SPRING-TORSION, LH Price: $17.07 |
| 23 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 24 |
127-8583-03 |
CATCH ASM Price: $62.19 |
| 25 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 26 |
104-6126 |
WASHER-FLAT Price: $2.72 |
| 27 |
107-0285 |
SPACER Price: $5.63 |
| 28 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 29 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
