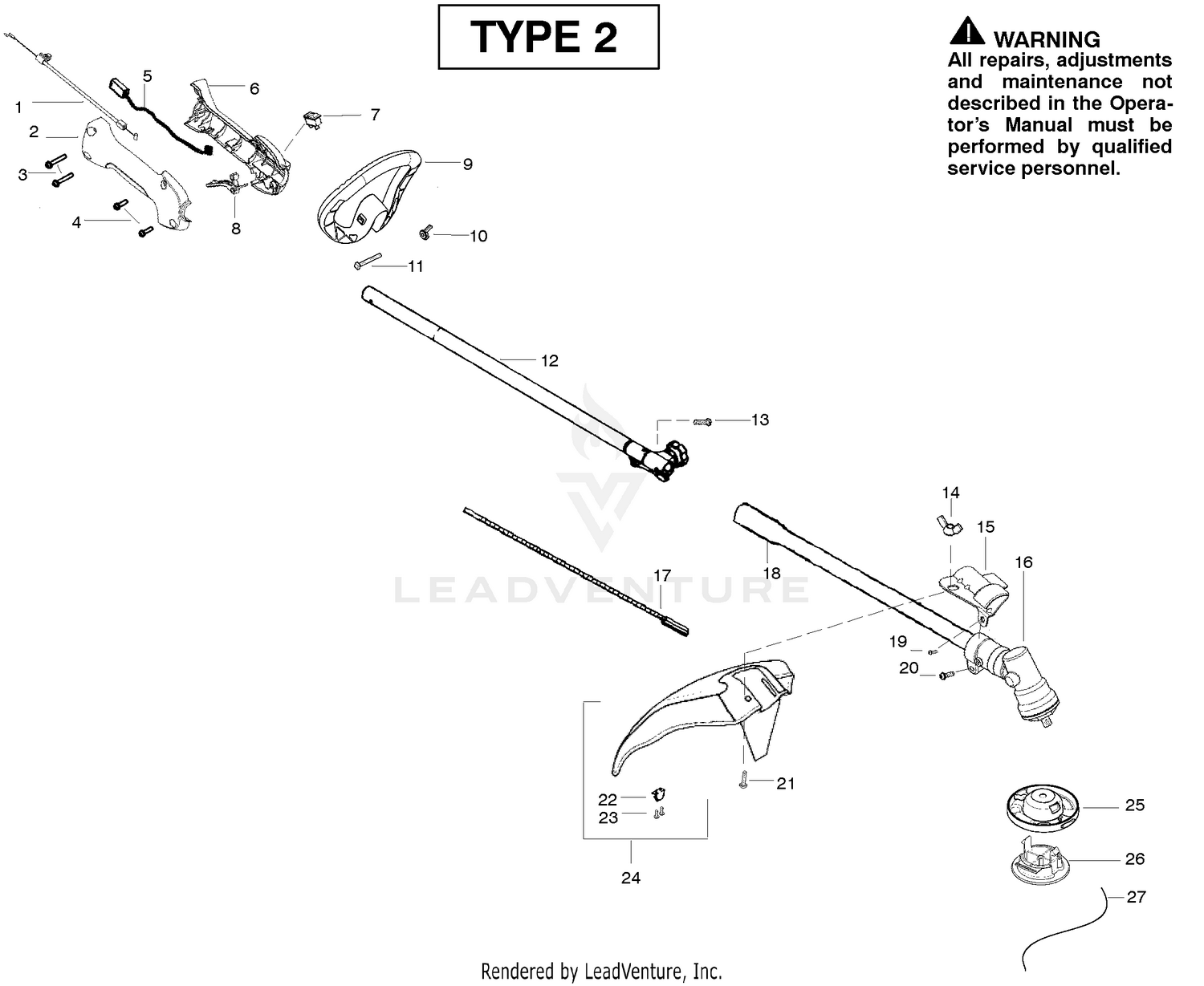

| Ref | Part Number | Description |
|---|
| 1 |
32-8750 |
DISCONTINUED Price: Call Us |
| 2 |
530057541 |
Hsg.-Throttle (RH) Price: $7.99 |
| 2 |
530059759 |
Assy-Throttle Cable Price: $9.99 |
| 2 |
72-9420 |
VENT This part replaces 21-8230. Price: $6.85 |
| 3 |
530016406 |
Screw Price: $1.99 |
| 4 |
530015814 |
Screw Price: $1.99 |
| 5 |
3219-2 |
NUT-HEX Price: $0.37 |
| 5 |
530054183 |
Assy.-Wire Price: $4.99 |
| 6 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 6 |
530059760 |
Hsg. Throttle (LH) Price: $6.99 |
| 7 |
21-8280 |
DISCONTINUED Price: Call Us |
| 7 |
545030601 |
Kit-Switch Price: $4.99 |
| 8 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 8 |
530049107 |
TRIGGER RED This part replaces 545077601. Price: $1.99 |
| 10 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 10 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 11 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 11 |
530015786 |
Bolt Price: $1.99 |
| 12 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 13 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 13 |
530016344 |
Screw Price: $1.99 |
| 14 |
28-0640 |
DISCONTINUED This part replaces 21-7740. Price: Call Us |
| 14 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 15 |
21-8080 |
DISCONTINUED Price: Call Us |
| 15 |
545150701 |
Bracket-Shield Price: $2.99 |
| 16 |
530096099 |
Gearbox Price: $32.99 |
| 16 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 17 |
530096218 |
Flexshaft-lower Price: $6.99 |
| 17 |
86-7230 |
GEAR-INPUT, TRANSMISSION This part replaces 21-8150. Price: $610.12 |
| 18 |
21-7820 |
DISCONTINUED Price: Call Us |
| 18 |
530071789 |
Kit-Lower Shaft Price: $17.99 |
| 19 |
21-8030 |
DISCONTINUED Price: Call Us |
| 19 |
530016014 |
Screw Price: $1.99 |
| 20 |
21-8040 |
DISCONTINUED Price: Call Us |
| 20 |
530015775 |
Screw Price: $1.99 |
| 21 |
21-8050 |
BRG SHIM .010 Price: $6.29 |
| 21 |
530015820 |
Bolt Price: $1.99 |
| 22 |
21-8060 |
DISCONTINUED Price: Call Us |
| 22 |
530052286 |
Limiter-Line Price: $1.54 |
| 23 |
27-6840 |
DISCONTINUED Price: Call Us |
| 23 |
530015814 |
Screw Price: $1.99 |
| 24 |
99-5691 |
SCREW W/WASHER This part replaces 28-0660. Price: $7.18 |
| 25 |
254-90 |
BEARING-CUP Price: $11.29 |
| 25 |
545053902 |
Assy - Fixed Line Head This part replaces 545049401. Price: $22.99 |
| 26 |
21-8010 |
BRG CONE Price: $30.15 |
| 26 |
545049501 |
Cap - Fixed Line Price: $5.99 |
| 27 |
32151-83 |
RING-SNAP This part replaces 32120-32. Price: $0.34 |
| 27 |
952711635 |
Accy - Line (12 pcs) Price: $6.95 |
| 28 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 29 |
21-7870 |
DISCONTINUED Price: Call Us |
| 30 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 31 |
38-5500 |
DISCONTINUED Price: Call Us |
| 32 |
21-8070 |
DISCONTINUED Price: Call Us |
| 33 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 34 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 35 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 36 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 37 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 38 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 39 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 40 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 41 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 42 |
21-8180 |
BEARING ASM Price: $65.11 |
| 43 |
32-8810 |
DISCONTINUED Price: Call Us |
| 44 |
27-6850 |
RH AXLE SHAFT Price: $924.90 |
| 45 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 46 |
32152-5 |
NUT-HEX Price: $0.54 |
| 47 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 48 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 49 |
36-5070 |
DISCONTINUED Price: Call Us |
| 50 |
31-7830 |
DISCONTINUED Price: Call Us |
| 51 |
281-2 |
PLUG-PIPE, SQH Price: $2.09 |
| 52 |
2812-10 |
DISCONTINUED Price: Call Us |
