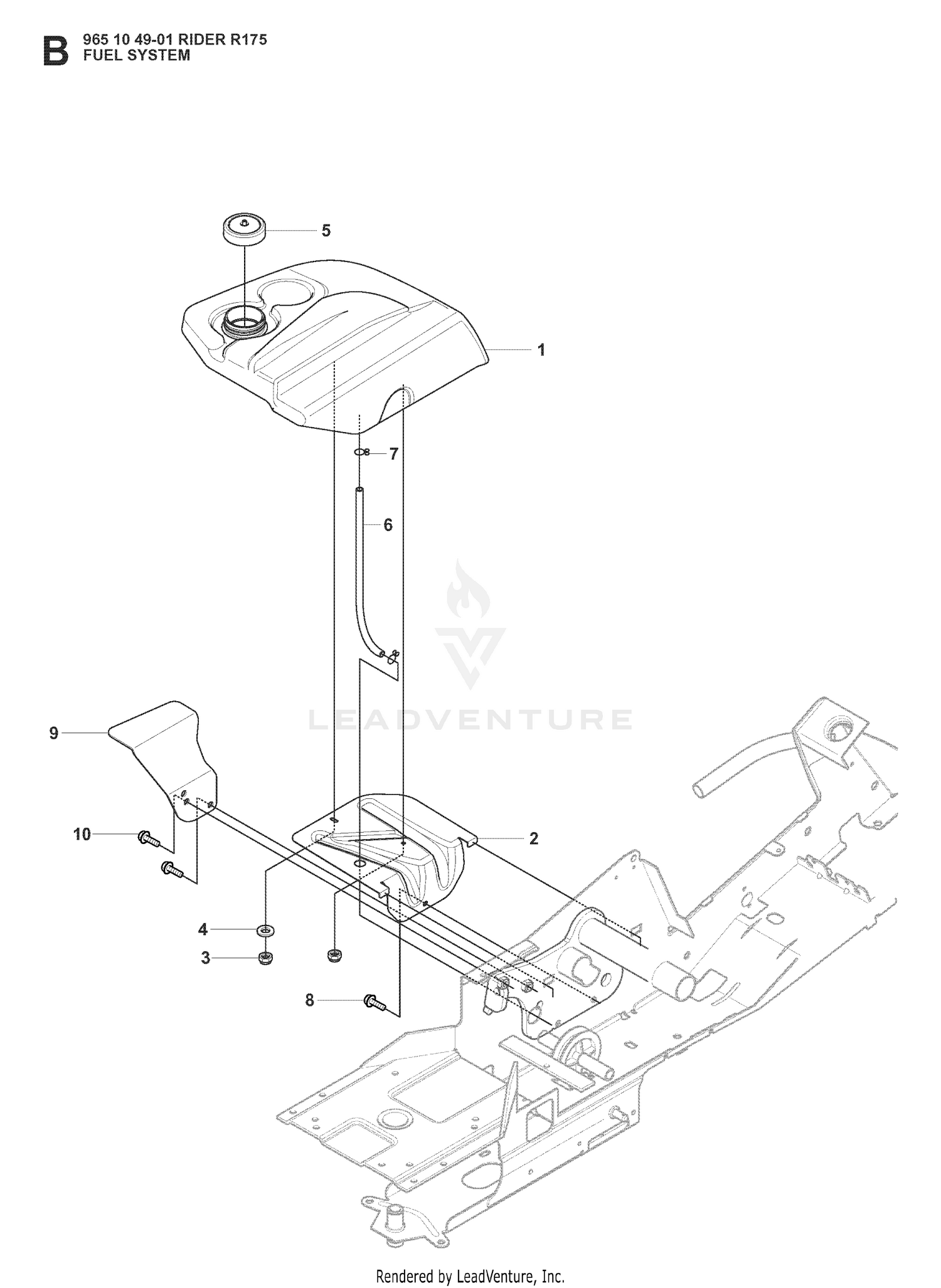

FUEL SYSTEM
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535501301 | FUEL TANK Price: $61.99 |
| 1 | 95-7522 | AXLE Price: $377.20 |
| 2 | 544329301 | BRACKET Price: $44.99 |
| 2 | 99-7564 | SEAL-OIL Price: $25.36 |
| 3 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 3 | 95-7544 | CLIP Price: $4.04 |
| 4 | 734181251 | WASHER This part replaces 734115601. Price: $0.99 |
| 4 | 95-7523 | SPACER Price: $26.89 |
| 5 | 506673301 | FUEL CAP Price: $27.99 |
| 5 | 99-7555 | SHIM 0.3 Price: $3.29 |
| 5 | 99-7556 | SHIM 0.2 Price: $3.29 |
| 5 | 99-7557 | SHIM 0.5 Price: $3.37 |
| 6 | 506946707 | Price: $15.94 |
| 6 | 95-7524 | GEAR-BEVEL, 29 TOOTH Price: $222.95 |
| 7 | 99-7534 | BEARING-BALL Price: $65.44 |
| 8 | 725236461 | SCREW Price: $2.99 |
| 8 | 95-7521 | COVER-AXLE Price: $107.87 |
| 9 | 106-1071 | O-RING Price: $18.43 |
| 9 | 501020301 | SUPPORT Price: $26.92 |
| 10 | 725249371 | Screw M10x25 Price: $1.82 |
| 10 | 93-7775 | BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 | 99-7539 | CLIP Price: $11.07 |
| 12 | 104-2374 | BOLT This part replaces 99-7596. Price: $6.33 |
