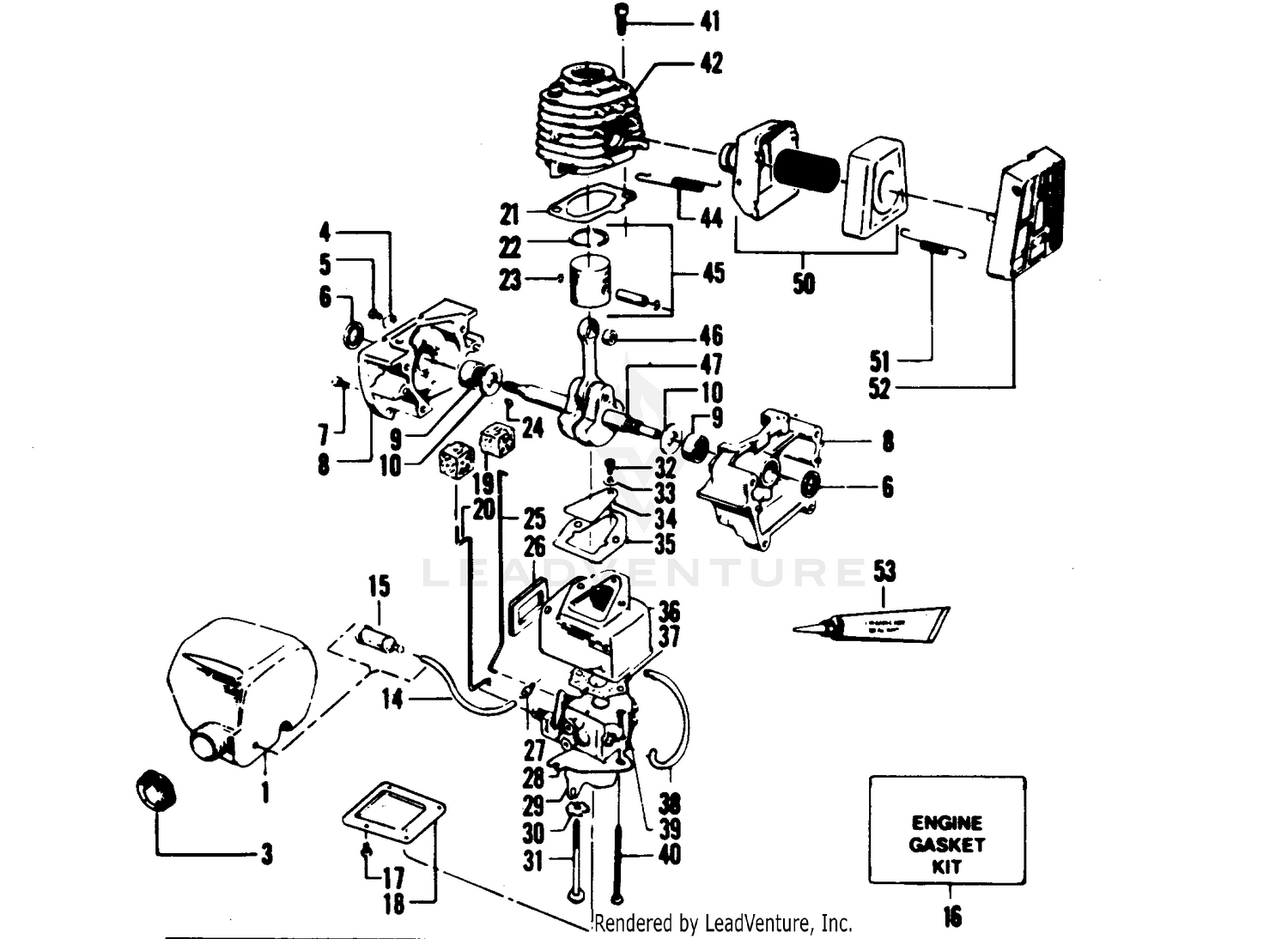

| Ref | Part Number | Description |
|---|
| 1 |
3296-7 |
NUT-LOCK Price: $0.34 |
| 1 |
530010776 |
Fuel Tank Ass'y. (Inc.3, 14, 15 & 27) Price: $3.33 |
| 2 |
19-6810 |
DISCONTINUED Price: Call Us |
| 3 |
37-8640 |
DISCONTINUED Price: Call Us |
| 3 |
530014347 |
Assy-Fuel Cap This part replaces 530010729. Price: $4.99 |
| 4 |
24-8660 |
DISCONTINUED Price: Call Us |
| 4 |
530024651 |
Clamp-Choke Wire Price: $3.33 |
| 5 |
19-6820 |
SPINDLE NUT Price: $76.87 |
| 5 |
530015004 |
Screw-8-32x5/16-Pan Hd. Choke Rod Clamp Price: $1.99 |
| 6 |
19-6840 |
DISCONTINUED Price: Call Us |
| 7 |
38-1870 |
DISCONTINUED Price: Call Us |
| 7 |
530015369 |
Screw-Crankcase Price: $0.04 |
| 8 |
321-36 |
SCREW-HH Price: $1.83 |
| 8 |
530010757 |
Crankcase Assembly (Inc.6, 9 & Qty. 4 of #7) Price: Call Us |
| 9 |
76-2510 |
DISCONTINUED This part replaces 37-7580. Price: Call Us |
| 10 |
18-4650 |
RETAINING RING Price: $3.51 |
| 10 |
530015351 |
Washer-Thrust-Crankcase Price: $3.99 |
| 11 |
18-8700 |
DISCONTINUED This part replaces 18-4660. Price: Call Us |
| 12 |
18-4720 |
DISCONTINUED Price: Call Us |
| 13 |
18-4730 |
DISCONTINUED Price: Call Us |
| 14 |
18-4710 |
DISC-OBTAIN LOCALLY Price: Call Us |
| 14 |
530069247 |
Line Kit Price: $3.99 |
| 15 |
18-4700 |
DISCONTINUED Price: Call Us |
| 15 |
530095646 |
Assy-Fuel Pickup This part replaces 530010897. Price: $2.99 |
| 16 |
3210-8 |
SCREW-HH Price: $1.02 |
| 16 |
530069219 |
Kit-Engine Gasket Price: $11.54 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
530015235 |
Screw-8-18x9/16"-Pan Hd.-Carburetor Case Cover Price: Call Us |
| 18 |
18-4680 |
DISCONTINUED Price: Call Us |
| 18 |
530026029 |
Cover-Carburetor Case Price: $3.99 |
| 19 |
36-9400 |
DISCONTINUED Price: Call Us |
| 20 |
18-4690 |
DISCONTINUED Price: Call Us |
| 20 |
530026236 |
Choke Wire Price: $1.99 |
| 21 |
18-8700 |
DISCONTINUED This part replaces 18-4670. Price: Call Us |
| 22 |
214-229 |
U-BOLT Price: $24.17 |
| 22 |
530027369 |
Ring-Piston Price: $4.99 |
| 23 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 23 |
530015162 |
Retainer-Wrist Pin Price: $1.99 |
| 24 |
3296-6 |
NUT-LOCK This part replaces 32146-6. Price: $1.49 |
| 24 |
530015126 |
Key-Flywheel Price: $1.99 |
| 25 |
18-9360 |
DISCONTINUED Price: Call Us |
| 25 |
530024902 |
Throttle Wire Price: $3.33 |
| 26 |
18-9370 |
DISCONTINUED Price: Call Us |
| 27 |
19-6700 |
DISCONTINUED Price: Call Us |
| 27 |
530026981 |
Fuel Line Fitting Price: $1.99 |
| 28 |
18-9390 |
DISCONTINUED Price: Call Us |
| 28 |
530026237 |
Choke Wire Guide Plate Price: $3.33 |
| 29 |
530024558 |
Choke Shutter Price: $2.99 |
| 30 |
37-8570 |
DISCONTINUED Price: Call Us |
| 30 |
530015254 |
Washer-Wave Price: $1.99 |
| 31 |
37-8560 |
DISCONTINUED Price: Call Us |
| 31 |
530015404 |
Screw-10-24x2-1/8"-Fil. Hd.-Carburetor Shoulder Price: $2.99 |
| 32 |
37-7570 |
DISCONTINUED Price: Call Us |
| 32 |
530015241 |
Screw-6-19-5/16"-Pan Hd.-Reed Valve Price: $1.99 |
| 33 |
530023367 |
Washer-Reed Valve Screw Price: Call Us |
| 34 |
37-8550 |
DISCONTINUED Price: Call Us |
| 34 |
530024438 |
Reed Valve Price: Call Us |
| 35 |
37-8540 |
DISCONTINUED Price: Call Us |
| 36 |
37-8520 |
DISCONTINUED This part replaces 37-8530. Price: Call Us |
| 36 |
530024409 |
Carburetor Housing Price: $9.99 |
| 38 |
530069238 |
Line Kit Price: $3.33 |
| 39 |
530035183 |
Carburetor Price: $65.89 |
| 40 |
530015379 |
Screw-10-24x1-7/8"-Fil. Hd.-Carburetor Price: $2.99 |
| 41 |
19-6830 |
DISCONTINUED Price: Call Us |
| 41 |
530015239 |
Screw-1/4-20x3/4"-Hex Shocket Hd.-Cylinder Price: $1.99 |
| 42 |
3296-19 |
NUT-HEX Price: $0.65 |
| 42 |
530012190 |
Cylinder Price: $3.33 |
| 43 |
38-1200 |
DISCONTINUED Price: Call Us |
| 44 |
18-9340 |
DISCONTINUED Price: Call Us |
| 44 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 45 |
37-8610 |
DISCONTINUED Price: Call Us |
| 45 |
530069240 |
Piston Kit (Incl.#22, 23 & Pin) Price: Call Us |
| 46 |
37-8590 |
DIFF BRG SHIM KIT Price: $170.16 |
| 46 |
530032092 |
Bearing-Wrist Pin Price: $6.99 |
| 47 |
19-6630 |
DISCONTINUED Price: Call Us |
| 47 |
530010844 |
Crankshaft & Rod Assembly (Inc.46) Price: $3.33 |
| 49 |
37-8580 |
DISCONTINUED Price: Call Us |
| 50 |
2811-8 |
DISCONTINUED Price: Call Us |
| 50 |
530069243 |
Muffler Ass'y. Price: $3.33 |
| 51 |
19-7090 |
DISCONTINUED Price: Call Us |
| 51 |
530024932 |
Spring-Muffler Guard Price: $3.33 |
| 52 |
530024855 |
Guard-Muffler Price: $5.99 |
| 53 |
18-9200 |
DISCONTINUED Price: Call Us |
| 54 |
325-9 |
SCREW-HH This part replaces 18-9540. Price: $1.87 |
| 57 |
3296-42 |
NUT-LOCK, NI This part replaces 32146-17. Price: $0.28 |
| 58 |
253-128 |
OIL SEAL Price: $125.89 |
| 59 |
254-98 |
DISCONTINUED Price: Call Us |
| 60 |
254-100 |
BRG CUP Price: $108.78 |
| 61 |
37-8490 |
DISCONTINUED Price: Call Us |
| 62 |
242-67 |
DISCONTINUED Price: Call Us |
| 63 |
37-8500 |
DISCONTINUED Price: Call Us |
| 64 |
242-68 |
DISCONTINUED Price: Call Us |
| 65 |
254-99 |
DISCONTINUED Price: Call Us |
| 66 |
254-101 |
BRG CONE Price: $106.80 |
