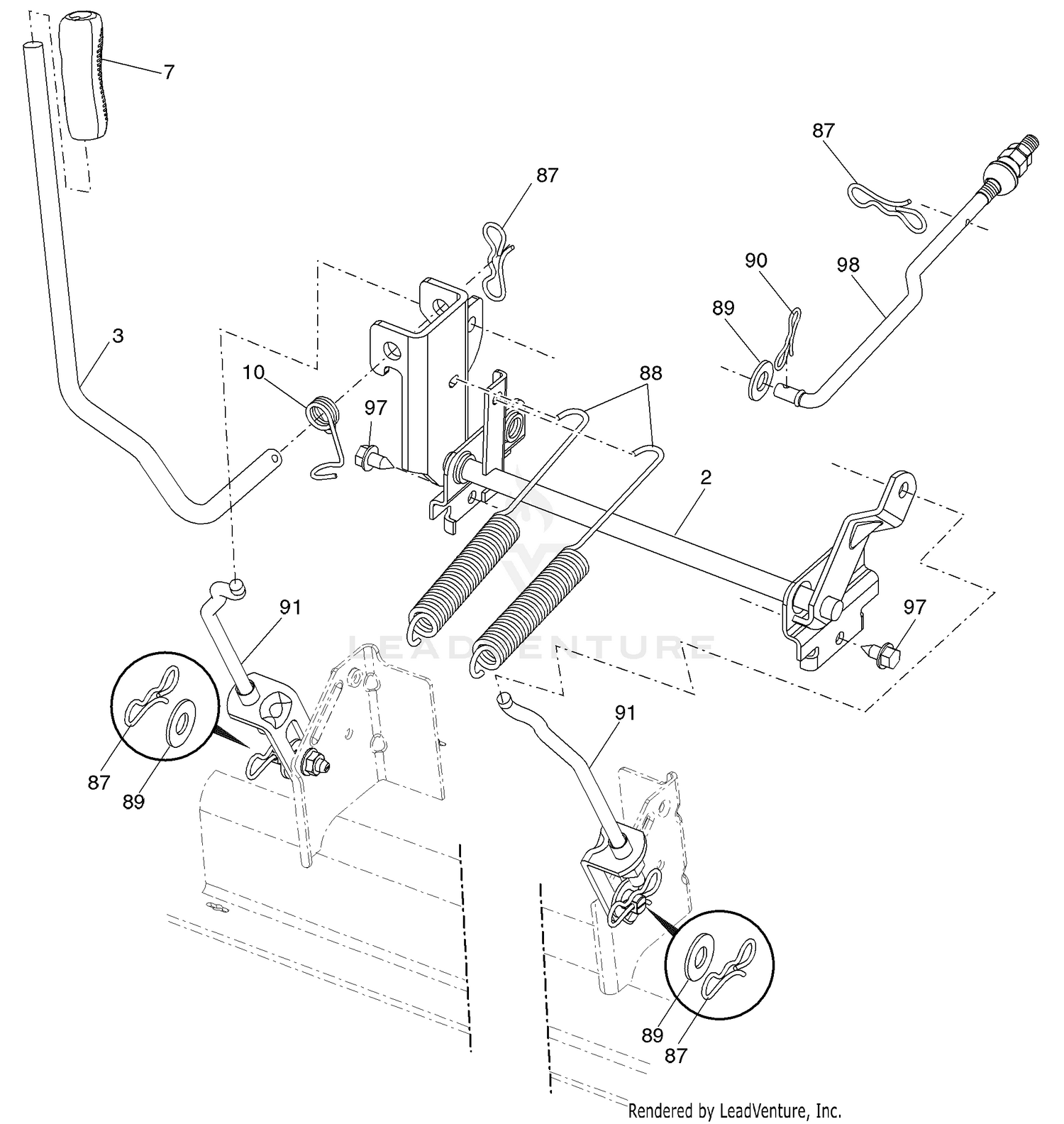

| Ref | Part Number | Description |
|---|
| 1 |
59-7580 |
NUT Price: $0.95 |
| 2 |
3253-6 |
WASHER-LOCK This part replaces 59-7590. Price: $0.39 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT This part replaces 532195223. Price: $69.99 |
| 3 |
59-7970 |
STUD Price: $17.00 |
| 3 |
596270601 |
Levers This part replaces 532195230. Price: $19.99 |
| 4 |
69-2060 |
SHAFT END COVER ASM This part replaces 86-6010. Price: $1,123.41 |
| 5 |
59-7990 |
SEAL Price: $14.58 |
| 6 |
59-8470 |
RETAINER Price: $18.19 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK Price: $7.99 |
| 7 |
69-2070 |
PLATE-FLEX This part replaces 86-6070. Price: $311.23 |
| 8 |
69-2080 |
SECTION-CENTER This part replaces 86-6020. Price: $700.92 |
| 9 |
59-8590 |
SEAL Price: $31.34 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 10 |
59-8500 |
GEAR Price: $1,303.76 |
| 11 |
59-8600 |
GEAR Price: $470.56 |
| 11 |
74-3240 |
DRIVEN GEAR Price: $441.50 |
| 12 |
86-6080 |
O-RING Price: $4.40 |
| 13 |
86-6000-01 |
PUMP This part replaces 86-6030. Price: $2,799.05 |
| 14 |
59-8540 |
COUPLING Price: $240.01 |
| 15 |
69-2200 |
O-RING This part replaces 86-6040. Price: $17.77 |
| 16 |
86-6050 |
PLUG Price: $12.09 |
| 17 |
59-8570 |
SEAL Price: $45.56 |
| 18 |
59-8580 |
RING-RETAINING Price: $10.21 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 88 |
532195301 |
SPRINGS This part replaces 532195304. Price: $11.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $2.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 91 |
589464808 |
LINK ASSY LIFT.REAR LINK.ASM.P This part replaces 532197984. Price: $12.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
