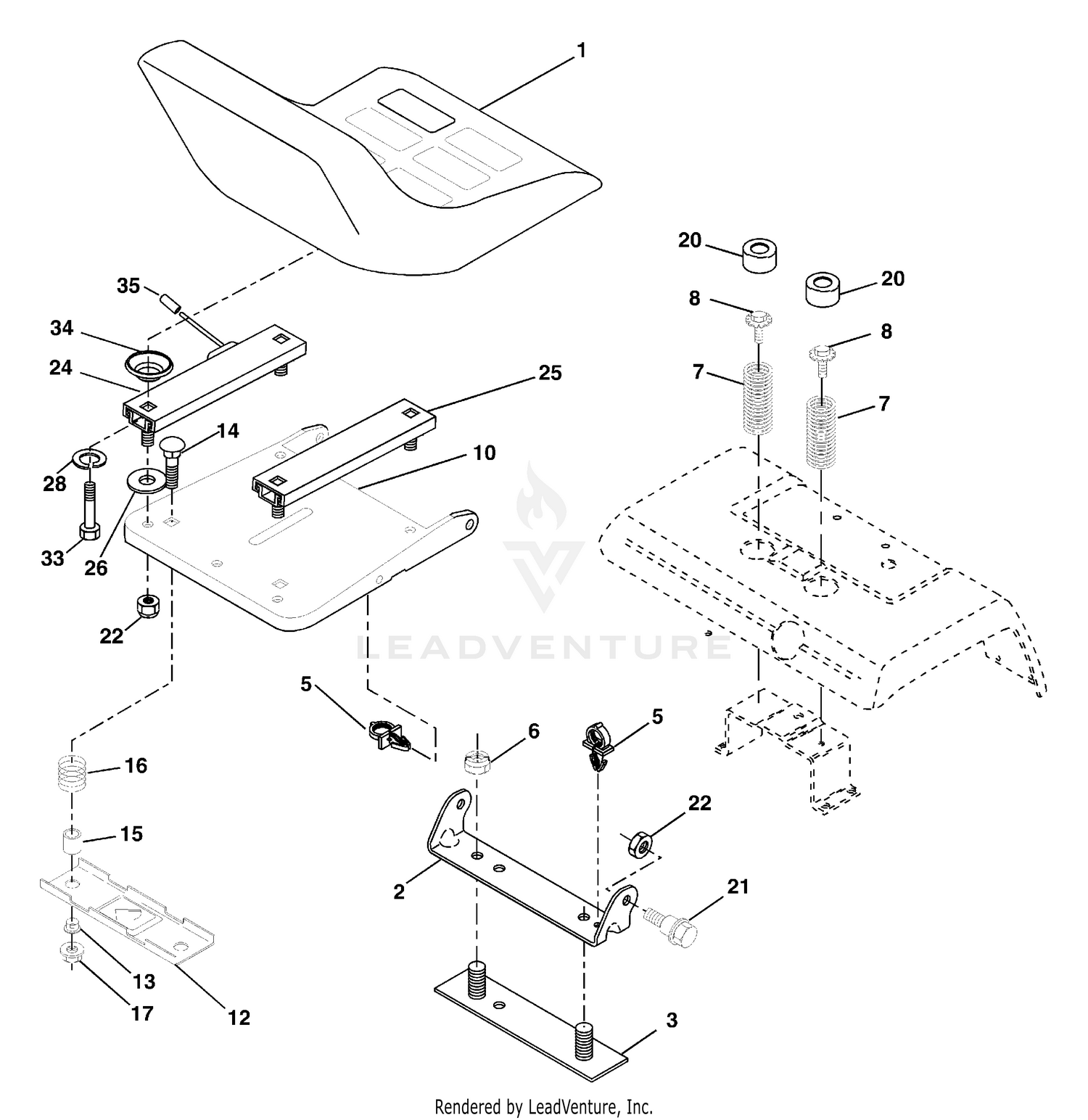

| Ref | Part Number | Description |
|---|
| 1 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 1 |
532126826 |
SEAT This part replaces 532124187. Price: $188.99 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
323-4 |
SCREW-HH Price: $1.02 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
3212-4 |
SCREW-HH Price: $2.73 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532174894. Price: $17.99 |
| 10 |
75-4370-03 |
BRACKET-SEAT This part replaces 75-4370. Price: $20.93 |
| 11 |
92-8753 |
DISCONTINUED Price: Call Us |
| 12 |
3250-29 |
SCREW-PPH Price: $0.25 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
92-8001 |
SENSOR-SWITCH, REED Price: $86.02 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
75-4360-03 |
BRACKET-SUSPENSION, SEAT This part replaces 75-4360. Price: $17.81 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 17 |
2412-133 |
CLAMP-R Price: $3.19 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 20 |
532124238 |
CAP SPRING Price: $4.99 |
| 20 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 21 |
2412-93 |
CLAMP-R Price: $1.02 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 22 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 23 |
351-78 |
EDGING Price: $60.98 |
| 24 |
532177946 |
TRACK SLIDE, SEAT(L) Price: $59.99 |
| 25 |
532177947 |
TRACK SLIDE, SEAT(R) Price: $119.99 |
| 26 |
734116541 |
WASHER - 25X8.5X2.3 This part replaces 819111416. Price: $4.99 |
| 28 |
810010500 |
WASHER Price: $3.99 |
| 33 |
596580801 |
Bolts This part replaces 874780516. Price: $2.99 |
| 34 |
532124427 |
SPACER Price: $2.66 |
