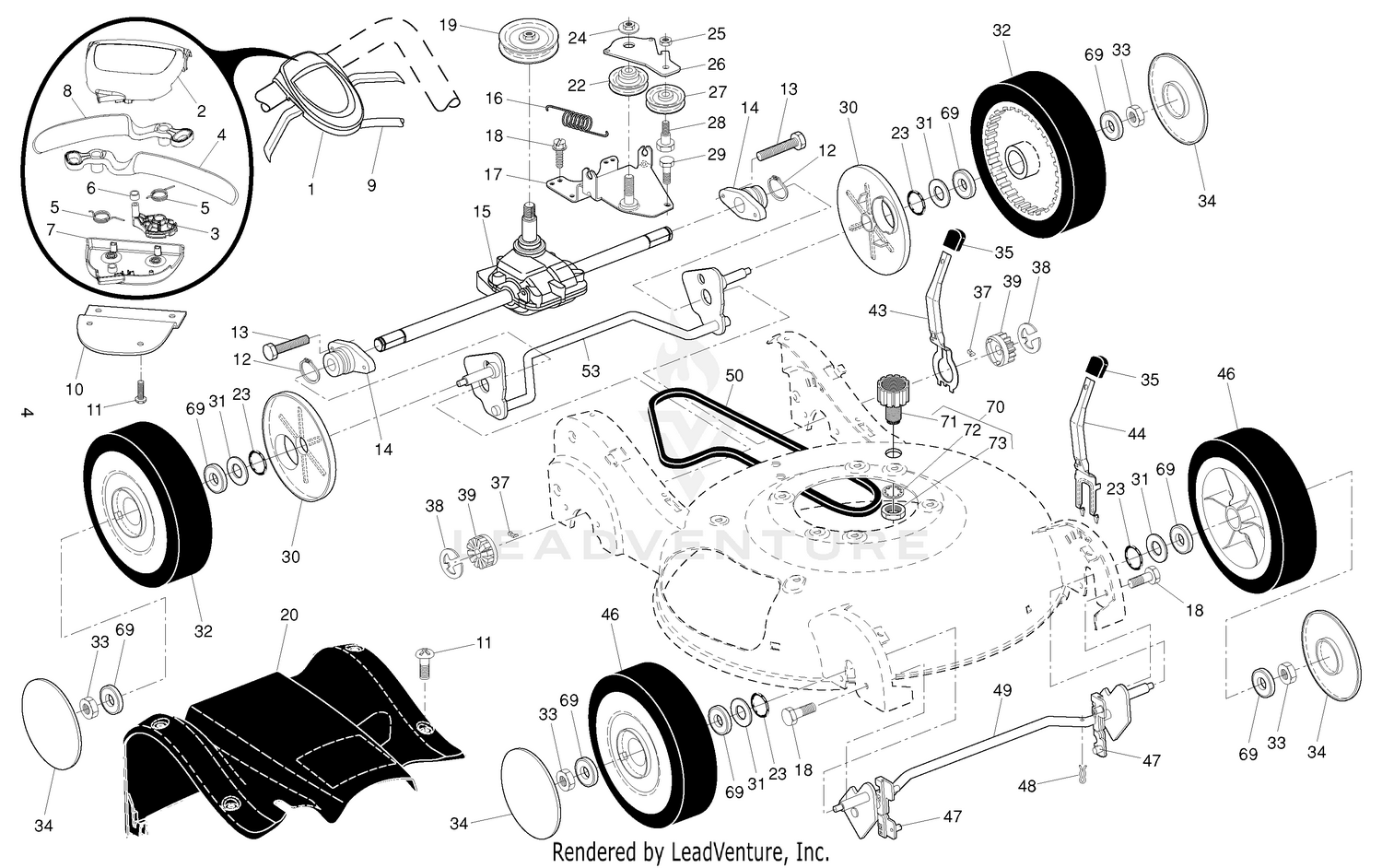

| Ref | Part Number | Description |
|---|
| 2 |
532431638 |
RP CASE.CONT.ROL.TOP.HUSQV. Price: $19.99 |
| 3 |
532432286 |
CAM.GEN2.DUAL.TRIGGER Price: $3.99 |
| 4 |
532432977 |
LEVER.CONTROL.RH.22+.CURV.BLAC Price: $11.99 |
| 5 |
532420381 |
SPRING, DRIVE CONTROL Price: $2.99 |
| 6 |
532432273 |
BUSHING.CONTROL.CAM Price: $3.99 |
| 7 |
532433057 |
COVER.DR.CONTROL.LOWER.GRAY Price: $12.99 |
| 8 |
532433087 |
LEVER.CONTROL.LH.22+.CURVE.BLA Price: $11.99 |
| 9 |
532431656 |
CABLE.CONTROL.HIVAC.GEN2 Price: $59.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 12 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 13 |
532088652 |
HINGE SCREW Price: $3.99 |
| 14 |
532408027 |
BEARING / AXLE SUPPORT Price: $14.99 |
| 15 |
532419211 |
TRANSMISSION.21.HV.RWGD.AW/EZ Price: $89.99 |
| 16 |
532406558 |
SPRING Price: $6.99 |
| 17 |
532408005 |
BRACKET, GEAR CASE / DRIVE Price: $12.99 |
| 18 |
532163409 |
SCREW Price: $3.99 |
| 19 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 22 |
532193791 |
PULLEY.IDLER.V-BELT Price: $12.99 |
| 23 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532416736 |
ARM.IDLER.BZP Price: $3.99 |
| 27 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 28 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 29 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 30 |
532183457 |
DUST COVER, WHEEL Price: $4.99 |
| 31 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 32 |
532192622 |
WHEEL.9X2.25.LP.TIGER.BLACK Price: $69.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532183442 |
HUBCAP.WHEEL.5.SPOKE.SILVER Price: $4.99 |
| 35 |
532425242 |
KNOB.SELECTOR.SPRING.BLACK(3 2 Price: $4.99 |
| 37 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 38 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 39 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 43 |
532188508 |
LEVER, SELECTOR, HEIGHT, REAR This part replaces 532190520. Price: $7.99 |
| 44 |
532188509 |
SPRING.SELECTOR.FRONT This part replaces 532190518. Price: $5.99 |
| 46 |
532192232 |
WHEEL.9X2.25.LP.TIGER.BLK Price: $43.99 |
| 47 |
532183438 |
BUSHING.FRONT.TORQUE.SHAFT Price: $5.99 |
| 48 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 49 |
532192431 |
SHAFT.ASM.FRONT.TORQUE This part replaces 532196469. Price: $37.99 |
| 50 |
532408031 |
BELT, DRIVE Price: $12.99 |
| 53 |
532416740 |
SHAFT.ASM.REAR.TORQUE.HV.BZP Price: $32.99 |
| 69 |
532751068 |
BEARING.8".WHEEL Price: $6.99 |
| 70 |
532421114 |
KIT.WASH-OUT.PORT Price: $14.99 |
| 71 |
532421114 |
KIT.WASH-OUT.PORT This part replaces 532419735. Price: $14.99 |
| 72 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
