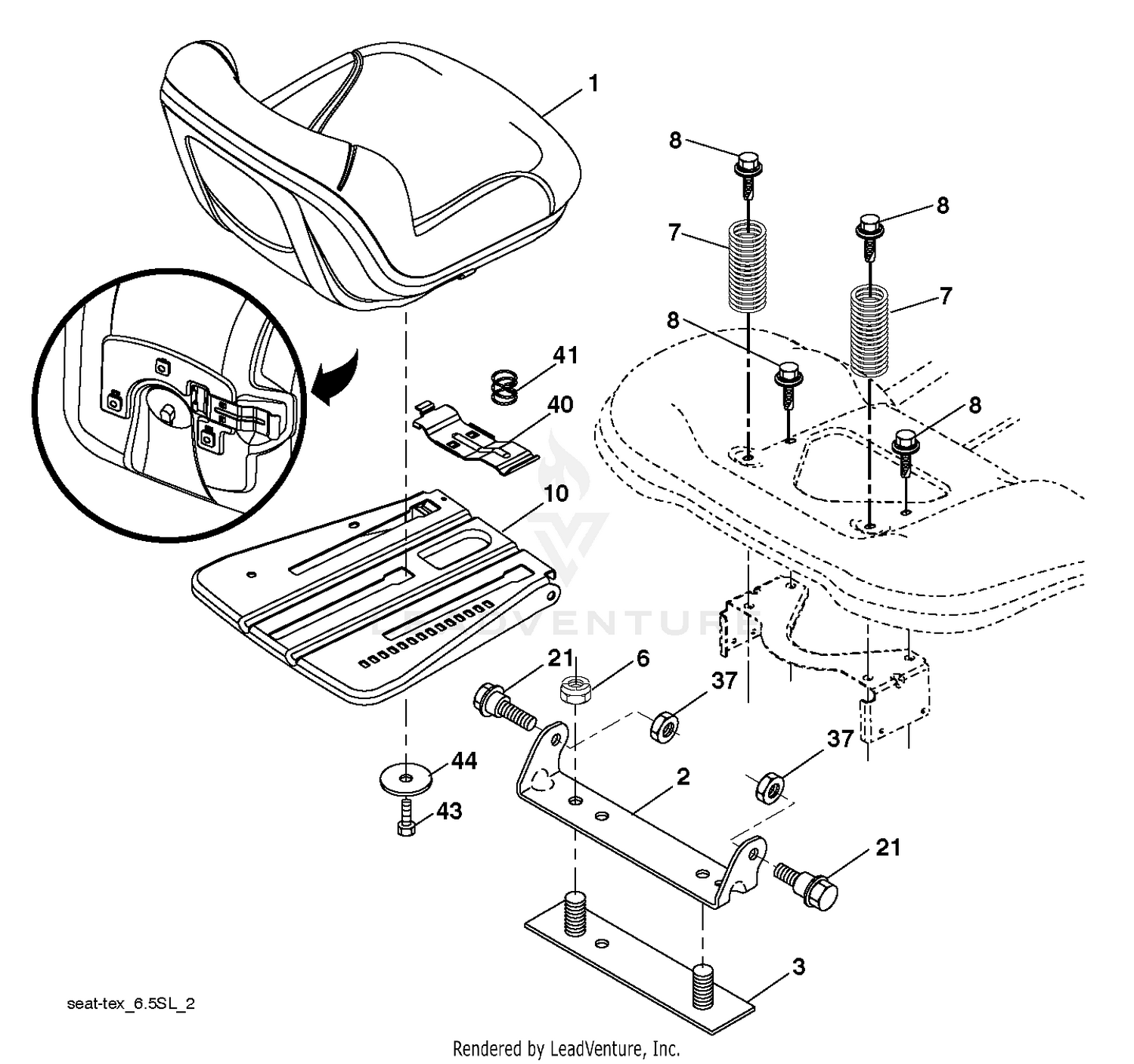

| Ref | Part Number | Description |
|---|
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99 |
| 1 |
631615 |
SHAFT & LEV Price: $6.48 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
631767 |
SPRING Price: $1.25 |
| 3 |
532140675 |
STRAP Price: $5.99 |
| 4 |
631184 |
WASHER Price: $1.25 |
| 5 |
631183 |
WASHER Price: $1.25 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
640070 |
SHUTTER Price: $1.25 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 16 |
631807 |
FUEL FITTING Price: $6.03 |
| 17 |
651025 |
SCREW Price: $1.18 |
| 18 |
630766 |
SPRING Price: $1.25 |
| 20 |
640027 |
FUEL JET Price: $2.60 |
| 20A |
640200 |
CAP (BLACK) Price: $1.20 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 25 |
631867 |
FLOAT BOWL Price: $2.34 |
| 27 |
631024 |
FLOAT SHAFT Price: $1.17 |
| 28 |
632816 |
FLOAT This part replaces 632802. Price: $5.90 |
| 29 |
631028A |
GASKET This part replaces 631028. Price: $1.95 |
| 30 |
631021B |
INLET NEEDLE KIT This part replaces 631021. Price: $4.82 |
| 31 |
631022 |
CLIP Price: $1.25 |
| 35 |
640259 |
PRIMER Price: $6.16 |
| 36 |
640080 |
NOZZLE Price: $4.95 |
| 36A |
632766 |
CARB VENT TUBE Price: $1.25 |
| 37 |
632547 |
O RING Price: $1.49 |
| 40 |
595088102 |
Handles This part replaces 532439871. Price: $4.99 |
| 40 |
632746 |
NUT Price: $3.86 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
27110A |
GASKET Price: $1.45 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
631027 |
WELCH PLUG Price: $1.17 |
| 640272A |
CARBURETOR |
This part replaces 640272. Price: $78.00 640272A |
