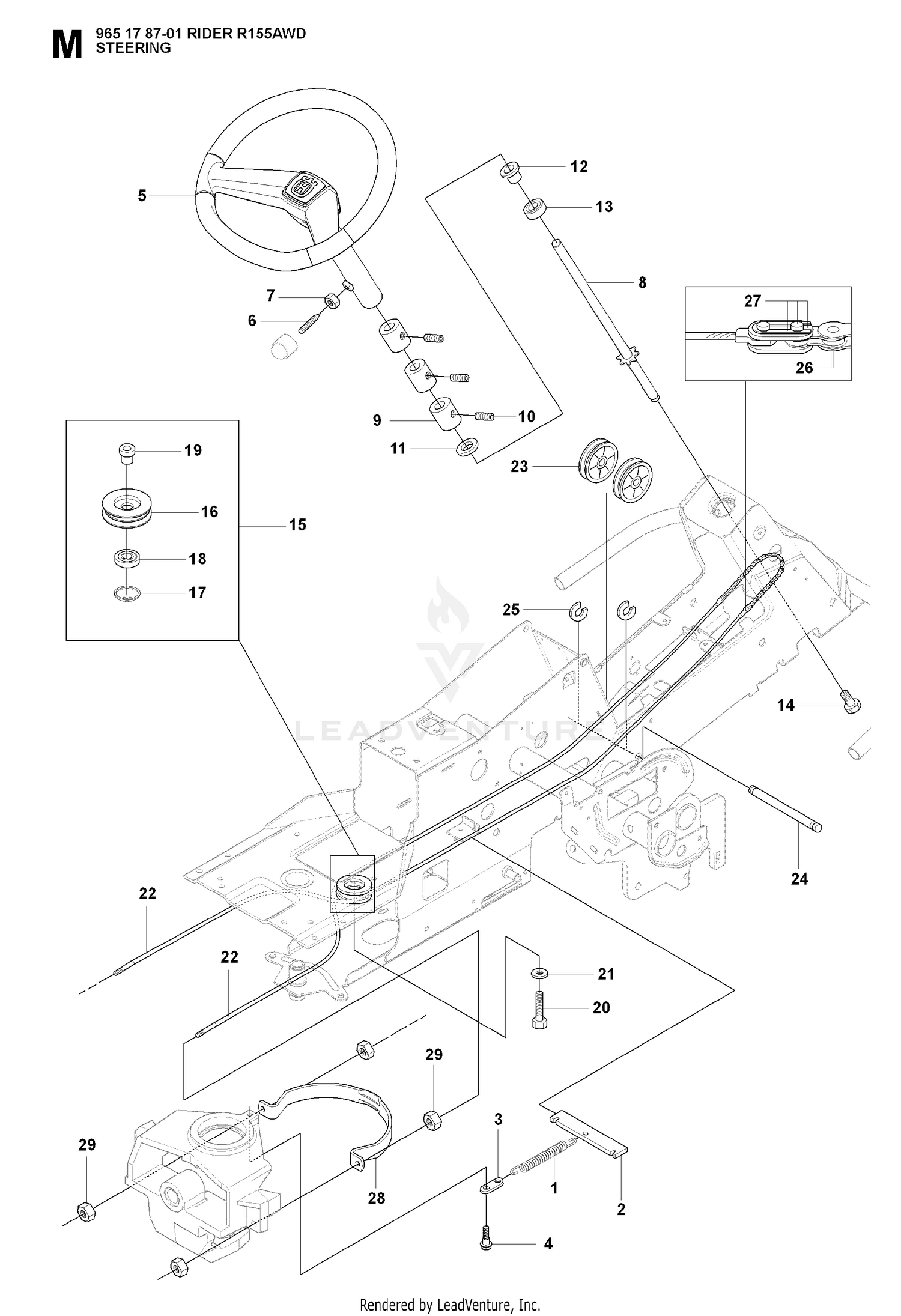

STEERING
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506671901 | SPRING Price: $22.99 |
| 2 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 3 | 506670801 | CONNECTOR Price: $6.99 |
| 4 | 506597401 | BOLT Price: $5.99 |
| 5 | 544375202 | STEERING WHEEL Price: $54.99 |
| 6 | 728745505 | SCREW Price: $3.99 |
| 7 | 731231801 | NUT Price: $3.99 |
| 9 | 587080901 | DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 | 728844305 | Screw Price: $1.99 |
| 11 | 506863601 | WASHER Price: $7.99 |
| 12 | 506887801 | SPACER Price: $7.99 |
| 13 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 14 | 506570104 | BOLT Price: $4.99 |
| 15 | 506500903 | RP PULLEY Price: $101.22 |
| 16 | 535424101 | ROLLER Price: $89.99 |
| 17 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 18 | 738220419 | BALL-BEARING 6204-2RS Price: $14.99 |
| 19 | 506500802 | BUSHING Price: $7.46 |
| 20 | 117-5542 | BRACKET Price: $47.03 |
| 20 | 506675402 | BOLT Price: $5.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 501604804 | WIRE ASSY This part replaces 506589104. Price: $17.99 |
| 23 | 506522401 | ROLLER Price: $9.99 |
| 24 | 506539402 | SHAFT Price: $7.99 |
| 25 | 735311420 | RETAINING RING Price: $2.99 |
| 26 | 506554601 | STEERING CHAIN Price: $17.99 |
| 27 | 506554701 | LINK Price: $4.99 |
| 28 | 544427301 | WIRE GUIDE Price: $29.99 |
| 29 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 30 | 108-7088 | BOLT Price: $1.22 |
| 40 | 98-9360 | BOLT Price: $2.35 |
| 50 | 99-7526 | NUT This part replaces 98-7737. Price: $1.29 |
| 60 | 98-9366 | WASHER-PLAIN This part replaces 98-7696. Price: $0.28 |
| 70 | 98-7738 | WASHER-SPRING Price: $0.24 |
| 80 | 98-7692 | BOLT Price: $0.92 |
| 90 | 105-3745 | PULLEY-DRIVE, FAN Price: $293.55 |
