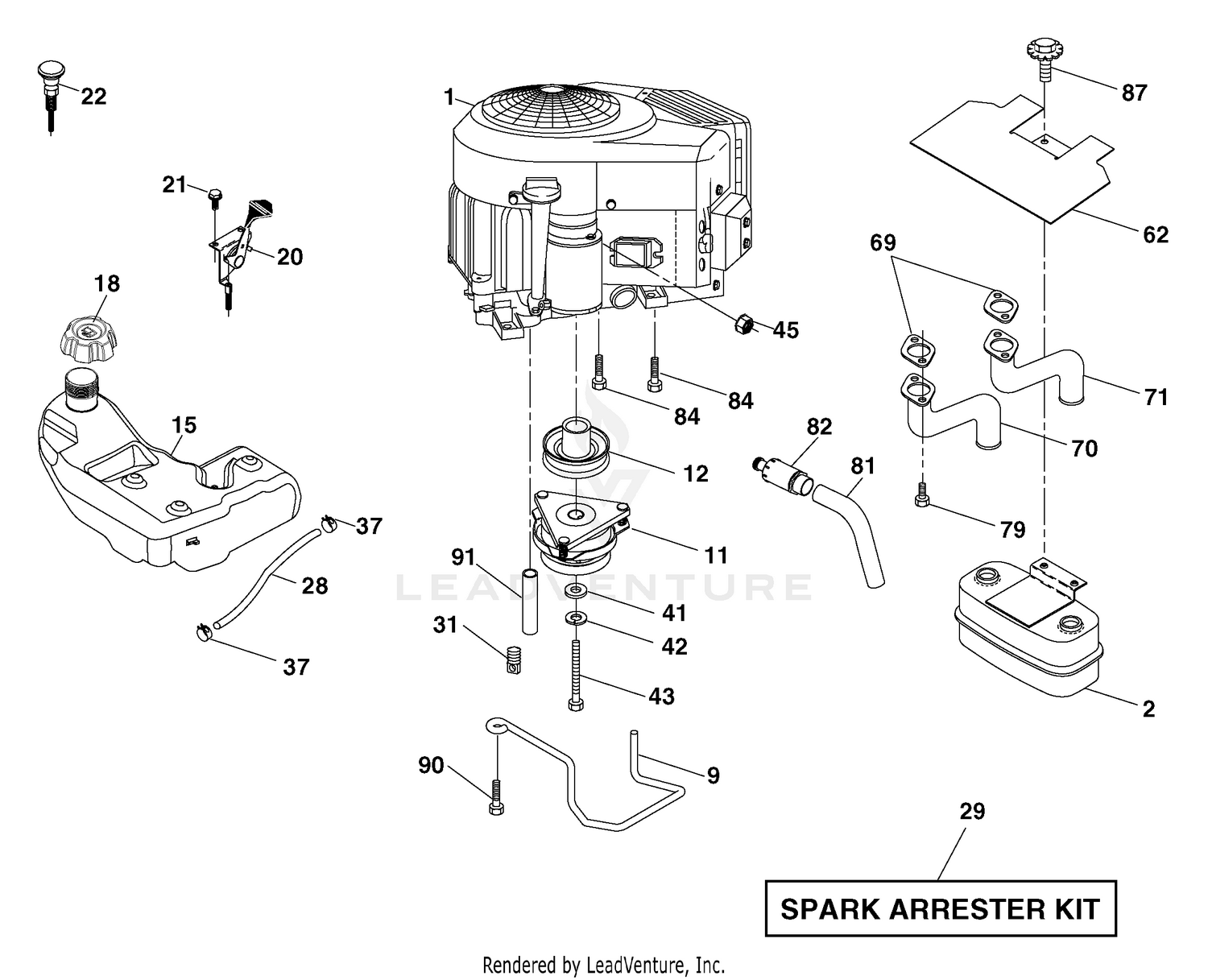

| Ref | Part Number | Description |
|---|
| 1 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
76-7090-03 |
COVER-CONTROL, FRONT This part replaces 76-7090. Price: $31.56 |
| 3 |
76-6270 |
STRIP-FOAM, PANEL Price: $18.47 |
| 4 |
237-79 |
O-RING Price: $5.46 |
| 5 |
237-42 |
O-RING Price: $2.78 |
| 6 |
353-508 |
PLUG-HH Price: $7.96 |
| 7 |
321-10 |
SCREW-HH Price: $1.29 |
| 8 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 9 |
69-9140 |
LINK-LEVER, VALVE Price: $15.42 |
| 10 |
323-17 |
SCREW-HH Price: $2.05 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532179334. Price: $329.99 |
| 12 |
532402980 |
PULLEY.ENGINE.ENX Price: $49.99 |
| 12 |
74-6060 |
LEVER-VALVE, RH Price: $73.07 |
| 13 |
233-42 |
KNOB Price: $12.88 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 15 |
69-1780 |
CONTROL VALVE ASM Price: $2,259.71 |
| 16 |
63-4090 |
FITTING-ELBOW 90 SPCL Price: $75.99 |
| 17 |
237-22 |
O-RING Price: $2.43 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 18 |
86-3240 |
HOSE ASSY Price: $64.49 |
| 20 |
340-1 |
FITTING-STRAIGHT This part replaces 88-1380. Price: $10.19 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
237-21 |
O-RING Price: $0.70 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
86-2501 |
PLATE-ORIFICE (.039) Price: $23.20 |
| 23 |
86-3190 |
HOSE ASM Price: $44.25 |
| 24 |
86-3180 |
HOSE ASM Price: $45.47 |
| 25 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 26 |
84-6402 |
DISC-ORIFICE (.080) Price: $33.60 |
| 27 |
74-5910 |
BULKHEAD-SPECIAL Price: $107.74 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
86-5770 |
REILIEF VALVE TUBE ASM Price: $131.59 |
| 29 |
354-79 |
CAP-DUST Price: $7.81 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 32 |
86-3230 |
HOSE ASM Price: $85.65 |
| 33 |
86-5760 |
DECK RETURN TUBE ASM Price: $80.10 |
| 34 |
237-30 |
O-RING Price: $2.50 |
| 35 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 36 |
86-5440 |
DISCONTINUED Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
86-5930 |
DISCONTINUED Price: Call Us |
| 38 |
76-7040 |
PAD-FOOT Price: $6.58 |
| 39 |
82-5300-03 |
HEEL-SUPPORT This part replaces 82-5300. Price: $37.51 |
| 40 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
88-1520 |
DISCONTINUED Price: Call Us |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
