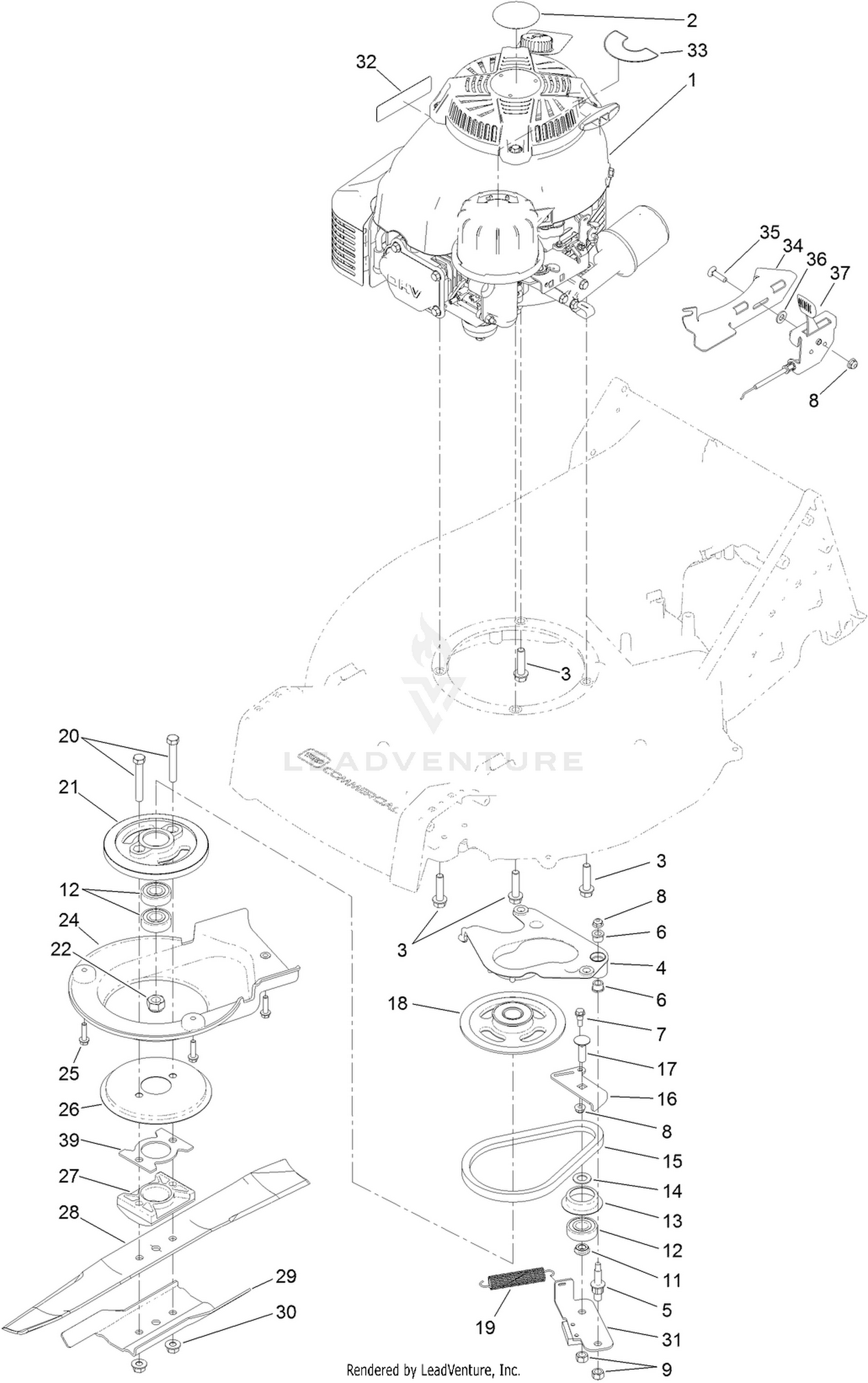

| Ref | Part Number | Description |
|---|
| 1 |
121-1410 |
ENGINE-KAWASAKI, FJ180V Price: $684.40 |
| 2 |
110-0520 |
DECAL Price: $20.04 |
| 3 |
125-1073 |
SCREW-HWH Price: $2.22 |
| 4 |
130-2375 |
PLATE-ANCHOR Price: $28.28 |
| 5 |
107-0759 |
BOLT-SHOULDER Price: $6.54 |
| 6 |
130-2377 |
BUSHING-FLANGE Price: $1.29 |
| 7 |
42-3560 |
BOLT-SHOULDER Price: $4.85 |
| 8 |
104-7201 |
NUT-HF Price: $0.69 |
| 9 |
603773 |
LOCKNUT This part replaces 125-5069. Price: $2.09 |
| 11 |
107-0758 |
SPACER-BEARING Price: $2.09 |
| 12 |
38-7820 |
BEARING-BALL This part replaces 100-1048. Price: $13.99 |
| 13 |
138-3217 |
RETAINER-BELT This part replaces 108-3790. Price: $2.04 |
| 14 |
605256 |
SPACER Price: $1.31 |
| 15 |
110-1790 |
BELT Price: $26.26 |
| 16 |
125-8446 |
PLATE-GUIDE, BBC Price: $5.91 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 18 |
117-5970 |
PULLEY Price: $21.57 |
| 19 |
108-3792 |
SPRING-TENSION, BRAKE Price: $7.49 |
| 20 |
3211-42 |
SCREW-HH Price: $3.47 |
| 21 |
126-8108 |
DRUM This part replaces 107-0754. Price: $36.33 |
| 22 |
108-9342 |
NUT-HEX Price: $3.49 |
| 24 |
125-1006 |
COVER Price: $11.70 |
| 25 |
32144-86 |
SCREW-HWHTF Price: $1.29 |
| 26 |
138-3225 |
DISK This part replaces 108-3787. Price: $7.95 |
| 27 |
107-7487 |
SUPPORT-BLADE Price: $14.79 |
| 28 |
133-8183-03 |
BLADE-RECYCLING, 21IN This part replaces 108-3762-03. Price: $19.68 |
| 29 |
125-1069-03 |
ACCELERATOR-BLADE Price: $11.38 |
| 30 |
127-6852 |
NUT-FLANGE, LOCK Price: $1.79 |
| 31 |
125-1063 |
PLATE-BRAKE Price: $15.98 |
| 32 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 33 |
114-3415 |
DECAL Price: $4.47 |
| 34 |
116-2220-03 |
BRACKET-MOUNT, THROTTLE Price: $21.13 |
| 35 |
3229-30 |
SCREW-CARR Price: $1.39 |
| 36 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 37 |
116-2248 |
THROTTLE Price: $27.16 |
