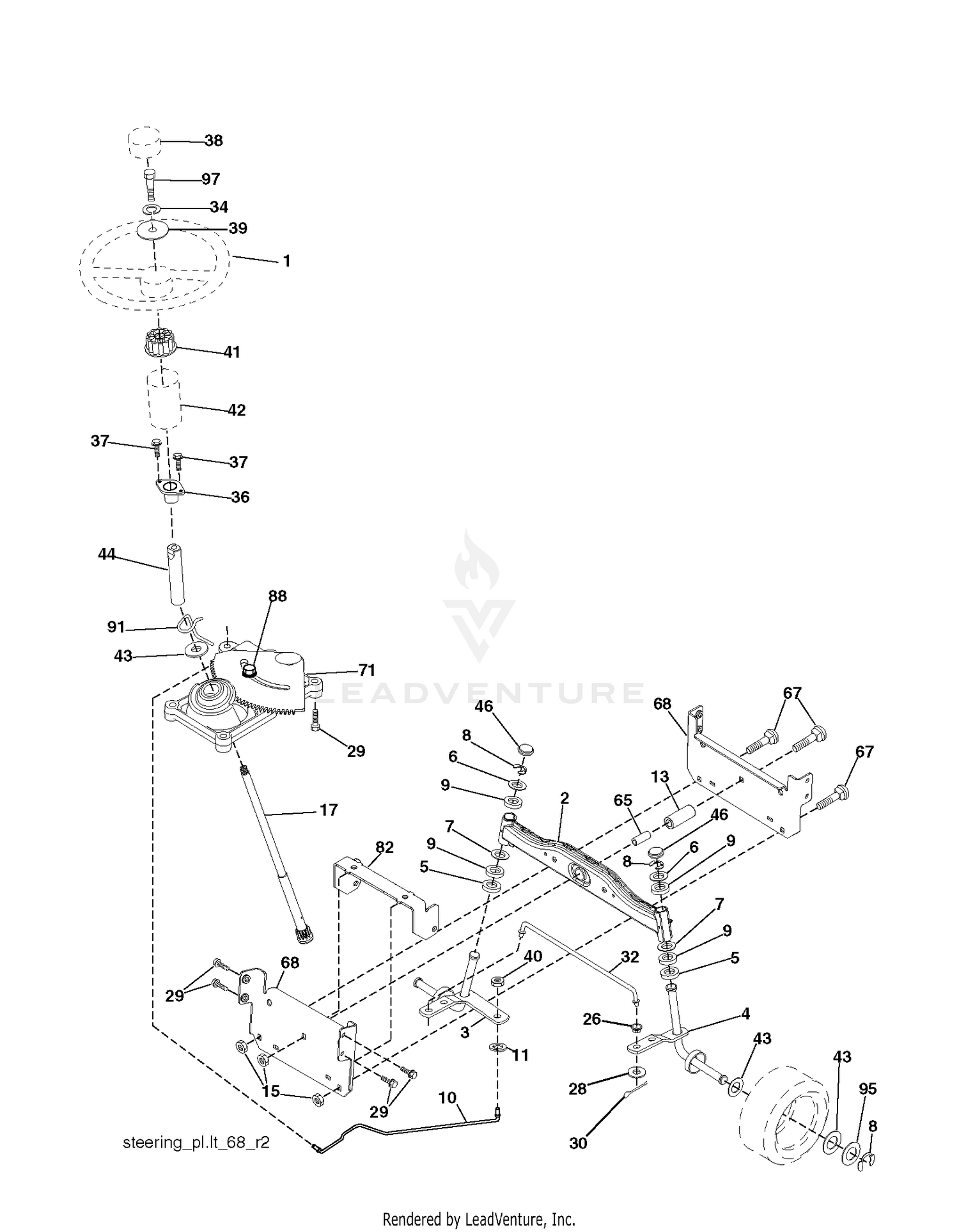

| Ref | Part Number | Description |
|---|
| 1 |
117-8320 |
SADDLE ASM Price: $3,431.83 |
| 1 |
583161701 |
WHEEL.STEERING.OPP.BLACK This part replaces 532186780. Price: $49.99 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 2 |
531171101 |
SERVICE KIT AXLE HALF ASM This part replaces 532195673. Price: $59.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
108-0657 |
PIN-FLAG Price: $39.42 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
3233-32 |
BOLT-CARRIAGE Price: $8.48 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
117-8305-03 |
SADDLE-PIVOT Price: $20.05 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
325-7 |
SCREW-HH Price: $1.53 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $37.99 |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) Price: $4.99 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM Price: $29.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
583205301 |
CAP.WHEEL.STEER.OPP.BLK This part replaces 532192916. Price: $4.99 |
| 39 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 42 |
532169633 |
BOOT.STEERING.SHAFT.BLACK Price: $6.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 97 |
874780564 |
BOLT Price: $4.99 |
