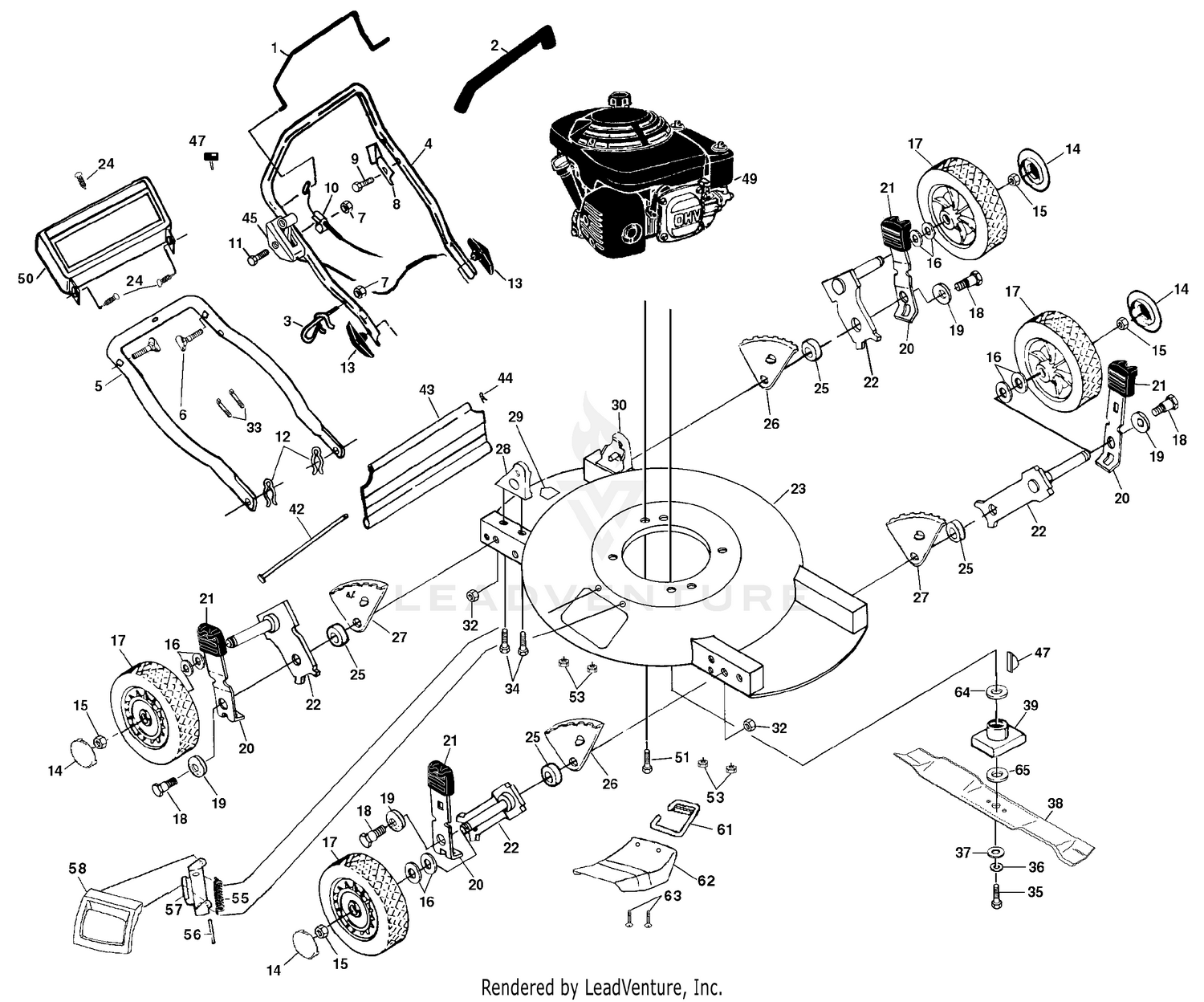

| Ref | Part Number | Description |
|---|
| 1 |
532850735 |
CONTROL BAR/BLACK Price: $4.69 |
| 2 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532164265. Price: $4.99 |
| 3 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 4 |
532166267 |
UPPER HANDLE Price: $41.99 |
| 5 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532157082. Price: $54.99 |
| 6 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 7 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 8 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 9 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 10 |
532851671 |
CABLE ASSEMBLY This part replaces 532701181. Price: $12.99 |
| 11 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 13 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 14 |
53208508J |
Hubcap Price: Call Us |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 16 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 17 |
532800372 |
WHEEL & TIRE Price: $18.99 |
| 18 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 19 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 20 |
532125066 |
SELECTOR SPRING Price: $4.99 |
| 21 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 22 |
532145937 |
AXLE ARM This part replaces 532151254. Price: $3.99 |
| 24 |
532701477 |
FASTENER Price: $2.38 |
| 25 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 26 |
532140058 |
BRACKET WHL ADJ This part replaces 532800370. Price: $4.99 |
| 27 |
532800368 |
WHL ADJ BRKT LF/RR Price: $5.99 |
| 28 |
532192983 |
KIT HANDLE BRACKET LH/RH This part replaces 532153026. Price: $27.99 |
| 29 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 30 |
532153027 |
HDLE BRKT ASSY LH Price: $7.99 |
| 32 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 33 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 34 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532149741. Price: $4.99 |
| 35 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 36 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 37 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 38 |
532145106 |
BLADE.20.MULCH.(50DK,6020MD) Price: $17.99 |
| 39 |
532144229 |
BLADE ADAPTOR This part replaces 532144331. Price: $15.65 |
| 42 |
532150984 |
DEFLECTOR ROD Price: $7.99 |
| 43 |
532150985 |
SKIRT-REAR 20" Price: $7.99 |
| 44 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 45 |
532147758 |
CONTROL.THROTTLE.WALK This part replaces 532163340. Price: $12.99 |
| 47 |
532087677 |
HI PRO KEY PM WSL Price: $3.99 |
| 50 |
532157070 |
TRIM PLATE Price: $4.53 |
| 51 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 53 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 55 |
532152124 |
TORSION SPRING Price: $5.99 |
| 56 |
532147286 |
ROD.HINGE.COMBI-C Price: $6.99 |
| 57 |
532087593 |
BRACKET PM Price: $5.99 |
| 58 |
532154829 |
MULCHER DOOR Price: $6.99 |
| 61 |
532751399 |
BRACKET.CHUTE.MTG Price: $11.99 |
| 62 |
532752118 |
MULCHER DEFLECTOR Price: $13.99 |
| 63 |
874180410 |
Truss Head Screw Price: $4.99 |
| 64 |
819131016 |
WASHER This part replaces 532067510. Price: $2.99 |
| 65 |
532148353 |
WASHER Price: $3.99 |
| 532166272 |
Owner's |
Manual (English/French) Price: Call Us 532166272 |
| 532166343 |
DECAL, |
HOUSING Price: $37.99 532166343 |
