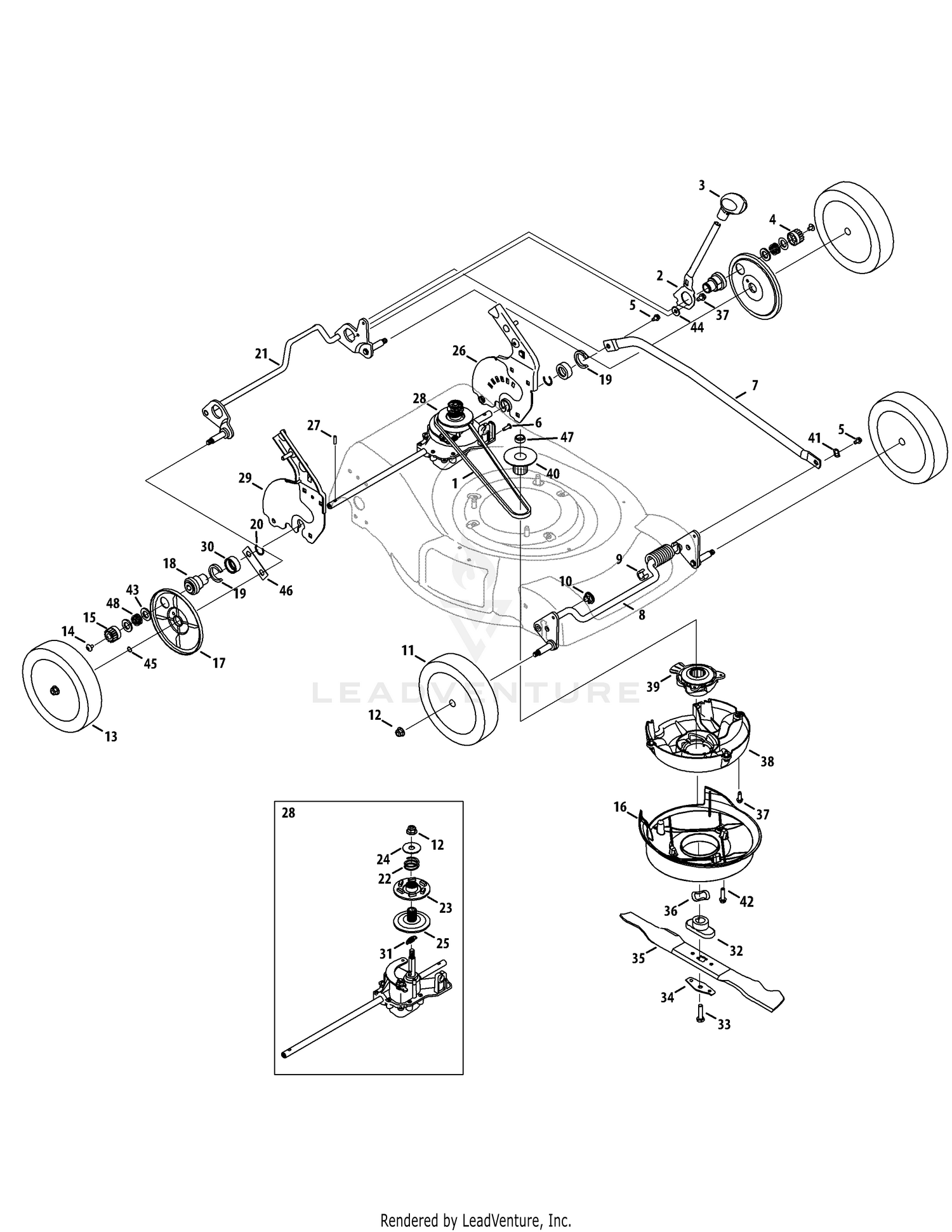

| Ref | Part Number | Description |
|---|
| 1 |
954-04176A |
V-Belt Price: $21.70 |
| 2 |
732-04338C |
HEIGHT CONTROL LEVER Not Available Price: |
| 3 |
720-04092 |
Foam Grip Price: $5.30 |
| 4 |
917-04540B |
SPUR GEAR 11T (LH) Price: $8.63 |
| 5 |
738-04278 |
Shldr. Screw, 1/4-20 x 0.50 Price: $5.99 |
| 6 |
710-0895 |
Screw, 1/4-15 x .750 Price: $5.82 |
| 7 |
749-04267B-0637 |
CROSS BRACKET Not Available This part replaces 749-04267A-0637. Price: |
| 8 |
687-02204B-0637 |
FRONT BRACKET ASSEMBLY (POWDER BLACK) Not Available Price: |
| 9 |
731-05470 |
Clip Spacer Price: $4.36 |
| 10 |
741-04136B |
Split Hex Flange Bearing Price: $4.02 |
| 11 |
753-08175 |
WHEEL KIT IDLE 8 x 2 (W/BEARINGS) This part replaces 734-04014B. Price: $37.85 |
| 12 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 13 |
753-08092 |
Fr. Wheel 8 Yellow This part replaces 934-04430. Price: $39.21 |
| 14 |
710-04531 |
Screw, 1/4-20 x .39 Price: $4.42 |
| 15 |
917-04539B |
SPUR GEAR 11T (RH) Not Available Price: |
| 16 |
731-06284 |
RING BAFFLE Not Available Price: |
| 17 |
731-06974 |
Wheel Dust Cover Price: $5.78 |
| 18 |
687-02415 |
Transmission Bearing Support Price: $20.49 |
| 19 |
731-05872 |
Clip Spacer Price: $5.99 |
| 20 |
716-0198 |
Retaining Ring .875 Price: $4.04 |
| 21 |
687-02314A-0637 |
Rear Bracket Assembly Price: $54.78 |
| 22 |
732-04630 |
Compression Spring Price: $4.24 |
| 23 |
756-04316A |
UPPER TRANSMISSION PULLEY Not Available Price: |
| 24 |
936-0406 |
Washer, Flat, .442 x 1.38 x .060 Price: $5.94 |
| 25 |
756-04317A |
LOWER TRANSMISSION PULLEY Not Available Price: |
| 26 |
687-02322 |
HANDLE BRACKET ASSEMBLY (LH) Not Available This part replaces 687-02322-0637. Price: |
| 27 |
915-0221 |
Dowel Pin Price: $3.93 |
| 28 |
918-04826A |
TRANSMISSION Not Available Price: |
| 29 |
687-02323-0637 |
HANDLE BRACKET ASSEMBLY (RH)(POWDER BLACK) Not Available Price: |
| 30 |
748-0390 |
Bearing Support Spacer Price: $4.89 |
| 31 |
732-04313 |
Extension Spring Price: $3.96 |
| 32 |
748-0376E |
Blade Adapter This part replaces 748-0376C. Price: $19.13 |
| 33 |
710-1044 |
Screw, 3/8-24 x 1.50 Price: $3.48 |
| 34 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524B. Price: $5.34 |
| 35 |
942-0741A |
Blade This part replaces 942-0741. Price: $27.55 |
| 36 |
736-0526 |
Wave Washer 1.38 ID x .88 OD This part replaces 936-0526. Price: $5.94 |
| 37 |
710-0599 |
TT Screw, 1/4-20 x .500 Price: $3.86 |
| 38 |
731-06112A |
ENGINE LOWER BAFFLE Not Available Price: |
| 39 |
956P04046 |
LOWER PULLEY Not Available This part replaces 956-04046. Price: |
| 40 |
756-04315A |
UPPER HALF PULLEY Not Available Price: |
| 41 |
736-04413 |
Washer, Wave, .385 x .598 Price: $3.33 |
| 42 |
710-04774 |
Screw, 1/4-15 x 1.250 Price: $4.02 |
| 43 |
736-0369 |
Flat Washer, .508 x 1.0 x .020 This part replaces 936-0369. Price: $3.90 |
| 44 |
736-0242 |
Washer, Bell, .340 x .872 x .080 Price: $3.75 |
| 45 |
732-04543 |
RING-.375 ID x .054 THICK Not Available Price: |
| 46 |
787-01673 |
RETAINING GEAR STRAP Not Available Price: |
| 47 |
750-05022 |
SPACER-7/8 x 1.265 x .27 Not Available Price: |
