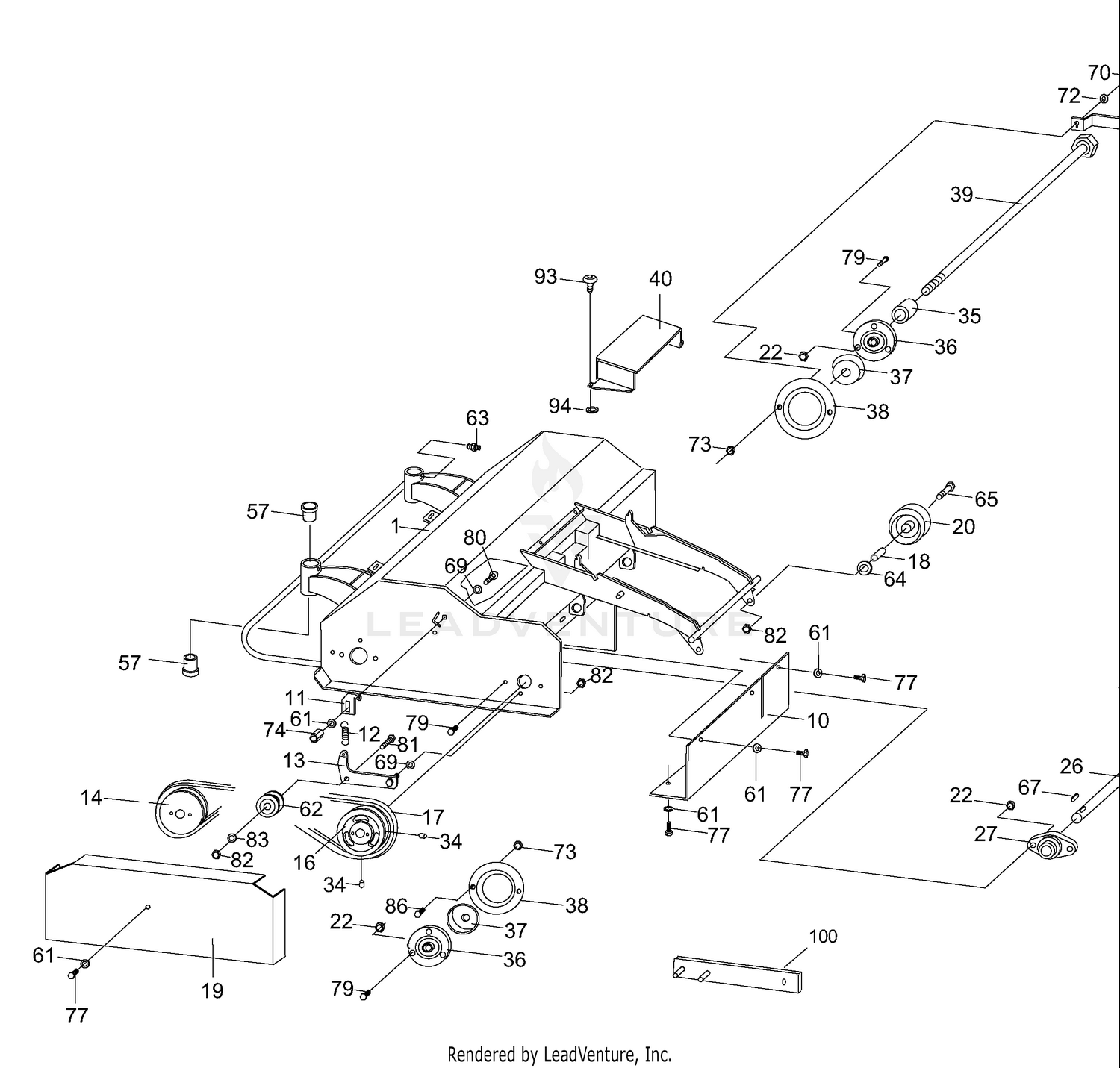

Product Complete Image 1
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 576488501 | FRAME Price: $449.99 |
| 10 | 576488601 | GUARD Price: $17.99 |
| 11 | 576488701 | WELDMENT Price: $7.99 |
| 12 | 535415057 | SPRING Price: $5.99 |
| 13 | 576488801 | ARM Price: $8.99 |
| 14 | 576488901 | PULLEY Price: $22.99 |
| 15 | 576489001 | Shaft Price: Call Us |
| 16 | 535415061 | PULLEY Price: $37.99 |
| 17 | 575879701 | BELT This part replaces 576489101. Price: $37.99 |
| 18 | 505450301 | TUBE This part replaces 576489201. Price: $9.99 |
| 19 | 576489301 | BELT GUARD Price: $74.99 |
| 20 | 591052601 | NEEDS DESCRIPTION This part replaces 576489401. Price: $24.99 |
| 21 | 535415063 | BLADE Price: $4.99 |
| 22 | 531021219 | NUT Price: $2.99 |
| 23 | 531021199 | SCREW Price: $4.99 |
| 24 | 535466610 | GEAR BOX Price: $379.99 |
| 25 | 535415025 | LINK Price: $43.99 |
| 26 | 576489501 | DRIVE SHAFT Price: $34.99 |
| 27 | 531005181 | BEARING Price: $84.99 |
| 28 | 531021170 | PIN Price: $4.99 |
| 29 | 535415029 | SCREW Price: $2.99 |
| 30 | 535415028 | KEY Price: $2.99 |
| 31 | 531021219 | NUT Price: $2.99 |
| 35 | 535415065 | SPACER Price: $4.99 |
| 36 | 576489601 | BEARING Price: $37.99 |
| 37 | 535415067 | PROTECTOR Price: $64.99 |
| 38 | 535415068 | PLATE Price: $54.99 |
| 39 | 576489701 | SCREW Price: $89.99 |
| 40 | 576489801 | GUARD Price: $54.99 |
| 42 | 535415072 | HAND GUARD Price: $12.99 |
| 43 | 576489901 | GUARD Price: $12.99 |
| 44 | 576490001 | DUST COVER Price: $1.99 |
| 51 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 52 | 576490101 | WELDMENT Price: $79.99 |
| 53 | 576490201 | WELDMENT Price: $79.99 |
| 54 | 576491401 | COLLAR Price: $22.99 |
| 55 | 531005225 | WASHER Price: $5.99 |
| 56 | 576491501 | PIN Price: $6.99 |
| 57 | 535415082 | BUSHING Price: $6.99 |
| 58 | 531021224 | WASHER Price: $9.99 |
| 61 | 531021184 | WASHER Price: $1.61 |
| 62 | 576491601 | PULLEY Price: $17.99 |
| 63 | 535415086 | NIPPLE Price: $4.99 |
| 64 | 576491701 | WASHER Price: $2.99 |
| 65 | 531021239 | SCREW Price: $6.99 |
| 66 | 535415043 | SCREW Price: $1.99 |
| 67 | 531005220 | KEY Price: $12.99 |
| 68 | 535415089 | Screw Price: Call Us |
| 69 | 531021137 | WASHER Price: $3.99 |
| 70 | 535415036 | SCREW Price: $2.99 |
| 71 | 576491801 | SCREW Price: $0.99 |
| 72 | 535415011 | WASHER Price: $2.99 |
| 73 | 531021198 | NUT Price: $2.99 |
| 74 | 576492001 | COLLAR Price: $20.99 |
| 77 | 531021144 | SCREW Price: $4.99 |
| 79 | 531021146 | SCREW Price: $3.99 |
| 80 | 531005266 | SCREW Price: $4.99 |
| 81 | 535415093 | Screw Price: Call Us |
| 82 | 531021130 | NUT Price: $3.99 |
| 83 | 535415094 | WASHER Price: $2.99 |
| 86 | 531021196 | SCREW Price: $3.99 |
| 90 | 576492101 | RUBBER Price: $74.99 |
| 91 | 576492201 | REINFORCEMENT Price: $28.99 |
| 92 | 531021197 | WASHER Price: $2.99 |
| 93 | 506982601 | SCREW Price: $5.99 |
| 94 | 506559701 | WASHER Price: $4.99 |
| 96 | 576492301 | PULLEY Price: $79.99 |
| 97 | 535466626 | WASHER Price: $17.99 |
| 98 | 725645301 | SCREW Price: $3.99 |
| 99 | 535466627 | KEY Price: $11.99 |
| 100 | 535466667 | KEY Price: $32.99 |
