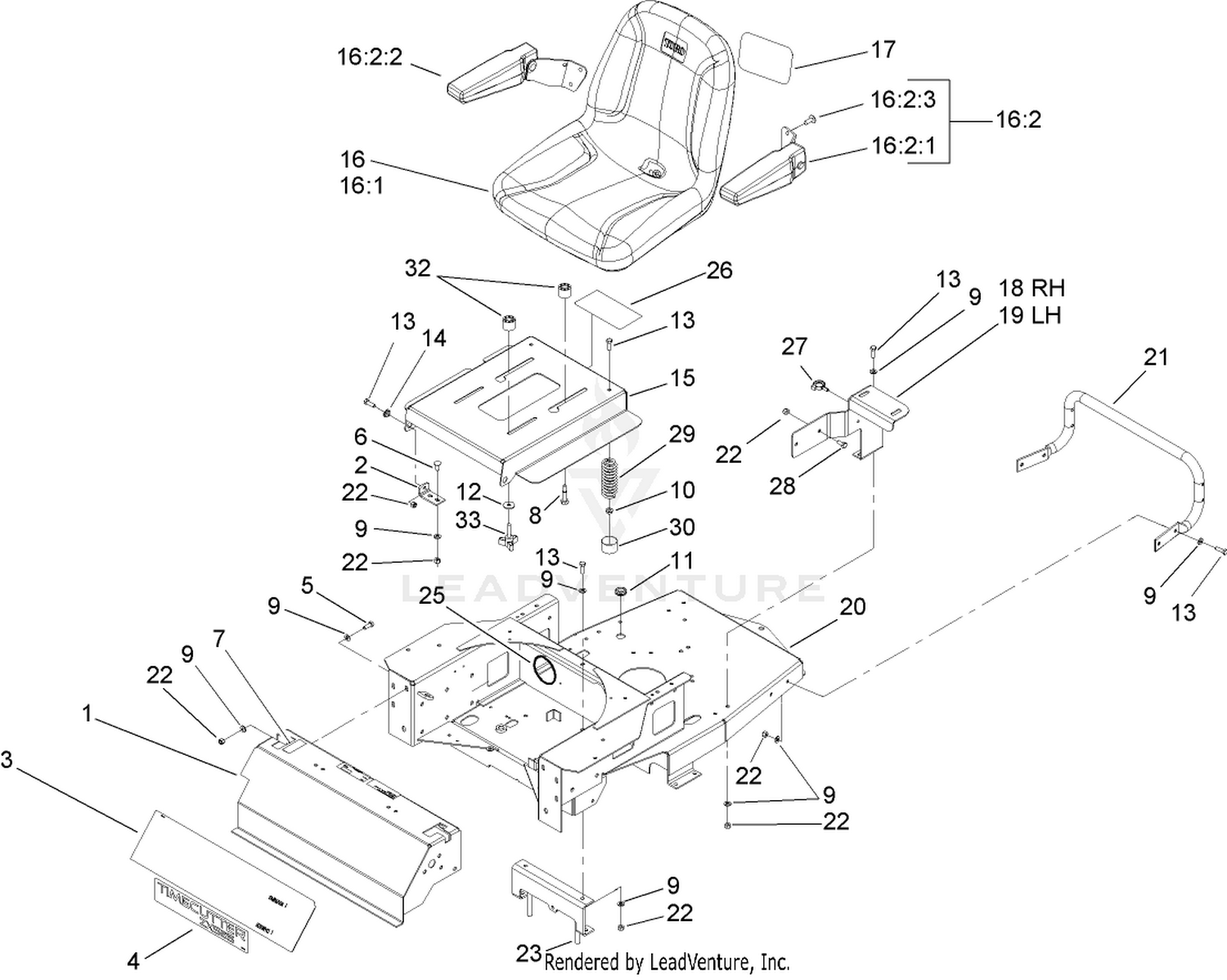

Seat and Rear Frame Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8040-03 | CONSOLE Price: $319.14 |
| 2 | 104-8057-03 | BRACKET-PIVOT Price: $21.27 |
| 3 | 107-2482 | DISCONTINUED Price: Call Us |
| 4 | 108-7132 | DISCONTINUED Price: Call Us |
| 5 | 322-4 | SCREW-HH Price: $0.35 |
| 6 | 3230-23 | SCREW-CARR Price: $0.89 |
| 7 | 99-8936 | DECAL-CONTROL, MOTION Price: $20.99 |
| 8 | 7-0030 | SCREW-SHOULDER, HH Price: $7.99 |
| 9 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 10 | 32128-25 | NUT-HF Price: $3.19 |
| 11 | 237-124 | GROMMET Price: $2.30 |
| 12 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 13 | HY3225 | DISCONTINUED This part replaces 322-5. Price: Call Us |
| 14 | 105503 | BUSHING Price: $0.61 |
| 15 | 108-9572-03 | SEAT PAN ASM Price: $222.65 |
| 16 | 106-6447 | SEAT (WITH ARM RESTS) Price: $502.11 |
| 17 | 93-7340 | DECAL Price: $33.25 |
| 18 | 100-7376-01 | DISCONTINUED Price: Call Us |
| 19 | 100-7368-01 | DISCONTINUED Price: Call Us |
| 20 | 108-2310-01 | DISCONTINUED Price: Call Us |
| 21 | 100-7332-03 | ROD-SUPPORT, REAR Price: $90.04 |
| 22 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 23 | 105-6987-03 | DISCONTINUED Price: Call Us |
| 25 | 105-1854 | COVER-CONDUIT Price: $1.05 |
| 26 | 107-2474 | DISCONTINUED Price: Call Us |
| 27 | 105-1853 | CLAMP-HOSE Price: $3.49 |
| 28 | 322-3 | SCREW-HH Price: $0.79 |
| 29 | 92-7054 | SPRING-COMPRESSION Price: $13.32 |
| 30 | 701178 | CAP-PROTECTOR Price: $1.45 |
| 32 | 108-2327 | SPACER Price: $1.31 |
