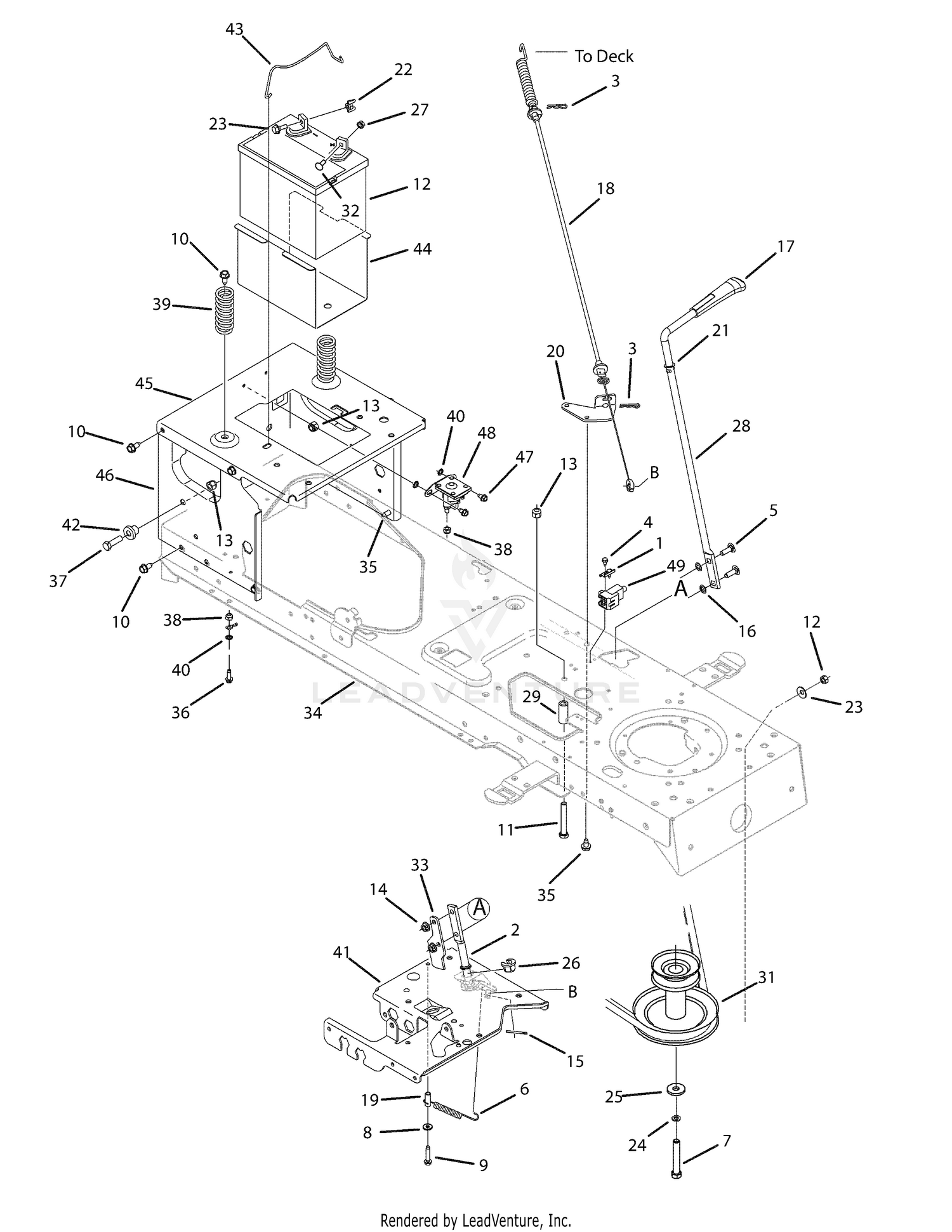

| Ref | Part Number | Description |
|---|
| 1 |
17962 |
Plate, Switch Price: $4.36 |
| 2 |
947-04036A |
Lever Assembly, Engagement This part replaces 647-04036A. Price: $37.99 |
| 3 |
714-0145 |
Click Pin Price: $4.42 |
| 4 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 5 |
710-0276 |
Screw, Carriage, 5/16-18, 1.00 Price: $3.68 |
| 6 |
732-04248 |
Extension Spring, .38 OD x 3.9 Lg Price: $9.32 |
| 7 |
710-04377 |
HHCS, 7/16-20 x 2.75 This part replaces 710-04607. Price: $9.74 |
| 7 |
710-04608 |
Screw, 7/16-20, 3.25 42" Deck Price: $5.95 |
| 8 |
736-0173 |
Washer, Flat, .28 x .74 x .063 Price: $3.76 |
| 9 |
710-0778 |
Screw, 1/4-20 x 1.50 Price: $3.90 |
| 10 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 11 |
710-3011 |
Screw, 3/8-16 x 2.25 Price: $6.49 |
| 12 |
925-1707D |
BATTERY Not Available This part replaces 725-1737A. Price: |
| 13 |
712-04065 |
Nut, Flange Lock, 3/8-16, GrF Price: $3.68 |
| 14 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 15 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 Price: $3.48 |
| 16 |
726-0201 |
Nut, Speed, .3125 ID Price: $6.01 |
| 17 |
731-2111B |
PTO KNOB Not Available Price: |
| 18 |
918-07021B |
TRANSMISSION/MOTOR ASSEMBLY (LH) (PARKER) This part replaces 746-04353A. Price: $3,021.46 |
| 19 |
750-0566A |
Spacer, .260 x .372 x 1.030 Lg. Price: $9.17 |
| 20 |
783-05358 |
Cable Bracket Price: $22.10 |
| 21 |
736-0108 |
Washer, Flat, .510 x .750 x .033 Price: $6.07 |
| 22 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 23 |
738-1132 |
Screw, Shoulder, .250 x .150 Price: $4.47 |
| 24 |
736-0171 |
Washer, Lock, 7/16 Price: $3.86 |
| 25 |
736-0322 |
Washer, Flat, .450 x1.250 x.164 Price: $8.42 |
| 26 |
741-0708 |
Bearing, Flange, Hex Split .500 ID Price: $3.90 |
| 27 |
712-0271 |
Nut, Sems, 1/4-20 Price: $3.78 |
| 28 |
747-04470 |
DECK ENGAGEMENT HANDLE Not Available Price: |
| 29 |
748-0415B |
SPACER .385ID x 1.54" Not Available Price: |
| 30 |
710-1260A |
Screw, 5/16-18 x .750 Price: $3.34 |
| 31 |
756-04196A |
Engine Pulley, 3.39 x 6.12 This part replaces 756-04196. Price: $79.88 |
| 31 |
756-04207A |
ENGINE PULLEY 3.39 x 6.12 DIA Not Available Price: |
| 32 |
710-04666 |
Hex Head Flange Screw Price: $6.04 |
| 33 |
783-0744A |
Stop Bracket, Engagement Price: $36.29 |
| 34 |
683-04173B |
LOWER FRAME ASSEMBLY Not Available Price: |
| 35 |
710-0607 |
Screw, 5/16-18, 0.500 Price: $6.06 |
| 36 |
710-0642 |
Screw, 1/4-20, 0.750 Price: $4.05 |
| 37 |
710-3005 |
Screw, 3/8-16, 1.25, Gr5 Price: $3.61 |
| 38 |
712-04064 |
Nut, Flange Lock, 1/4-20, GrF Price: $3.64 |
| 39 |
732-04035 |
Spring, Compr., 1.28 OD x 3.125 Price: $9.61 |
| 40 |
736-0222 |
Washer, Lock, 1/4, External Price: $5.07 |
| 41 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-04612. Price: $78.74 |
| 42 |
738-04058 |
Spacer, Shoulder, .38 x 1.0 x .70 Price: $3.86 |
| 43 |
747-04121A |
Hold Rod, Battery Price: $5.52 |
| 44 |
783-0349 |
BATTERY TRAY Not Available Price: |
| 45 |
783-04329A |
SEAT BRACKET Not Available Price: |
| 46 |
783-04809C |
UPPER FRAME Not Available Price: |
| 47 |
710-0599 |
Screw, 1/4-20, 0.50 Price: $3.86 |
