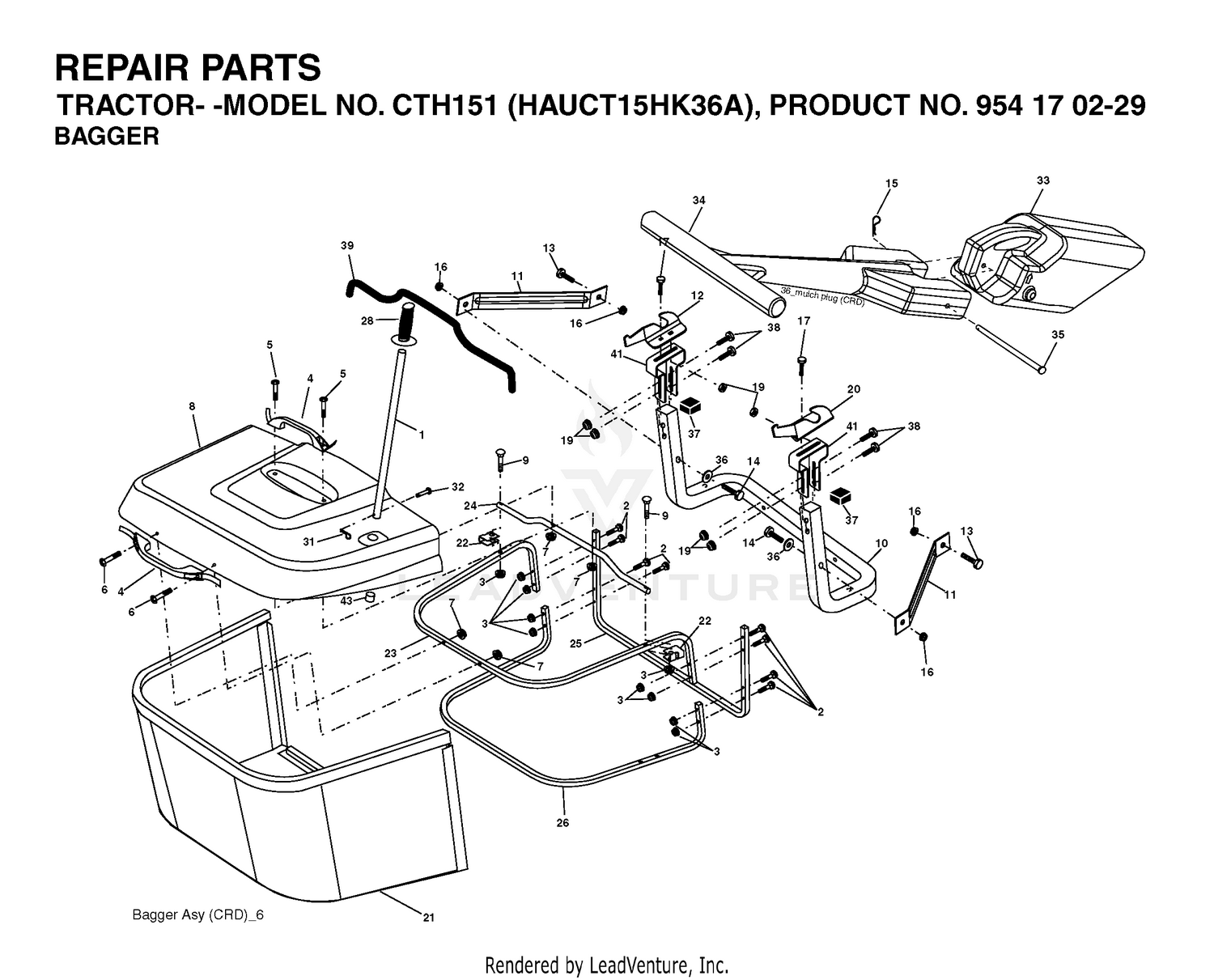

| Ref | Part Number | Description |
|---|
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
127-0495 |
STARTER ASM Price: $920.85 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
100-2181 |
STARTER YOKE ASM Price: $102.34 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
532180880 |
GRASS BAG Price: $130.99 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
532180124 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 30 |
100-2222 |
HOLDER ASM Price: $23.90 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
583448501 |
MULCHING.PLUG.92.CRD.NON-TEX This part replaces 532165571. Price: $19.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
127-0415 |
SPRING-BRUSH Price: $4.65 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 40 |
100-2182 |
ARMATURE ASM Price: $204.81 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 45 |
98-9412 |
BEARING-BALL Price: $14.99 |
| 47 |
98-9411 |
BEARING-BALL Price: $14.99 |
| 50 |
100-2185 |
STARTER CLUTCH ASM Price: $148.04 |
| 60 |
127-0490 |
STARTER HOUSING ASM Price: $198.30 |
| 70 |
100-2183 |
BEARING Price: $2.78 |
| 80 |
127-0449 |
FRAME ASM Price: $122.82 |
| 90 |
100-2213 |
COVER Price: $5.38 |
| 100 |
100-2223 |
BEARING ASM Price: $19.21 |
| 105 |
127-0414 |
BEARING Price: $4.84 |
| 110 |
100-2187 |
STARTER SHAFT ASM Price: $40.93 |
| 120 |
100-2220 |
GEAR Price: $24.46 |
| 130 |
100-2221 |
GEAR Price: $66.83 |
| 135 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 140 |
100-2218 |
LEVER Price: $7.56 |
| 150 |
127-0448 |
SWITCH-MAGNETIC Price: $250.65 |
| 160 |
100-2219 |
RING-SNAP Price: $9.60 |
| 165 |
112-2833 |
GEAR-PINION Price: $123.77 |
| 170 |
100-2212 |
RING-SNAP Price: $5.84 |
| 180 |
100-2216 |
COLLAR Price: $14.55 |
| 190 |
100-2224 |
WASHER-PLAIN Price: $5.80 |
| 200 |
100-2225 |
WASHER-PLAIN Price: $2.44 |
| 210 |
100-2226 |
WASHER-PLAIN Price: $2.44 |
| 220 |
100-2227 |
PLATE Price: $14.26 |
| 230 |
99-8371 |
NUT-HEX Price: $3.75 |
| 240 |
100-1813 |
NUT Price: $2.05 |
| 250 |
100-2210 |
BOLT-THROUGH Price: $3.71 |
