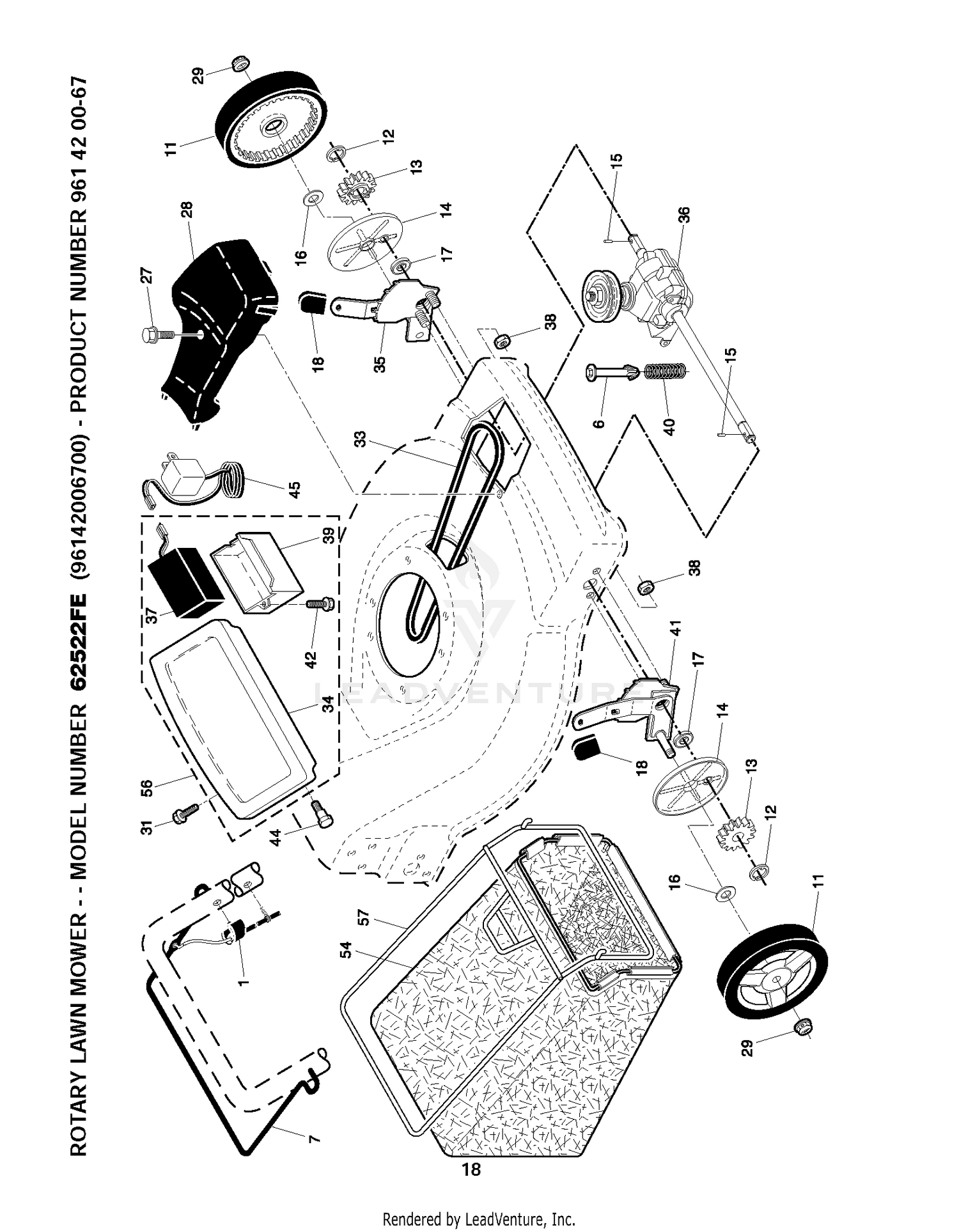

| Ref | Part Number | Description |
|---|
| 1 |
532194653 |
CONTROL.DRIVE.S/SPEED.FWGD Price: $22.99 |
| 6 |
532150495 |
SPRING RETAINER Price: $3.99 |
| 7 |
532199093 |
BAIL.CONT.DR.S/S.ROUND.ORG Price: $20.99 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532174719 |
BOLT SHOULDER 3/8 -16X1 Price: $7.99 |
| 29 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 31 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 33 |
532157769 |
KIT.SERVICE.BELT/SPRING. This part replaces 532146527. Price: $14.99 |
| 34 |
532411190 |
PANEL.TRIM.21.FWGD.ES Price: $32.99 |
| 35 |
532438485 |
KIT ADJUSTER ASM.438151. This part replaces 532424201. Price: $34.99 |
| 36 |
532415226 |
TRANSMISSION.22.FGD/W/PULLEY Price: $69.99 |
| 37 |
584353901 |
BATTERY.12V.22+RWGD.AGM This part replaces 532189589. Price: $84.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 39 |
532186237 |
BOX.BATTERY.TRIM Price: $5.99 |
| 40 |
532137090 |
SPRING.EXTENSION Price: $4.99 |
| 41 |
532438486 |
KIT ADJUSTER ASM.438148 This part replaces 532424200. Price: $38.99 |
| 42 |
817411308 |
SCREW.HWH.13-16X.50 Price: $2.99 |
| 44 |
532175551 |
SCREW.SHOULDER.HH.10X.281X.6 Price: $2.99 |
| 45 |
597186301 |
Chargers This part replaces 532190097. Price: $32.99 |
| 54 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 57 |
532411952 |
FRAME.GBAG.22.EZ.EMPTY.SC Price: $29.99 |
