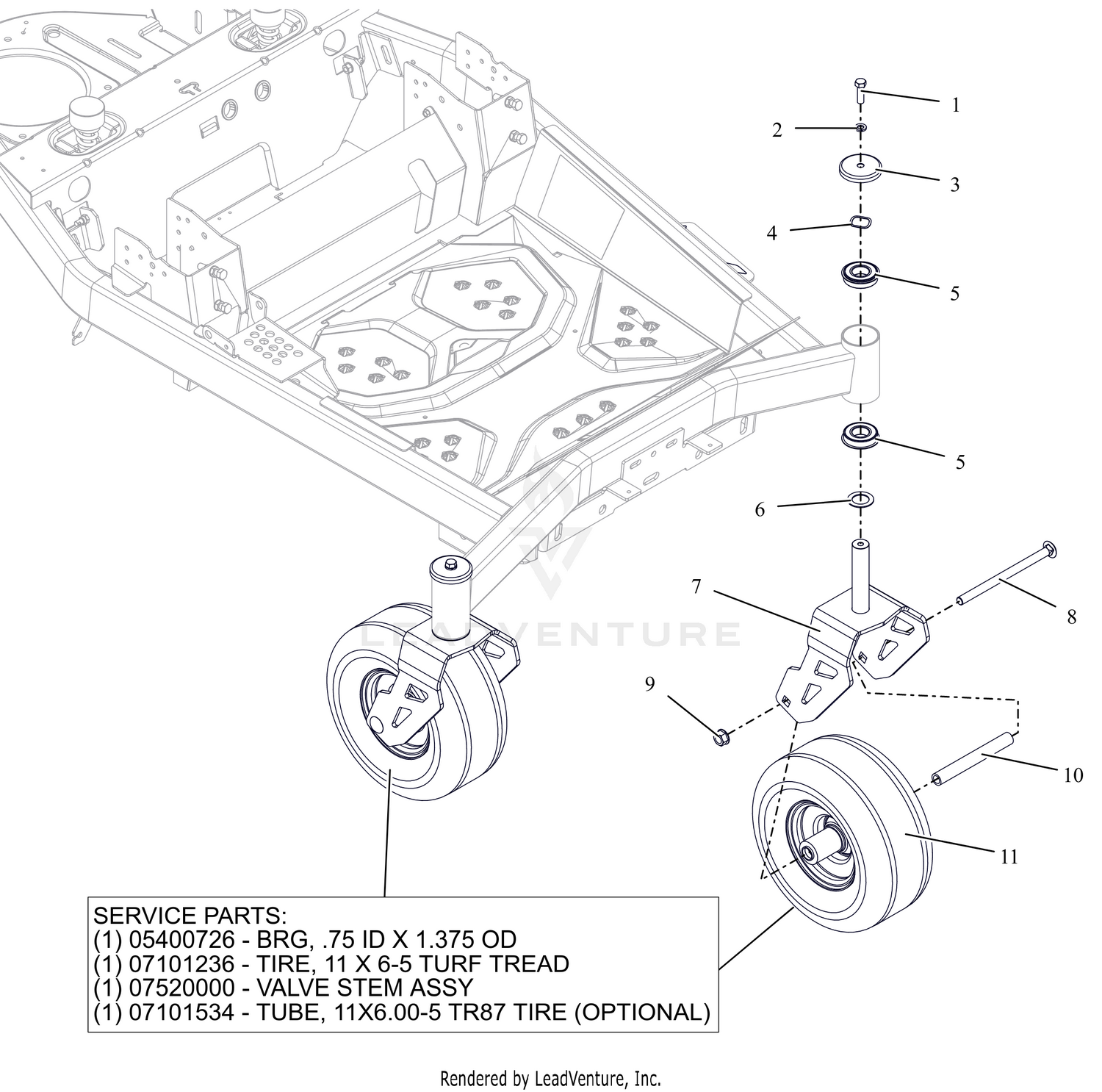

| Ref | Part Number | Description |
|---|
| 1 |
05902203 |
BLT- HEX .38-16X1.25 G5 ZB500 Price: $2.45 |
| 2 |
06300130 |
WSHR-LK-REG .375X.094 ZB500 Price: $1.45 |
| 3 |
09692800 |
SHIELD, AXLE BEARING Price: $6.45 |
| 4 |
06401030 |
WSHR-WAVE 1.0X1.25X.028 .145FH Price: $5.45 |
| 5 |
05400728 |
BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING Price: $12.45 |
| 6 |
06416600 |
WSHR-HRD-THRS 1.007X1.542X.062 Price: $2.95 |
| 7 |
09657959 |
WLDMT, CASTER FORK (ORANGE) Price: $63.95 |
| 8 |
06200509 |
BLT-RHSN .50-13X7.50 G5 ZCC NS Price: $6.45 |
| 9 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 10 |
00853400 |
SPACER, FRONT WHEEL (WIDE 6.0) Price: $13.45 |
| 11 |
07101505 |
ASM- WHL/TIRE 11 X 6.00-5 BLACK This part replaces 07101423. Price: $69.95 |
