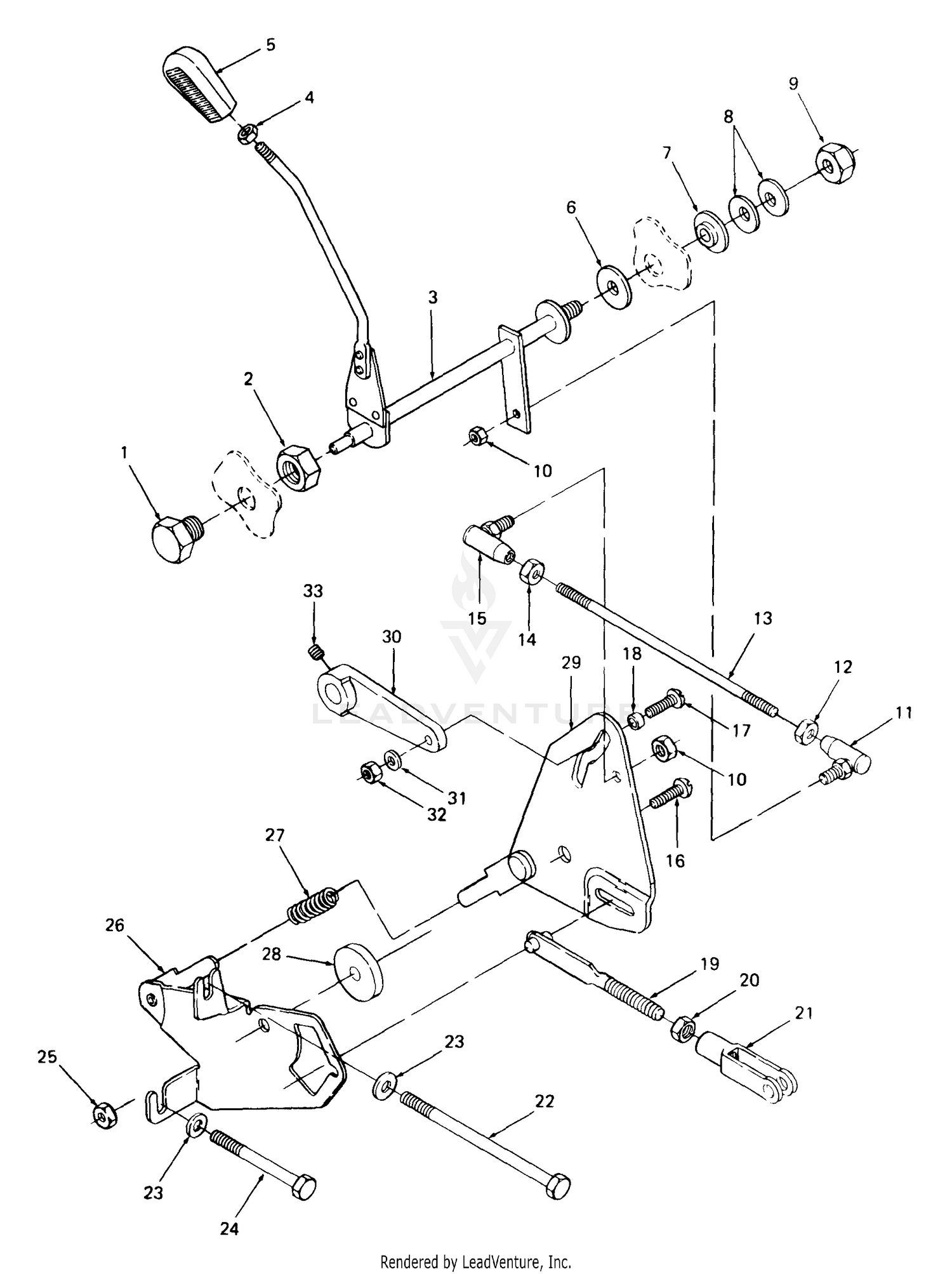

| Ref | Part Number | Description |
|---|
| 1 |
710-3033 |
BOLT Not Available Price: |
| 2 |
712-3026 |
Nut, Hex Jam, 3/4-16 GR5 Price: $4.29 |
| 3 |
703-1838 |
CROSS SHAFT ASSEMBLY Not Available Price: |
| 4 |
712-3008 |
HEX JAM NUT 3/8-16 GR5 Price: $4.08 |
| 5 |
731-3108 |
KNOB-SPEED Not Available Price: |
| 6 |
723-3055 |
FRICTION WASHER Not Available Price: |
| 7 |
748-3024 |
SHOULDER SPACER. Not Available Price: |
| 8 |
936-3022 |
BELL WASHER Not Available This part replaces 736-3022. Price: |
| 9 |
712-3053 |
L-NUT 1/2-20 Not Available Price: |
| 10 |
712-0237 |
Nut, Hex Center Lock, 5/16-24 This part replaces 712-0305. Price: $4.37 |
| 11 |
923-3011 |
JOINT-BALL-5/16-24 (R.H.) This part replaces 723-3011. Price: $32.80 |
| 12 |
712-3025 |
Nut, Hex Jam, 5/16-24 Trd Price: $6.24 |
| 13 |
747-3157 |
CONNECTING ROD Not Available Price: |
| 14 |
912-3045 |
Hex Jam Nut 5/16 Thd. L.H. Not Available This part replaces 712-3045. Price: |
| 15 |
923-3012 |
Ball Joint 5/16-24 Thd. This part replaces 723-3012. Price: $37.06 |
| 16 |
710-0971 |
SCREW 5/16-18 x 1 Not Available Price: |
| 17 |
710-0166A |
Screw, Machine, 1/4-20 x 1.00 This part replaces 710-0166. Price: $6.24 |
| 18 |
750-3062 |
SPACER-3/8 Not Available Price: |
| 19 |
703-2105 |
ROD Not Available Price: |
| 20 |
912-3001 |
Nut, Jam, 3/8-24 This part replaces 712-3001. Price: $5.94 |
| 21 |
719-3013 |
Clevis Adjustment Price: $24.95 |
| 22 |
710-3226 |
Bolt, Hex Patch, 5/16-18 X 5.5 Lg GR5 Price: $12.70 |
| 23 |
936-3008 |
Washer, Flat, .344 x .750 x .120 This part replaces 736-3008. Price: $6.24 |
| 24 |
710-3227 |
HEX SCREW PATCH 5/16-18 x 3 Not Available Price: |
| 25 |
712-3007 |
Nut, Hex Jam, 5/16 Price: $6.06 |
| 26 |
903-0010 |
CAM ARM ASSEMBLY Not Available This part replaces 603-0010. Price: |
| 27 |
3220-6 |
NUT-JAM Price: $1.25 |
| 27 |
932-0330 |
COMPRESSION SPRING Not Available This part replaces 732-0330. Price: |
| 28 |
738-3094 |
SHOULDER SPACER Not Available Price: |
| 28 |
92-7315 |
SEAL-UPPER Price: $8.43 |
| 29 |
603-0011 |
CAM ASSEMBLY RETURN Not Available Price: |
| 30 |
748-3043 |
CONTROL-PINTLE Not Available Price: |
| 31 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 32 |
712-3006 |
HEX NUT Price: $4.05 |
| 36 |
92-7310 |
BOLT-SPECIAL Price: $107.70 |
| 38 |
92-7316 |
NUT-PUSH ON Price: $1.03 |
| 39 |
92-7317 |
SEAL-FOAM, UPPER COVER Price: $12.25 |
