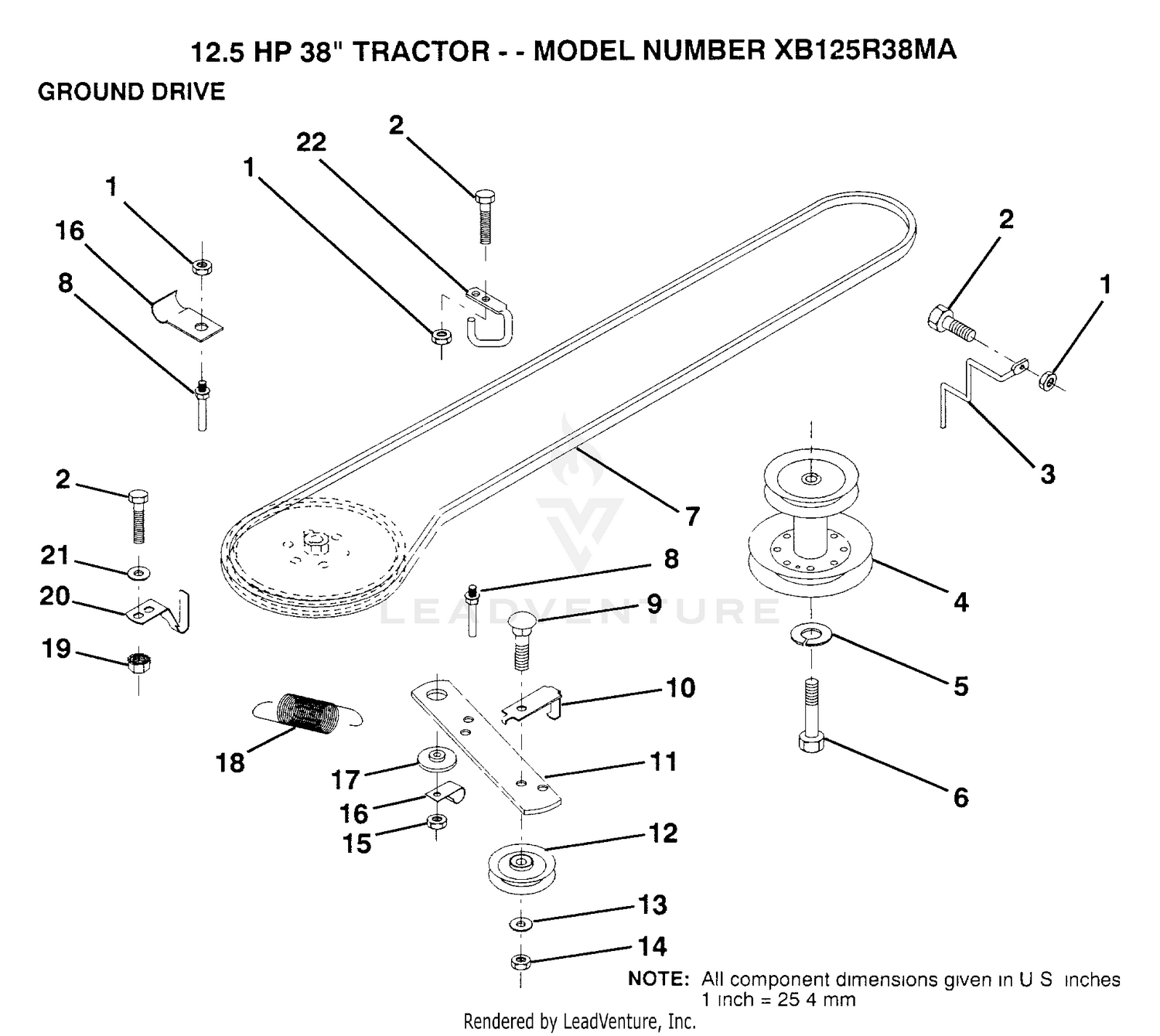

| Ref | Part Number | Description |
|---|
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 1 |
73680500 |
SUB= 73690500 Price: Call Us |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 2 |
74760512 |
BOLT Price: Call Us |
| 3 |
132946 |
KEEPER MWR DR BLT Price: Call Us |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 4 |
135036 |
SUB= 138029 Price: Call Us |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
10040700 |
LOCKWASHER Price: Call Us |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
71130748 |
BOLT Price: Call Us |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
124525X |
BELT Price: Call Us |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 9 |
72140612 |
BOLT Price: Call Us |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 11 |
123395X |
SUB= 140911 Price: Call Us |
| 12 |
4859J |
SUB= 123674X Price: Call Us |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
19131316 |
WASHER Price: Call Us |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 14 |
73930600 |
LOCKNUT Price: Call Us |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 15 |
73680600 |
SUB= 73690600 Price: Call Us |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
122052X |
SPACER RETAINER Price: Call Us |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 18 |
131459 |
SUB= 532131459 Price: Call Us |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
73510500 |
NUT Price: Call Us |
| 20 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 21 |
100-3893-03 |
TUBE-CONTROL, PUMP Price: $214.54 |
| 21 |
19111016 |
WASHER Price: Call Us |
| 22 |
3220-3 |
NUT-HJ Price: $0.28 |
| 23 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
323-9 |
SCREW-HH Price: $1.29 |
| 26 |
5-0652 |
SPACER Price: $5.35 |
| 27 |
323-29 |
SCREW-HH Price: $0.42 |
| 28 |
60-5700 |
SPRING Price: $27.02 |
| 29 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 30 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 31 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 32 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 33 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 34 |
3256-5 |
WASHER-FLAT Price: $0.27 |
