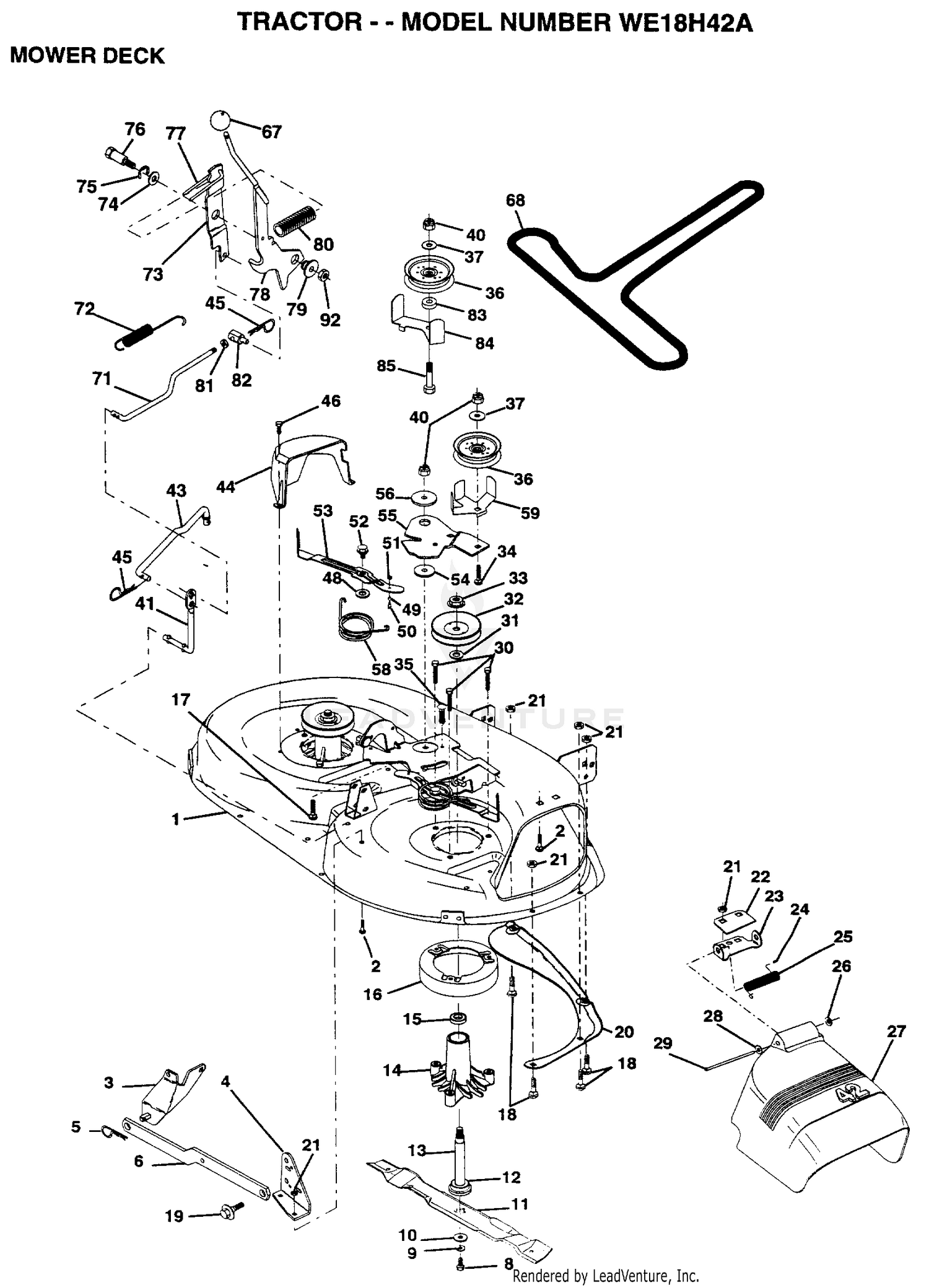

| Ref | Part Number | Description |
|---|
| 1 |
144393 |
DECK.WELD.42. Price: Call Us |
| 1 |
98-0647 |
HOSE-HYD, TRACTION, RH (LOWER) Price: $162.42 |
| 2 |
63-4050 |
FITTING-HYD Price: $137.82 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
70-7130 |
LINE-TUBE Price: $141.98 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
98-0646 |
HOSE-HYD, TRACTION, RH (UPPER) Price: $184.17 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 5 |
83-1200 |
TUBE-TRACTION, LH (LOWER) Price: $110.49 |
| 6 |
107-9519 |
HYD HOSE ASM Price: $83.34 |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 7 |
98-0649 |
HOSE-HYD Price: $67.35 |
| 8 |
340-138 |
FITTING-HYD, 45 DEG Price: $31.15 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
115-5296 |
NEEDLE VALVE ASM This part replaces 93-2556. Price: $427.28 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
340-18 |
FITTING-HYD, 90 DEG Price: $38.93 |
| 11 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
98-2150 |
HOSE-HYD Price: $75.17 |
| 15 |
105-3800 |
CONTROL VALVE ASM Price: $4,089.31 |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
304-61 |
CLAMP-HOSE Price: $6.08 |
| 17 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 18 |
72140505 |
BOLT Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
83-1670 |
FITTING ASM Price: $128.24 |
| 20 |
136888 |
SUB= 918136888 Price: Call Us |
| 20 |
95-5986 |
HYD HOSE ASM Price: $77.25 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
134753 |
STIFFENER BRKT Price: Call Us |
| 22 |
340-16 |
FITTING-HYD, 90 DEG Price: $54.23 |
| 23 |
131267 |
DEFLECTOR BRKT Price: Call Us |
| 23 |
71-0990 |
ORIFICE ( .0465 ONE-WAY) Price: $56.83 |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 24 |
63-4080 |
FITTING-MANIFOLD Price: $236.16 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
322-14 |
SCREW-HH Price: $1.01 |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 26 |
63-4030 |
TUBE-HYD Price: $148.62 |
| 27 |
130968 |
DEFLECTOR.SHIELD Price: Call Us |
| 27 |
63-4020 |
TUBE-HYD Price: $176.67 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
340-101 |
FITTING-HYD, 45 DEG Price: $31.00 |
| 29 |
131491 |
HINGE ROD Price: Call Us |
| 30 |
138776 |
SUB= 157722 Price: Call Us |
| 30 |
95-5987 |
HOSE-HYD Price: $68.07 |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
12-3270 |
SCREW Price: $3.09 |
| 32 |
129861 |
SUB= 153535 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 34 |
72110614 |
BOLT Price: Call Us |
| 34 |
98-0648 |
HYD HOSE ASM Price: $166.79 |
| 35 |
133835 |
XMAS TREE FASTNER Price: Call Us |
| 35 |
98-2153 |
HYD HOSE ASM Price: $126.10 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
2412-41 |
CLAMP-R Price: $4.82 |
| 37 |
19131316 |
WASHER Price: Call Us |
| 37 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 38 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 39 |
83-1890 |
SWITCH-BALL Price: $63.08 |
| 40 |
38-0410 |
NUT-HEX Price: $5.77 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 43 |
140083 |
ROD CLUTCH W/NIBS Price: Call Us |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 48 |
133944 |
HARD SMALL WASHER Price: Call Us |
| 49 |
133940 |
SUB= 151785 Price: Call Us |
| 50 |
131340 |
SHOULDER BOLT Price: Call Us |
| 51 |
69180 |
LOCKNUT Price: Call Us |
| 52 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 53 |
131845 |
BRAKE PAD ARM ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
140084 |
SUB= 151785 Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 58 |
140086 |
SPRING TORSN BRAK Price: Call Us |
| 59 |
141043 |
GUARD IDLER TUV Price: Call Us |
| 67 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
146927 |
SPRING.EXT.RETURN Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
140334 |
SUB= 154810 Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
128759 |
SUB= 918128759 Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 83 |
120958X |
WASHER Price: Call Us |
| 84 |
144394 |
SUB= 156084 Price: Call Us |
| 85 |
72140618 |
BOLT RDHD 3/8-16 Price: Call Us |
| 92 |
73680600 |
SUB= 73690600 Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
