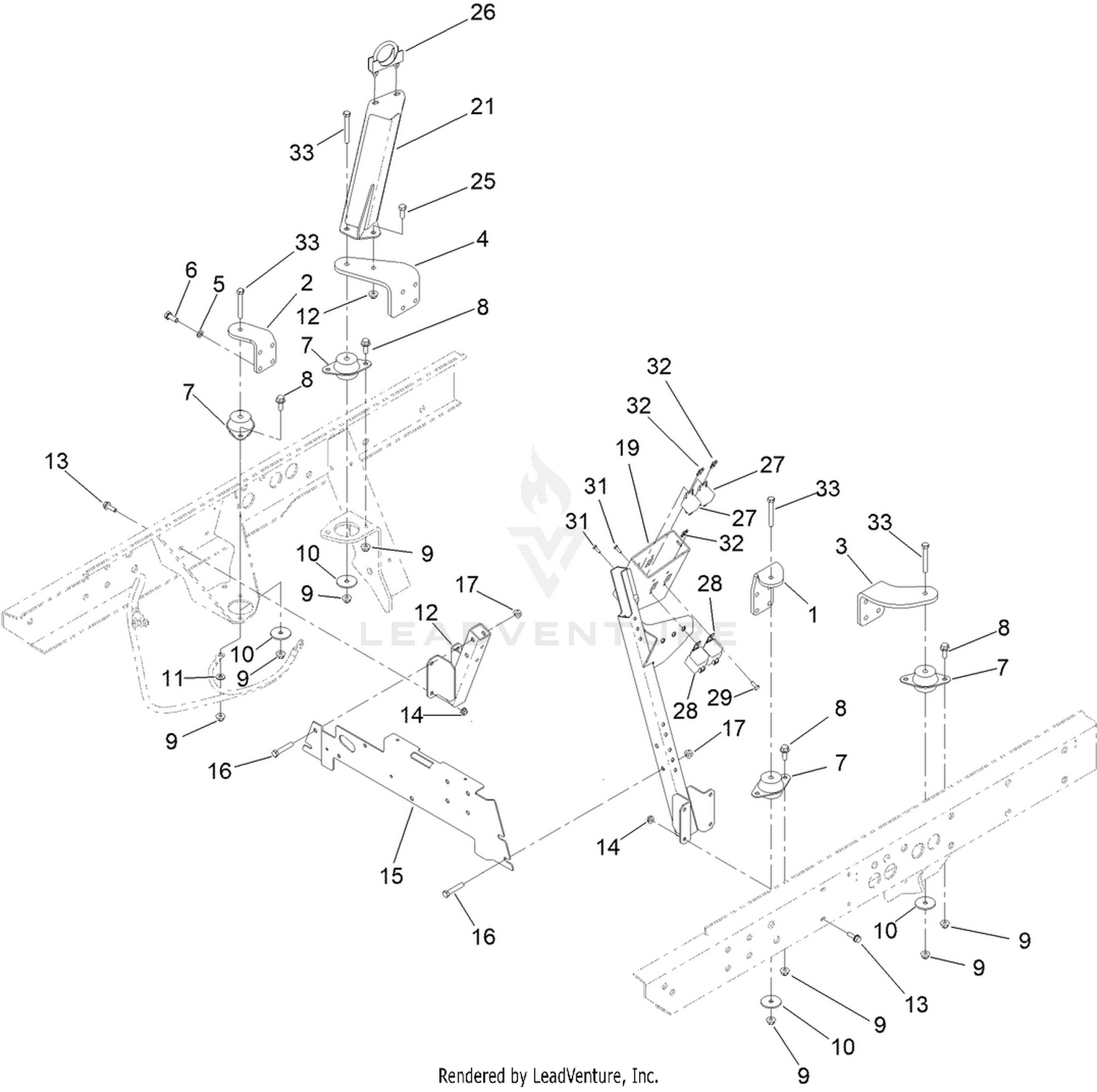

Engine Mount Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-8001-0P | MOUNT-ENGINE,LH,FRONT Price: $32.33 |
| 2 | 120-8002-0P | MOUNT-ENGINE, RH FRONT Price: $26.44 |
| 3 | 120-8003-0P | MOUNT-ENGINE, LH REAR Price: $41.80 |
| 4 | 120-8004-0P | MOUNT-ENGINE, RH REAR Price: $43.35 |
| 5 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 6 | 33115-025 | SCREW-HH Price: $0.61 |
| 7 | 53-9682 | MOUNT-ENGINE Price: $108.69 |
| 8 | 3234-11 | SCREW-HHF Price: $1.23 |
| 9 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 10 | 63-7400 | WASHER-REBOUND Price: $1.70 |
| 11 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 12 | 104-5420-0P | BATTERY SUPPORT ASM [PRIMED] Price: $125.91 |
| 13 | 3234-29 | SCREW-HHF Price: $1.84 |
| 14 | 32128-20 | NUT-HF Price: $0.99 |
| 15 | 114-8134-0P | BRACKET-MANIFOLD, MOW Price: Call Us |
| 16 | 323-10 | SCREW-HH Price: $0.89 |
| 17 | 32128-21 | NUT-HF Price: $0.39 |
| 19 | 136-3615-0P | A/C MOUNT ASM [PRIMED] Price: $295.77 |
| 21 | 121-3098-0P | TAILPIPE SUPPORT ASM [PRIMED] Price: $113.25 |
| 25 | 323-6 | SCREW-HH Price: $0.66 |
| 26 | 18-2130 | CLAMP Price: $5.63 |
| 27 | 99-7435 | RELAY Price: $32.43 |
| 28 | 99-7430 | RELAY-MINI Price: $22.99 |
| 29 | 321-3 | SCREW-HH Price: $0.28 |
| 31 | 3290-134 | SCREW Price: $0.27 |
| 32 | 3290-277 | NUT-SPEED Price: $0.61 |
