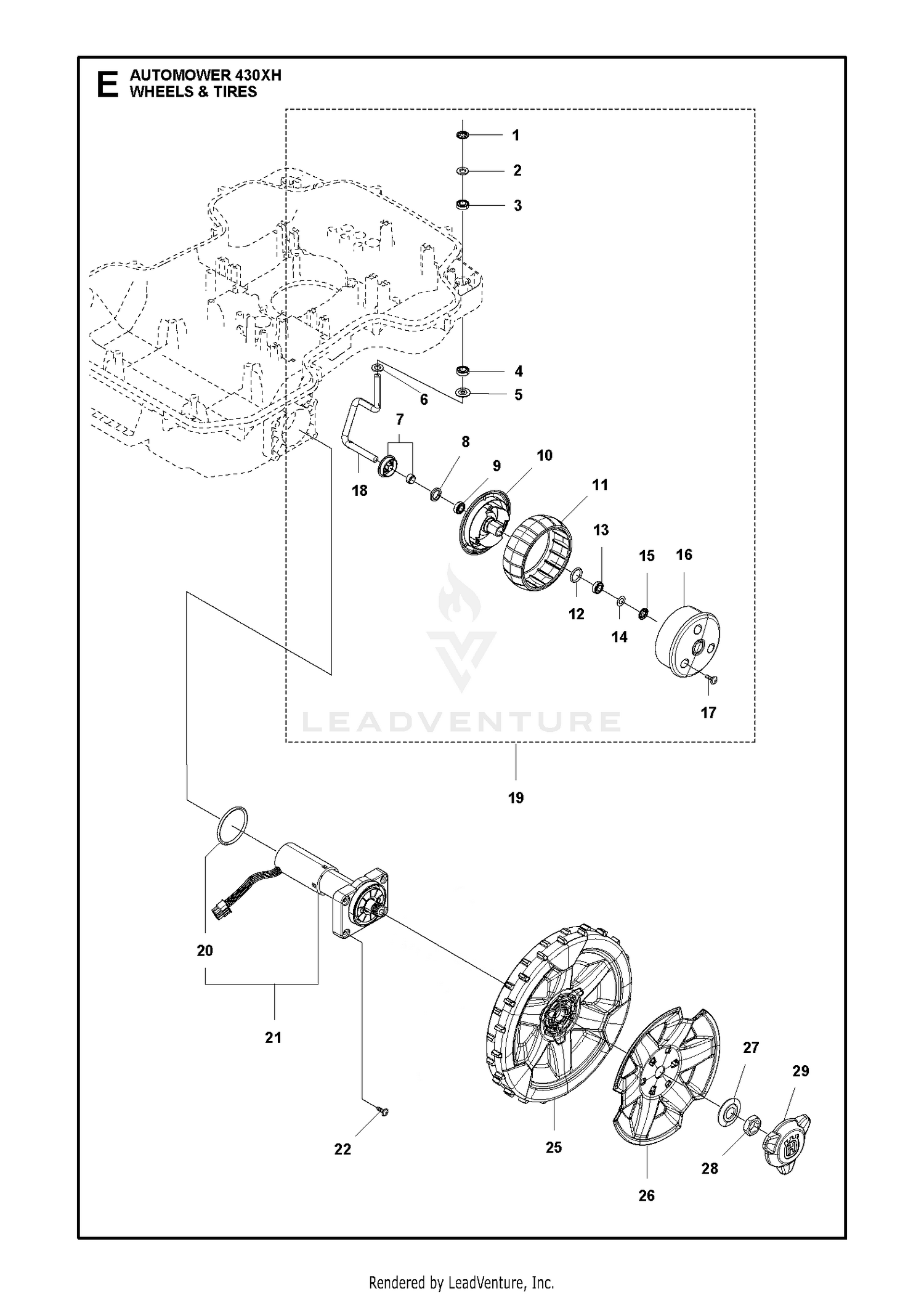

| Ref | Part Number | Description |
|---|
| 1 |
122-0416 |
HARNESS-WIRE, MAIN Price: $703.07 |
| 1 |
576019302 |
LOCKWASHER PUSH-ON TYPE P 8 BV Price: $3.99 |
| 2 |
3290-134 |
SCREW Price: $0.27 |
| 2 |
580764601 |
WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 3 |
108-8657 |
HARNESS-WIRE, SEAT Price: $19.96 |
| 3 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 4 |
3290-148 |
NUT-HF Price: $0.25 |
| 4 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 5 |
535087803 |
WASHER FRONT WHEEL CENTER HOLE Price: $2.99 |
| 6 |
580764601 |
WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 7 |
581621501 |
SHIELD KIT Price: $6.99 |
| 8 |
580487101 |
SEALING 12X18X3 Price: $4.99 |
| 9 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 12 |
580445101 |
O-RING 2,62X15,54 Price: $3.99 |
| 13 |
580605101 |
BALL BEARING SINGLE ROW S688 Price: $6.99 |
| 14 |
580764601 |
WASHER DIN 988 13X8X0.5 Price: $2.99 |
| 15 |
576019302 |
LOCKWASHER PUSH-ON TYPE P 8 BV Price: $3.99 |
| 18 |
580336102 |
SPINDLE This part replaces 580336101. Price: $9.99 |
| 20 |
580443902 |
O-RING LIGHT GREY Price: $3.99 |
| 21 |
581621307 |
MOTOR KIT DRIVE WHEEL P2 This part replaces 581621306. Price: $329.99 |
| 22 |
574450101 |
SCREW ITXPANT Price: $3.99 |
| 26 |
579505702 |
COVER REAR WHEEL NO PAINT This part replaces 579505701. Price: $17.99 |
| 27 |
586210601 |
WASHER WASHER REAR WHEEL 16X40 Price: $5.99 |
| 28 |
731432401 |
HEXAGON THIN NUT Price: $6.99 |
| 29 |
579505502 |
HUB CAP REAR WHEEL NO CENTER P Price: $4.99 |
