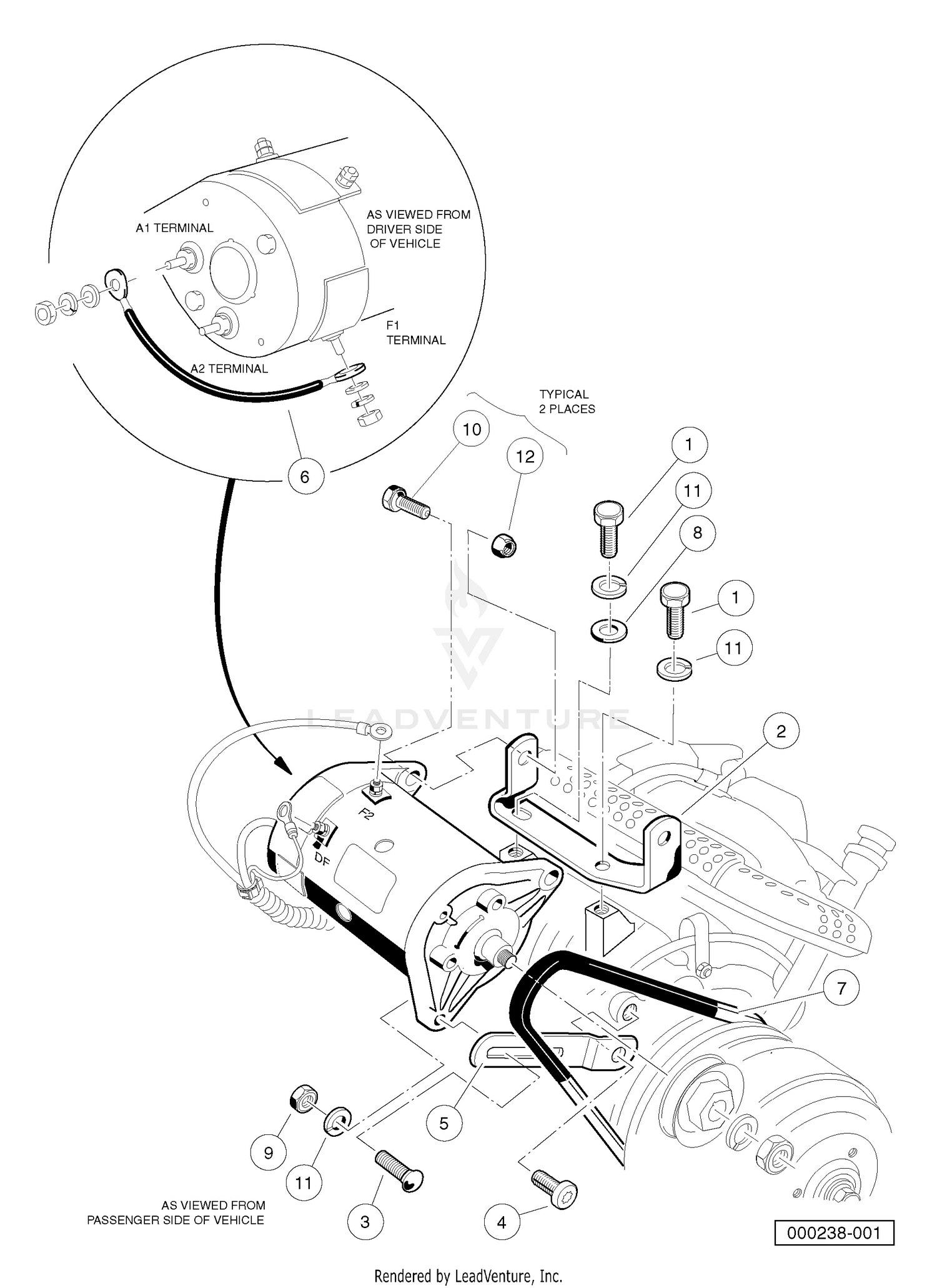

FE290 STARTER/GENERATOR MOUNTING - GASOLINE VEHICLE
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 603000273 | BOLT, 5/16-18 RD HD SQ NECK Price: $2.99 |
| 4 | 603000277 | SCREW, M8-1.25 X 18MM TORX Price: $3.99 |
| 5 | 603000375 | BRACKET, S/G-ADJUSTABLE Price: $24.99 |
| 6 | 603000524 | WIRE ASSY, #6 GREEN Price: $27.99 |
| 7 | 603000589 | BELT, STARTER-GENERATOR Price: $24.99 |
| 8 | 603000065 | WASHER, 5/16 TYPE A FLAT Price: $1.99 |
| 9 | 603000066 | NUT, 5/16-18 HEX Price: $1.99 |
| 10 | 603000059 | SCREW Price: $2.99 |
| 12 | 603000095 | LOCKNUT, 3/8-16 HEX Price: $1.99 |
