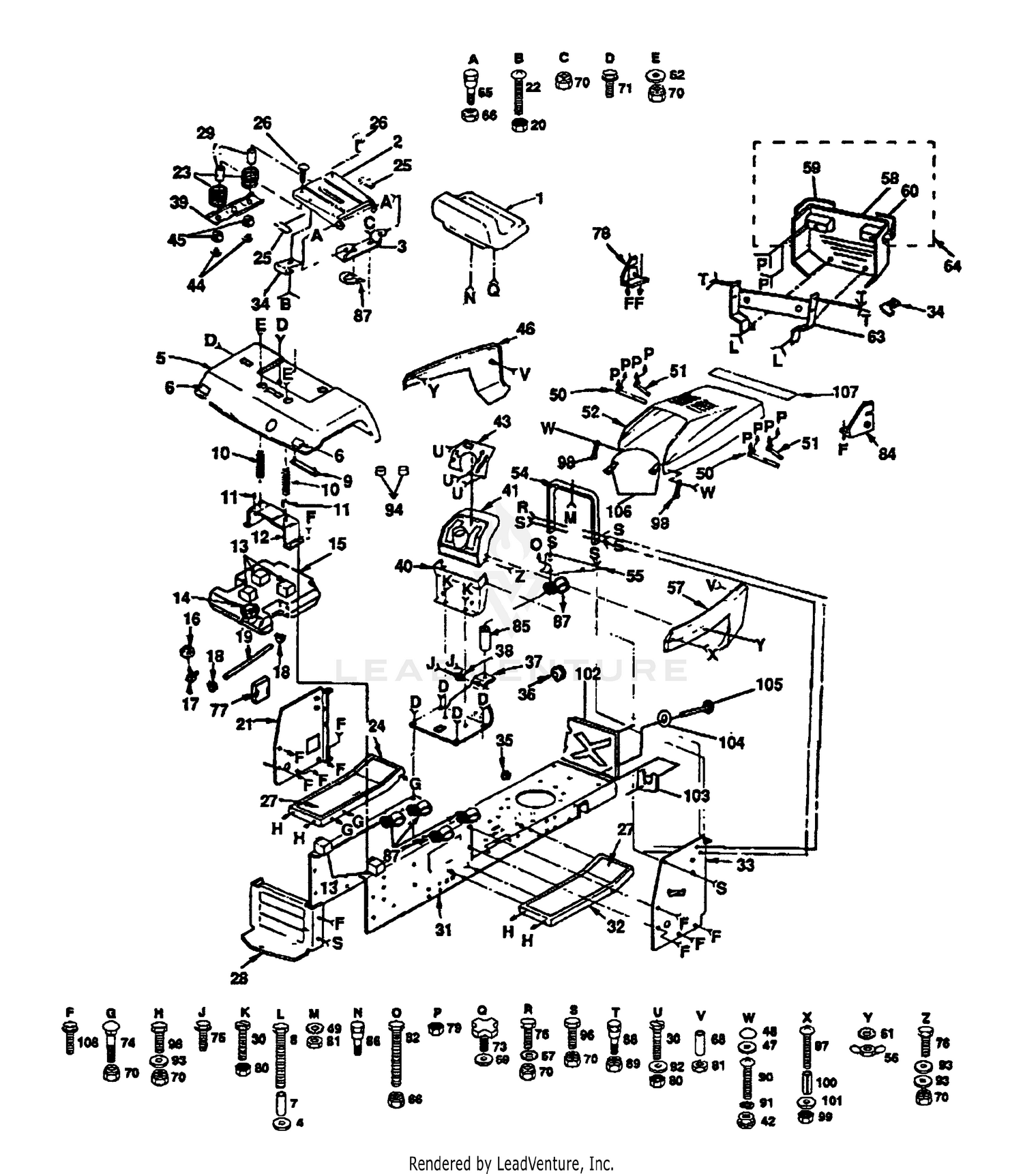

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532124186. Price: $219.99 |
| 2 |
532124294 |
PAN SEAT Price: $14.69 |
| 3 |
532126656 |
BRKT,SEAT PIVOT Price: $5.46 |
| 4 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 5 |
532125110 |
Fender Price: Call Us |
| 6 |
532106202 |
REFLECTOR-TAIL YT Price: $3.99 |
| 7 |
532121235 |
SPACER Price: $2.59 |
| 8 |
874760440 |
BOLT Price: $2.99 |
| 9 |
532140675 |
STRAP This part replaces 532105511. Price: $5.99 |
| 10 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 11 |
532105531 |
NUT-PUSH YT Price: $2.99 |
| 11 |
76-0860 |
SHAFT-COUPLING Price: $688.74 |
| 12 |
532183569 |
BRACKET ASM., FENDER This part replaces 532105509. Price: $9.99 |
| 12 |
76-0850 |
BEARING-THRUST Price: $30.56 |
| 13 |
532006431 |
PAD-SPACER T Price: $2.38 |
| 13 |
76-0960 |
LINK-DRIVE Price: $345.26 |
| 14 |
532124462 |
FUEL CAP ASS'Y Price: $15.99 |
| 14 |
94-3662 |
SCREW-CAP, HH Price: $13.47 |
| 15 |
532106020 |
FUEL TANK LT Price: $55.00 |
| 16 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 17 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 17 |
532008710 |
FUEL TANK STEM GT This part replaces 532124951. Price: $2.52 |
| 18 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 18 |
92-9754 |
PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 19 |
532008542 |
FUEL LINE 42" This part replaces 532124953. Price: $5.99 |
| 20 |
873951000 |
Nut, Keps #10 Price: $6.99 |
| 21 |
532124118 |
PANEL DASH LH NLA Price: $17.94 |
| 22 |
76-0840 |
MANIFOLD Price: $790.28 |
| 22 |
874641008 |
SCREW ** Price: $2.99 |
| 23 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 24 |
532124899 |
ROLL PIN NLA Price: $32.06 |
| 24 |
76-0890 |
END COVER ASM Price: $981.97 |
| 25 |
532121251 |
STRIP FORM Price: $5.46 |
| 26 |
872050411 |
Bolt, Carriage 1/4-20 x 1-1/4 Price: $3.99 |
| 27 |
532108256 |
PAD FOOTREST T Price: $25.99 |
| 28 |
532127866 |
DRAWBAR Price: $45.99 |
| 29 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 30 |
874180512 |
Screw, Mach. Cr. Thd. 5/16-18 x 3/4 Price: $3.99 |
| 31 |
532127166 |
CHASSIS Price: $85.21 |
| 32 |
532145243 |
FOOTREST LT/YT/GT RH This part replaces 532124914. Price: $9.15 |
| 33 |
532110828 |
PANEL LT NLA Price: $17.13 |
| 34 |
532124967 |
CLIP T Price: $5.46 |
| 35 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 36 |
532124934 |
SNAP BUSHING T Price: $5.46 |
| 37 |
532121195 |
SADDLE This part replaces 532124766. Price: $32.96 |
| 38 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532124720. Price: $6.99 |
| 39 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 40 |
532104805 |
DASH LOWER YT NLA Price: $34.49 |
| 41 |
532140452 |
DASH This part replaces 532124182. Price: $32.53 |
| 42 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 43 |
532125147 |
Plate, Dash Price: Call Us |
| 44 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 45 |
532121248 |
BUSHING Price: $4.99 |
| 46 |
532125009 |
PANEL,SIDE LH Price: $39.02 |
| 47 |
532110357 |
WASHER LT Price: $2.99 |
| 48 |
532110356 |
SNAP CAP LT Price: $3.99 |
| 49 |
811050400 |
Washer, Lock, Tooth External 1/4 Price: $5.99 |
| 50 |
532106784 |
STRAP ASSY LT Price: $82.19 |
| 51 |
532104618 |
STRAP ASSY LT Price: $82.19 |
| 52 |
532125454 |
HOOD.HUSQVARNA.ORANGE This part replaces 532125007. Price: $361.99 |
| 54 |
532124130 |
SUPPORT ASS'Y Price: $12.22 |
| 55 |
532106965 |
PLATE SUPPORT T NLA Price: $10.37 |
| 56 |
532146525 |
NUT.WING.LCK.NYL.NOTCH.1/4-20 This part replaces 532123198. Price: $3.99 |
| 57 |
532140677 |
SIDE PANEL RH This part replaces 532125008. Price: $39.61 |
| 58 |
532157236 |
GRILLE.ASM.HUSQVARNA.YTGT This part replaces 532127325. Price: $119.99 |
| 59 |
532157068 |
LENS LH This part replaces 532124250. Price: $13.99 |
| 60 |
532157069 |
LENS.RH.HUSQVARNA.YTGT.CL This part replaces 532124251. Price: $12.99 |
| 61 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811030400. Price: $2.99 |
| 62 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 63 |
532124574 |
SUPPORT ASS'Y Price: $56.10 |
| 65 |
532139888 |
BOLT.SHOULDER.5/16-18 This part replaces 532105529. Price: $3.99 |
| 66 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 67 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 68 |
532001260 |
SPACER NLA Price: $3.84 |
| 69 |
819171912 |
WASHER Price: $3.99 |
| 70 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 71 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 73 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 74 |
872140606 |
Bolt, Carriage 3/8-16 x 3/4 Price: $4.99 |
| 75 |
817211008 |
Screw Slftp #10-16 x 1/2 Ty-Ab This part replaces 817431008. Price: $3.99 |
| 76 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 77 |
532121794 |
COVER ACCESS Price: $3.99 |
| 78 |
532110852 |
SUPPORT LH YTH Price: $3.79 |
| 79 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 80 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 82 |
874760532 |
Bolt, Hex 5/16-18 x 2 Price: $2.99 |
| 84 |
532110853 |
SUPPORT RH YTH Price: $3.74 |
| 85 |
532121236 |
SPACER Price: $2.38 |
| 86 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 87 |
532002751 |
CLIP T This part replaces 532124996. Price: $2.42 |
| 88 |
532007605 |
BOLT This part replaces 532123481. Price: $4.99 |
| 89 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 90 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $7.99 |
| 91 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 92 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 93 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 94 |
532124238 |
CAP SPRING Price: $4.99 |
| 96 |
874760612 |
BOLT Price: $3.99 |
| 97 |
874981024 |
SCREW.PAN.HEAD This part replaces 874981020. Price: $4.99 |
| 98 |
532109808 |
LATCH.HOOD. Price: $5.99 |
| 99 |
873271000 |
NUT This part replaces 873731000. Price: $2.99 |
| 100 |
532007206 |
SPACER LT Price: $5.99 |
| 101 |
819070818 |
WASHER Price: $5.99 |
| 102 |
532108105 |
SHIELD HEAT HYT Price: $8.66 |
| 103 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 104 |
532105838 |
RETAINER LT Price: $4.99 |
| 105 |
532123650 |
STUD 1/4 TURN Price: $4.99 |
| 106 |
532126493 |
BAFFLE,REAR UPPER Price: $14.09 |
| 107 |
532105037 |
FOAM-STRIP LT Price: $2.38 |
