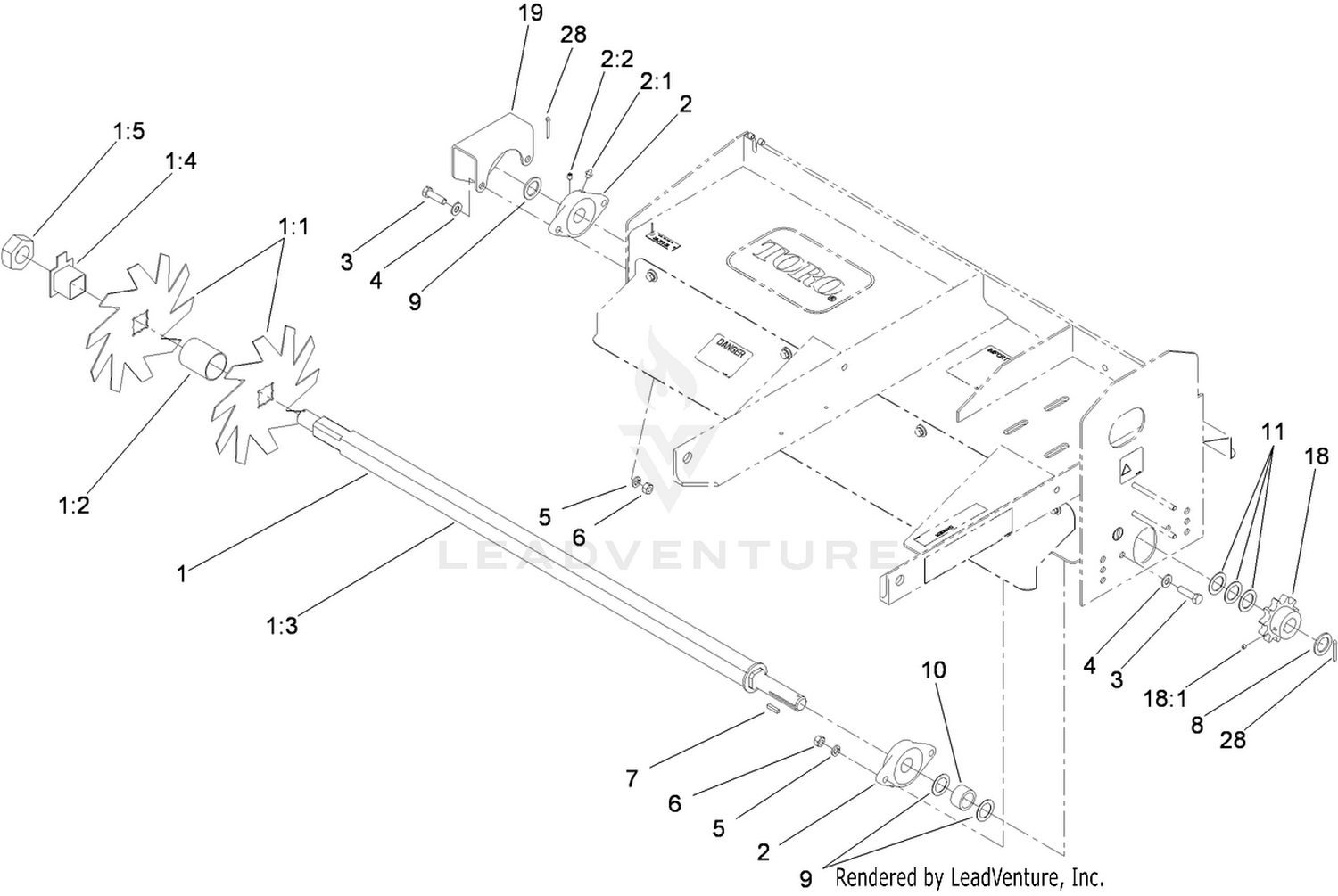

Blade Shaft Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-1288 | BLADE SHAFT ASM Price: $2,185.10 |
| 2 | 01-100-0170 | BEARING-FLANGE Price: $283.26 |
| 3 | 325-7 | SCREW-HH Price: $1.53 |
| 4 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 5 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 6 | 3217-9 | NUT-HH Price: $0.37 |
| 7 | 5-0698 | KEY Price: $2.30 |
| 8 | 01-168-2010 | BUSHING Price: $2.51 |
| 9 | 01-168-2018 | BUSHING Price: $1.76 |
| 10 | 104-0596 | SPACER-SHAFT Price: $60.73 |
| 11 | 01-168-2014 | BUSHING Price: $1.83 |
| 18 | 01-262-0190 | SPROCKET-11 TOOTH Price: $181.53 |
| 19 | 100-7732 | GUARD-SHAFT This part replaces 100-7732-01. Price: $146.34 |
