Home / OPE / G0060661 / DRIVE SHAFT & CUTTING HEAD

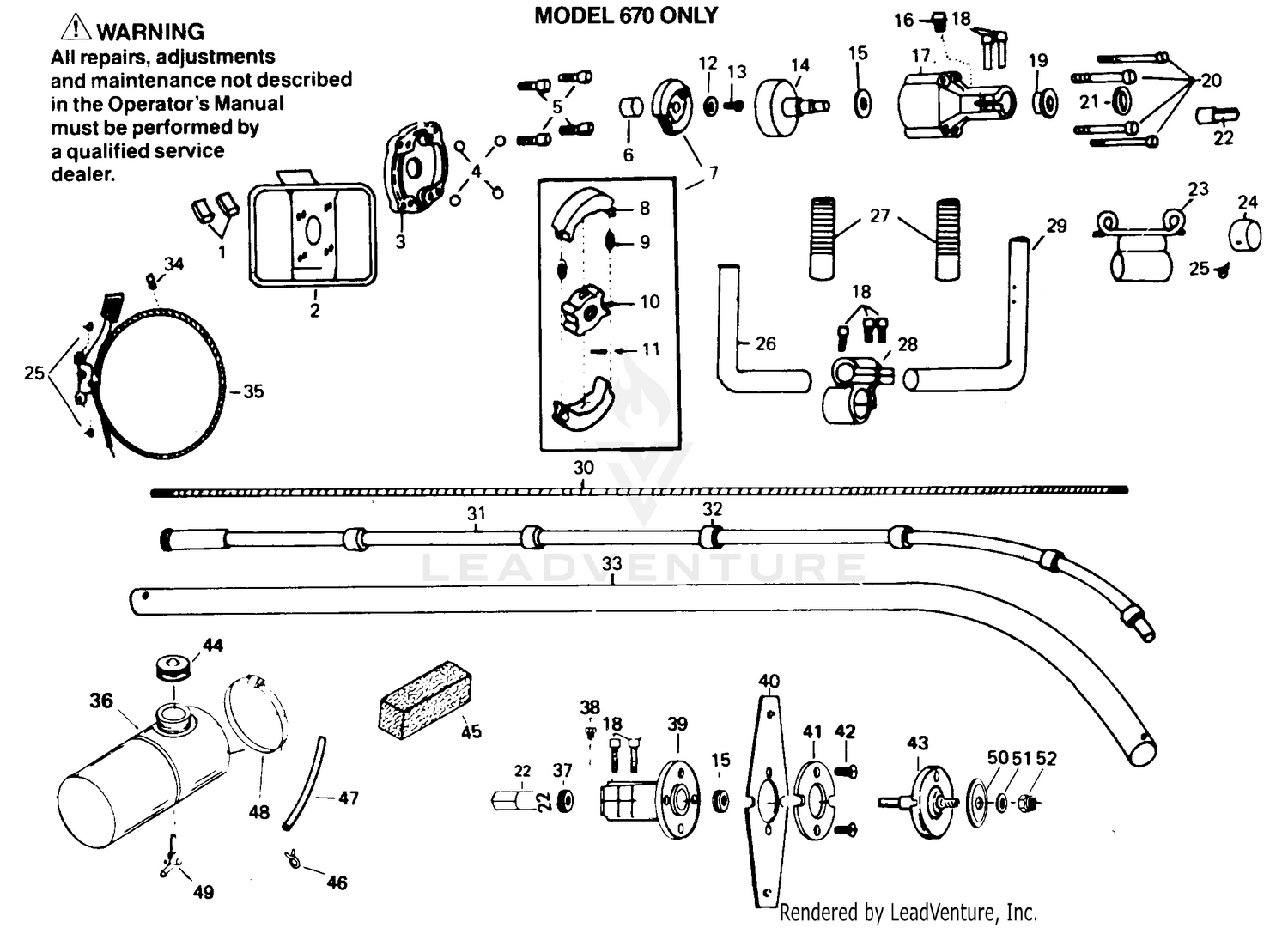

DRIVE SHAFT & CUTTING HEAD

DRIVE SHAFT & CUTTING HEAD

Parts (73)

RefPart NumberDescription
1 285-17 PLUG-PIPE This part replaces 285-10. Price: $2.59
2 110092835 GASKET DIAPHRAGM KAAZ # Price: $4.99
2 5-2795 DISCONTINUED Price: Call Us
3 5-2896 PIVOT *R Price: $2.44
3 530092836 Motor Adaptor Plate Price: $22.99
4 3256-4 WASHER-FLAT Price: $0.28
4 530091458 Lock Washer Price: $3.33
5 3253-21 WASHER-LOCK Price: $0.28
5 530092833 Screw Price: $3.33
6 323-6 SCREW-HH Price: $0.66
6 530092758 Clutch Spacer Price: $3.33
7 5-2845 ROLLER HANGER WA *RO Price: $188.44
7 530092759 Clutch Assembly (Incl. #8, 9, 10 & 11) Price: $3.33
8 3290-212 WASHER-SPRING Price: $1.56
8 530093131 Clutch Shoe Assembly Price: $3.33
9 3272-12 PIN-COTTER Price: $0.25
9 530092762 Clutch Spring Price: $3.33
10 3245-35 SCREW-SET, HSH Price: $0.41
10 530092763 Clutch Hub Price: $3.33
11 5-2808 DISCONTINUED Price: Call Us
11 530092764 Woodruff Key Price: $3.33
12 237-69 O-RING Price: $5.72
12 530091458 Lock Washer Price: $3.33
13 11-3050 SLEEVE Price: $53.95
13 530092766 Screw Price: $3.33
14 253-118 SEAL-OIL Price: $18.29
14 530092837 Clutch Drum Assembly Price: $3.33
15 5-1384 HOUSING-BEARING Price: $84.20
15 530092769 Ball Bearing, Lower Price: $3.33
16 251-205 BEARING-BALL Price: $40.83
16 530092833 Screw Price: $3.33
17 32151-13 RING-RETAINING Price: $4.39
17 530092838 Clutch Housing w/Bearing & Bushing Price: $3.33
18 237-68 O-RING Price: $3.22
18 530092839 Screw Price: $3.33
19 3272-6 PIN-COTTER Price: $0.25
19 530092841 Clutch Bushing Price: $3.33
20 283-2 PIN-CLEVIS Price: $12.99
20 530092842 Screw Price: $3.33
21 282-1 DISCONTINUED Price: Call Us
21 530092773 Drive Shaft Washer Price: $4.99
22 5-1686 ADJ ROD Price: $41.75
22 530092774 End Coupling Price: $3.33
23 5-2856 DISCONTINUED Price: Call Us
24 3290-255 PIN-COTTER, HAIR Price: $7.89
25 5-2806 ROLLER ASM Price: $426.02
25 530092787 Screw Price: $1.99
26 530092845 Handle Bar (Ieft) Price: $3.33
27 530092846 Handle Grip Price: $3.33
28 530092847 Handle Bar Clamp Price: $3.33
30 530092776 Flexible Drive Shaft Price: $3.33
31 530092849 Drive Shaft Housing Price: $3.33
32 530092851 Neoprine Guide Price: $3.33
33 530092852 Drive Shaft Housing Price: $3.33
34 530092853 Throttle Control Clip Price: $3.33
35 530092789 Throttle Control Complete Price: Call Us
36 530092862 Tank, Fuel Price: $3.33
37 110092854 GASKET KAAZ # Price: $3.99
38 530092833 Screw Price: $3.33
39 530092855 Lower Housing Price: $3.33
40 530092856 Blade Guard Price: $3.33
41 530092857 Filler Plate Price: $3.33
42 530092858 Screw Price: $3.33
43 530092859 Weed Deflector Cup Price: $3.33
44 530092746 Cap, Fuel Tank Price: $17.99
45 530092863 Baffle, Fuel Tank Price: $3.33
46 530092752 Clip, Fuel Price: $3.33
47 530092864 Hose, Fuel Price: $3.33
49 530092866 Fitting, Fuel Price: $3.33
50 530093137 Washer, Lower Arbor Price: $3.33
51 530093153 Washer Price: $11.99
530092835 Motor Leg Assembly Price: $3.33 530092835
530092854 Upper Bearing Price: $3.33 530092854
