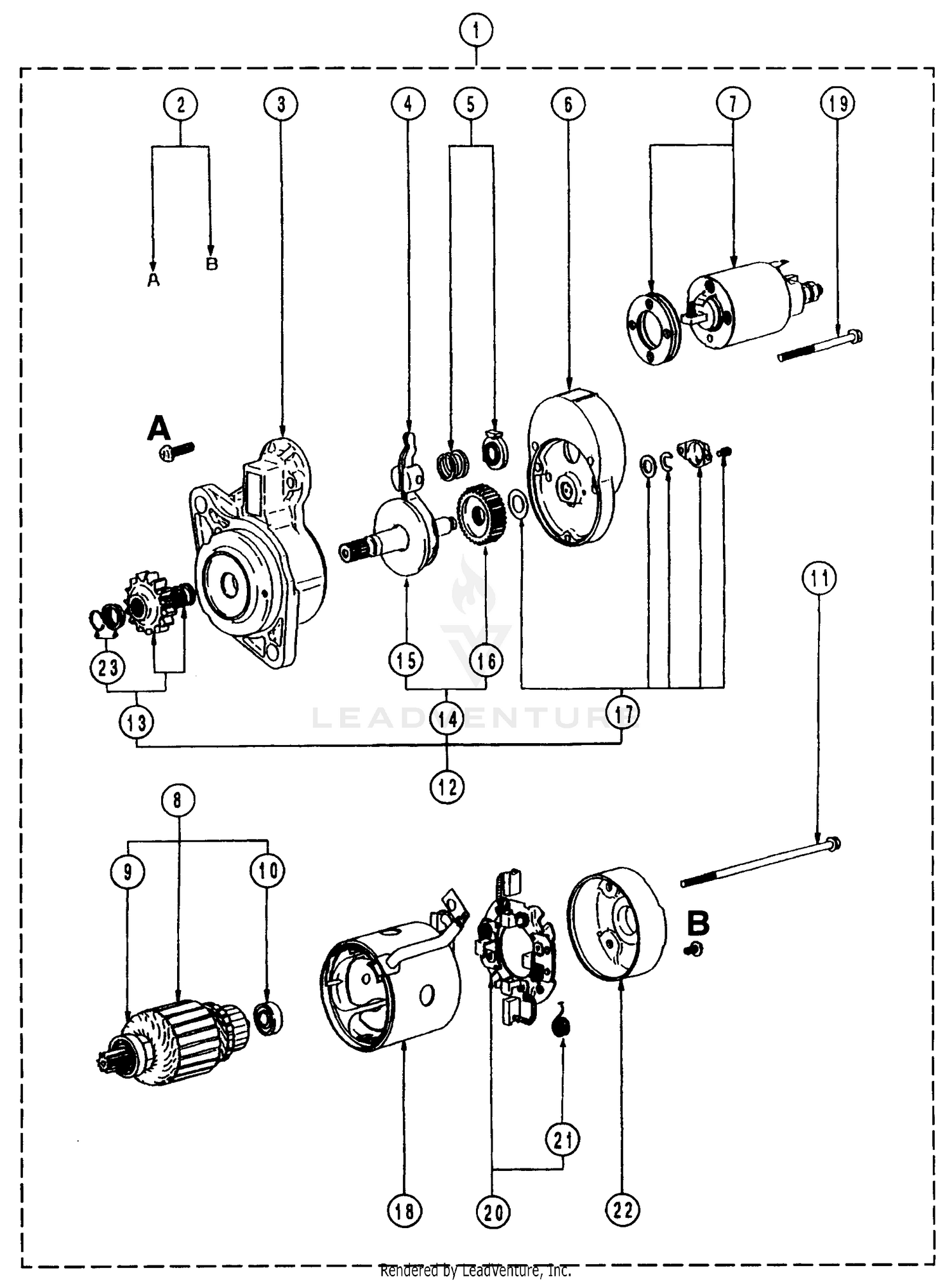

Starter 26 HP Engine
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 94-2814 | EXHAUST COUPLER KIT Price: $148.22 |
| 1 | MA-MM40941001 | STARTER ASSEMBLY Not Available Price: |
| 2 | 108-2447 | RING KIT This part replaces 94-2815. Price: $130.24 |
| 2 | MA-M414X00472 | SCREW-SET Not Available Price: |
| 3 | 74-6020 | HOSE-RADIATOR, LOWER Price: $48.93 |
| 3 | MA-M641X03972 | BRACKET ASSEMBLY Not Available Price: |
| 4 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 4 | MA-M863C04671 | Lever Ass'y Price: Call Us |
| 5 | 92-7381 | TUBE-RETURN, WATER Price: $75.00 |
| 5 | MA-M389X10871 | SPRING SET Not Available Price: |
| 6 | 94-8012 | MUFFLER ASM Price: $911.43 |
| 6 | MA-M640B11971 | BRACKET ASSEMBLY-CENTE Not Available Price: |
| 7 | 94-2812 | GROMMET Price: $2.79 |
| 7 | MA-M371X80171 | SWITCH ASSEMBLY Not Available Price: |
| 8 | 323-20 | SCREW-HH Price: $1.28 |
| 8 | MA-M106X57171 | ARMATURE ASSEMBLY Not Available Price: |
| 9 | 32128-20 | NUT-HF Price: $0.99 |
| 9 | MA-S930P14301 | BEARING-FRONT Not Available This part replaces MA-S930P12170. Price: |
| 10 | 62-9510 | WASHER-LEVER, BRAKE Price: $4.56 |
| 10 | MA-S930P12070 | Bearing, Rear Price: Call Us |
| 11 | 94-5608 | DISCONTINUED Price: Call Us |
| 11 | MA-M981C73901 | Bolt Set Price: Call Us |
| 12 | 93-7245-03 | BRACKET-SUPPORT This part replaces 93-7245. Price: $40.82 |
| 12 | MA-M357X81371 | SHAFT ASSEMBLY-CLUTCH Not Available Price: |
| 13 | 32128-19 | NUT-HF Price: $0.99 |
| 13 | MA-M605X61671 | Pinion Set Price: Call Us |
| 14 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 14 | MA-M231X00476 | GEAR ASSEMBLY-PINION W Not Available Price: |
| 15 | 74-6490 | HOSE-LINE, WATER Price: $4.86 |
| 15 | MA-M357C70771 | SHAFT ASSEMBLY Not Available Price: |
| 16 | 33004-00 | NUT-HF Price: $0.34 |
| 16 | MA-M231C00401 | GEAR Not Available Price: |
| 17 | 92-7382 | DISCONTINUED Price: Call Us |
| 17 | MA-M212X09071 | COVER SET Not Available Price: |
| 18 | 77-3700 | GASKET-MUFFLER, EXHAUST Price: $27.34 |
| 18 | MA-A800X59471 | Yoke Ass'y Price: Call Us |
| 19 | 33104-020 | SCREW-HHF Price: $2.07 |
| 19 | MA-M981C74001 | Bolt Set Price: Call Us |
| 20 | 56-7971 | CLAMP-TUBE Price: $17.90 |
| 20 | MA-M649T04471 | Holder Ass'y, Brush Price: Call Us |
| 21 | 69-9761 | PLATE-COVER Price: $6.26 |
| 21 | MA-M391C00101 | SPRING-BRUSH Not Available Price: |
| 22 | 322-9 | SCREW-HH Price: $3.09 |
| 22 | MA-M644B10201 | BRACKET ASSEMBLY-REAR Not Available Price: |
| 23 | 94-8298 | OIL COOLER TUBE ASM Price: $115.67 |
| 501861801 | 501861801 | SUPPORT BUSHING Price: $11.99 |
| 501876902 | 506182371 | CRANKSHAFT COMPLETE This part replaces 501876902. Price: $261.99 |
| 738220225 | 738220225 | BALL BEARING-6202-C3 SKF Price: $19.99 |
