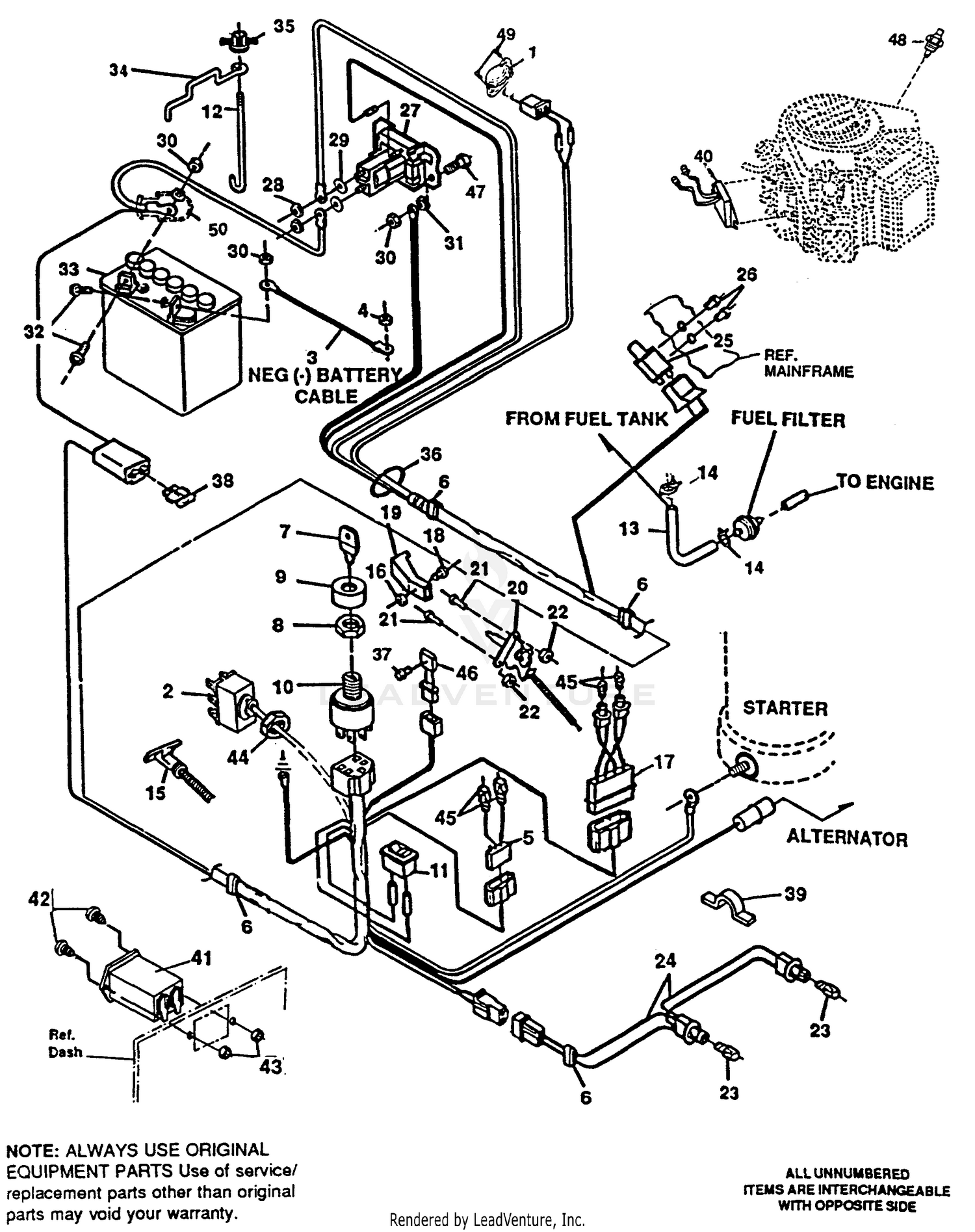

| Ref | Part Number | Description |
|---|
| 1 |
57547 |
Seat Switch Price: Call Us |
| 1 |
94-1259 |
GEAR CASE ASM This part replaces 67-2490. Price: $982.40 |
| 2 |
309285 |
Switch, Elec/Clutch Actuator Price: Call Us |
| 2 |
67-2580 |
CASE GASKET Price: $29.62 |
| 3 |
55511 |
Cable, Battery, Negative Price: Call Us |
| 3 |
67-2340 |
BOLT W/WASHER Price: $2.19 |
| 4 |
271184 |
Nut, Hx, Keps, 5/16-18 Thd. Price: Call Us |
| 4 |
67-2310 |
PLATE Price: $88.82 |
| 5 |
67-2320 |
PLATE GASKET Price: $27.26 |
| 6 |
42-9440 |
BOLT/WASHER Price: $4.52 |
| 6 |
57444 |
Tie Cable Price: Call Us |
| 7 |
300626 |
Key, Ignition Switch Price: Call Us |
| 7 |
67-2560 |
BOLT W/WASHER Price: $1.89 |
| 8 |
300193 |
Nut, Switch Price: Call Us |
| 8 |
67-2550 |
OIL PUMP HOUSING Price: $158.75 |
| 9 |
300194 |
Boot, Switch Price: Call Us |
| 9 |
67-2540 |
DISCONTINUED Price: Call Us |
| 10 |
305720 |
Switch, Ignition Price: Call Us |
| 10 |
67-2530 |
DISCONTINUED Price: Call Us |
| 11 |
300334 |
Switch, Light Price: Call Us |
| 11 |
67-2470 |
DISCONTINUED Price: Call Us |
| 12 |
42-9260 |
DRAIN PLUG Price: $29.62 |
| 12 |
57551 |
Rod, Battery Hold-Down Price: Call Us |
| 13 |
42-7290 |
GASKET-PLUG Price: $7.56 |
| 13 |
47452 |
Gas Line, 10" (cut to length) Price: Call Us |
| 14 |
48672 |
Clamp, Gas Line Price: Call Us |
| 14 |
67-2480 |
OIL PAN GASKET Price: $25.87 |
| 15 |
307113 |
Choke Control Price: Call Us |
| 15 |
42-9490 |
SCREW - CAP Price: $0.30 |
| 16 |
120622 |
Nut, Hex, #8-32 Thd. Price: Call Us |
| 16 |
67-2390 |
PLUG This part replaces 42-7210. Price: $5.06 |
| 17 |
67-2630 |
O-RING Price: $3.84 |
| 18 |
159585 |
Screw, Ph Pn, #8-32 x 3/8 In. Price: Call Us |
| 18 |
67-2600 |
BOLT Price: $2.41 |
| 19 |
304439 |
Knob, Throttle Control Price: Call Us |
| 19 |
67-2610 |
BOLT Price: $3.64 |
| 20 |
307362 |
Throttle Control Price: Call Us |
| 20 |
67-2590 |
OIL SEAL Price: $13.61 |
| 21 |
159943 |
Screw, #10-24 X 5/8 In. Price: Call Us |
| 21 |
67-2620 |
BOLT Price: $1.89 |
| 22 |
308459 |
Nut, Hx, Nylon Lock, #10-24 Thd. Price: Call Us |
| 22 |
67-2500 |
PLUNGER Price: $22.88 |
| 23 |
52572 |
Bulb Headlamp Price: Call Us |
| 23 |
67-2510 |
SPRING Price: $8.45 |
| 24 |
303064 |
Assembly, Light Wire Price: Call Us |
| 24 |
67-2520 |
PLUG Price: $5.65 |
| 25 |
57211 |
Switch Price: Call Us |
| 25 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 26 |
57220 |
Screw, Pn Hd, Tap #12 x 1/2 In. Price: Call Us |
| 26 |
67-2640 |
CAP Price: $10.52 |
| 27 |
310966 |
Solenoid Price: Call Us |
| 27 |
67-2660 |
O-RING Price: $6.73 |
| 28 |
120368 |
Nut, Hx 5/16-24 Thd. Price: Call Us |
| 28 |
67-2650 |
OIL FILTER CAP ASSEMBLY Price: $20.14 |
| 29 |
138485 |
Washer, Lock 5/16 In. Price: Call Us |
| 30 |
271172 |
Nut, Hx, Keps, 1/4-20 Thd. Price: Call Us |
| 31 |
1502 |
Nut, Hx, Ctrlk, 1/4-20 Thd. Price: Call Us |
| 32 |
120854 |
Screw, 1/4-20 x .63 Price: Call Us |
| 33 |
306694 |
Battery Price: Call Us |
| 34 |
302912 |
Bracket, Battery Hold-Down Price: Call Us |
| 35 |
310067 |
Wingnut, 1/4-20 Thd. Price: Call Us |
| 36 |
315695 |
Wiring Harness Price: Call Us |
| 37 |
300302 |
Plastite Screw Price: Call Us |
| 38 |
302031 |
Fuse, 15A-32V Price: Call Us |
| 39 |
41482 |
Press Clip Price: Call Us |
| 40 |
315602 |
Regulator, Sen Volt B & S With Sensor Price: Call Us |
| 41 |
304739 |
Miniature Hour Meter Price: Call Us |
| 42 |
308347 |
Screw, #6-32 x 1/2 In. Price: Call Us |
| 43 |
271482 |
Nut, #6-32 Price: Call Us |
| 44 |
313430 |
Nut Price: Call Us |
| 45 |
57769 |
Indicator Bulb Price: Call Us |
| 46 |
307056 |
Voltage Sensor Price: Call Us |
| 47 |
187745 |
Screw, 1/4-20 x .75 Price: Call Us |
| 48 |
314797 |
Oil Sensor, B & S. Twin Cycle Price: Call Us |
| 49 |
160505 |
Screw, 1/4-20 x .38 Price: Call Us |
