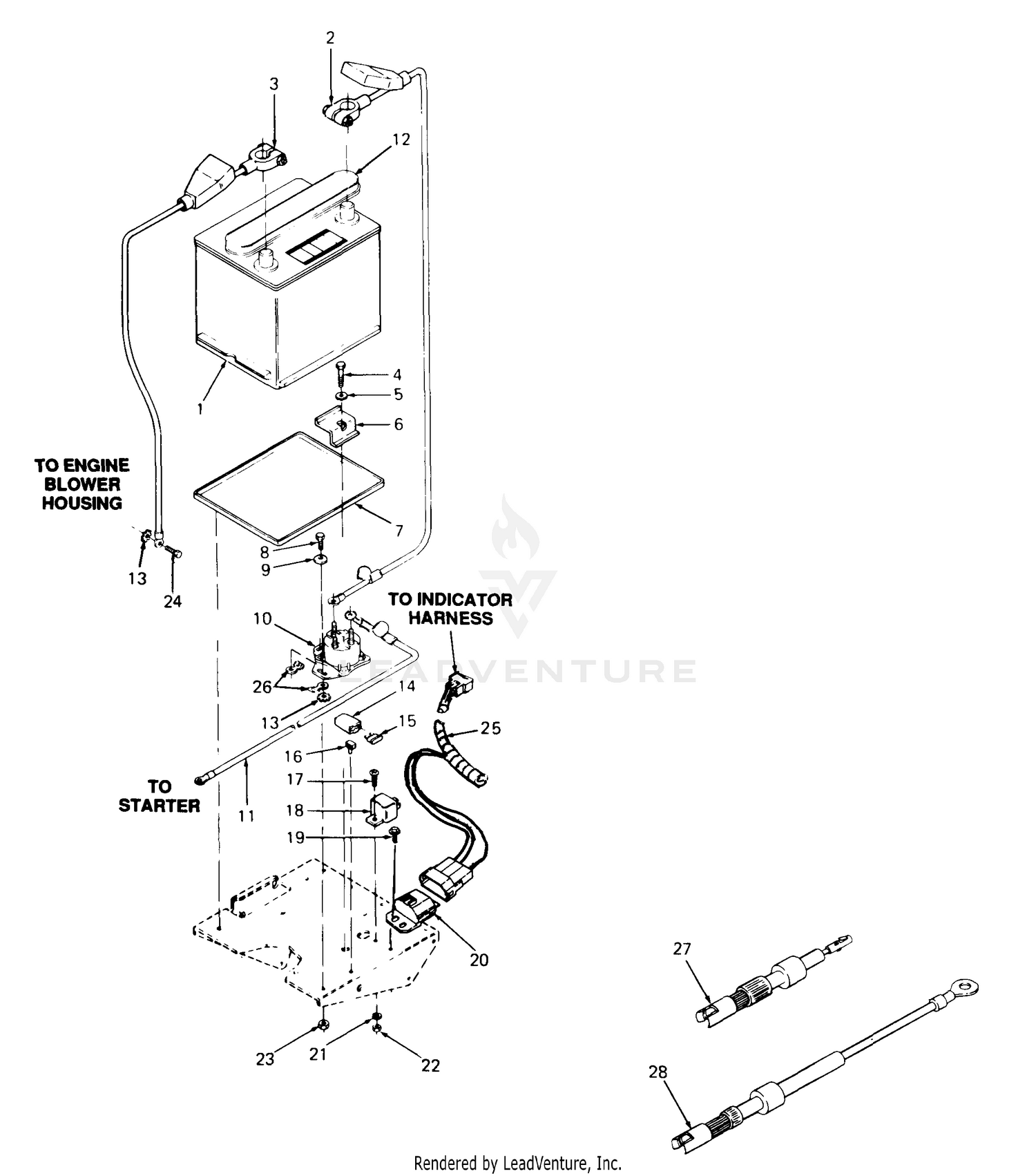

| Ref | Part Number | Description |
|---|
| 1 |
56-0220 |
DISCONTINUED Price: Call Us |
| 1 |
925-04514 |
BATTERY Not Available This part replaces 725-3174. Price: |
| 2 |
725-3197A |
POITIVE BATTERY CABLE Not Available Price: |
| 2 |
93-3381 |
CAP SEALING Price: $17.76 |
| 3 |
725-3198 |
NEGATIVE BATTERY CABLE Not Available Price: |
| 3 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 4 |
710-3083 |
Screw, Hex Cap, 5/16-18 X 1.38 Lg Price: $3.94 |
| 4 |
93-3382 |
CAP SEALING Price: $7.52 |
| 5 |
42-7180 |
DISCONTINUED Price: Call Us |
| 5 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 6 |
56-1230 |
OIL FILTER SHAFT Price: $14.76 |
| 6 |
703-1823-0716 |
BATTERY HOLD DOWN (CUB YELLOW-99) Not Available This part replaces 703-1823. Price: |
| 7 |
731-3105 |
TRAY, BATTERY Not Available Price: |
| 7 |
93-3383 |
SEAL-SIDE Price: $10.00 |
| 8 |
56-0100 |
PLUG-DRAIN Price: $6.55 |
| 8 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 9 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 9 |
93-3385 |
CAP ASSY-METAL Price: $392.44 |
| 10 |
42-9210 |
BOLT-BRG CAP Price: $11.29 |
| 10 |
925-1426A |
Solenoid This part replaces 725-1426. Price: $24.63 |
| 11 |
725-3206 |
CABLE-STAR Not Available Price: |
| 12 |
759-3653 |
CAP-BATTERY VENT Not Available Price: |
| 13 |
736-3006 |
Washer, Int-Ext, 1/4 Price: $5.32 |
| 14 |
729-0207 |
FUSE HOLDER Not Available Price: |
| 14 |
93-3387 |
BRG SET STD Price: $282.00 |
| 15 |
925-1381 |
Fuse, 20 Amp This part replaces 725-1381. Price: $5.38 |
| 15 |
93-3386 |
CAP SEALING Price: $3.09 |
| 16 |
72-6950 |
OIL LEVEL GUAGE RETAIN. Price: $33.80 |
| 16 |
729-0209 |
CLIP-FUSE HLD MTG Not Available Price: |
| 17 |
42-7200 |
KNOCK BSHG MS 471110 Price: $10.16 |
| 17 |
710-0473 |
Screw, Truss Mach, #10-24 X .50 Lg Price: $3.90 |
| 18 |
42-7160 |
PIN Price: $4.51 |
| 18 |
925-1375 |
RELAY Not Available This part replaces 725-1375. Price: |
| 19 |
42-7170 |
PLUG-40 MM MF665511 Price: $11.46 |
| 19 |
710-0599 |
Screw, Hex Wash HD TT, 1/4-20 X .50 Lg Price: $3.86 |
| 20 |
925-3251 |
Sensor, Voltage This part replaces 725-3251. Price: $45.87 |
| 21 |
736-0722 |
Washer, Lock, #10 Price: $5.81 |
| 22 |
712-0121 |
Nut, Hex, #10-24 Price: $3.75 |
| 23 |
712-0291 |
Nut, Hex Center Lock, 1/4-20 Price: $3.93 |
| 24 |
BS-691982 |
HEX SCREW Not Available This part replaces BS-805406. Price: |
| 26 |
725-3147 |
QUICK CONNECT LUG Not Available Price: |
