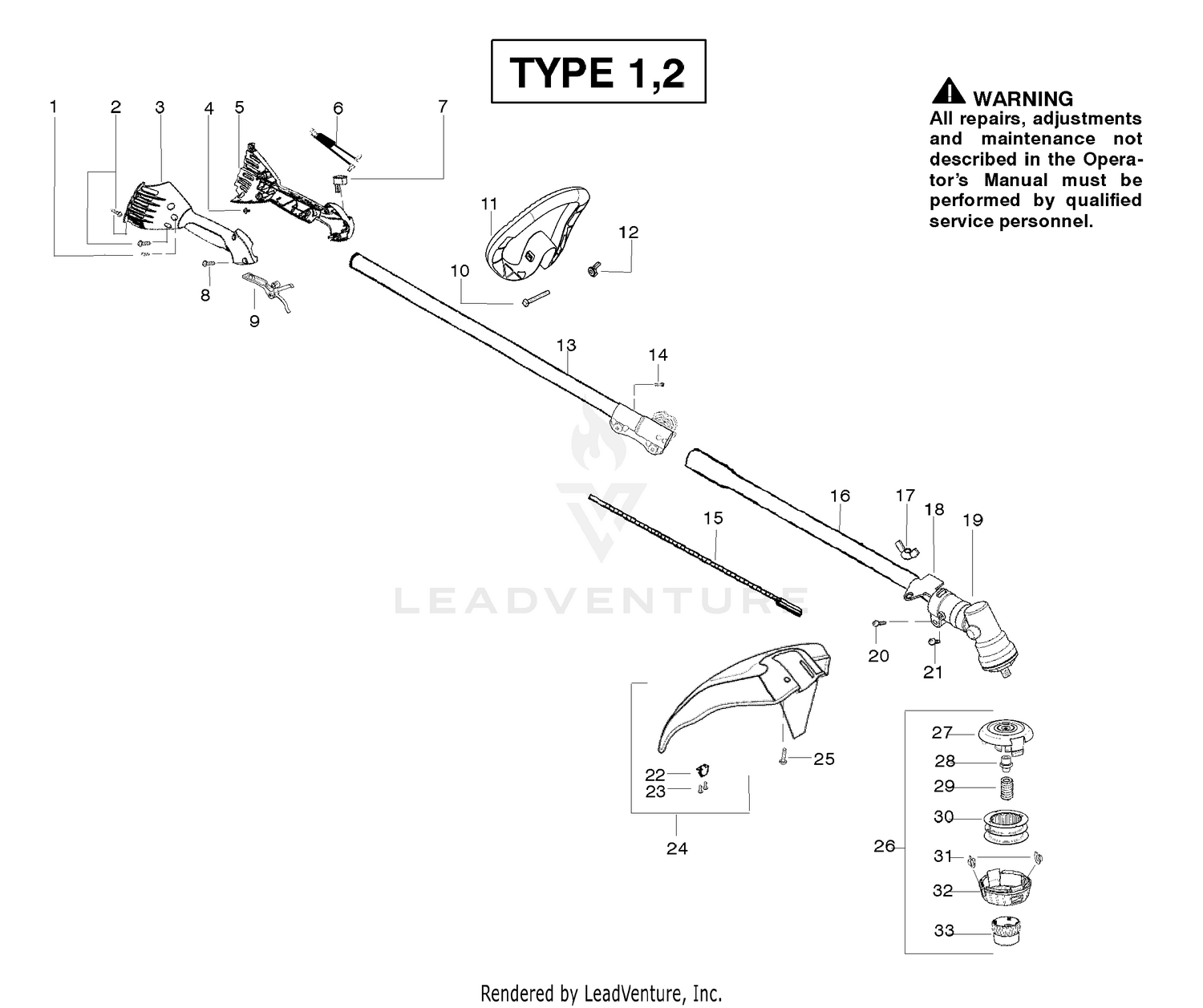

| Ref | Part Number | Description |
|---|
| 1 |
530015805 |
Screw-alignment Price: $1.99 |
| 2 |
530015886 |
Screw Price: $1.99 |
| 3 |
530057983 |
Hsg.-Throttle right Price: $7.99 |
| 4 |
530016326 |
Screw-Cable Retention Price: $1.99 |
| 5 |
530057984 |
Hsg.-Left throttle Price: $6.99 |
| 6 |
530058843 |
Assy-Wire Price: $5.99 |
| 7 |
530069572 |
Kit-Switch Price: $4.99 |
| 8 |
530015886 |
Screw Price: $1.99 |
| 9 |
545017701 |
TRIGGER THROTTLE RED This part replaces 530058759. Price: $1.99 |
| 10 |
530015786 |
Bolt Price: $1.99 |
| 12 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 14 |
530016344 |
Screw Price: $1.99 |
| 16 |
530071790 |
Assy-Lower Shaft This part replaces 545006040. Price: $17.99 |
| 17 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 18 |
530057554 |
Bracket-Shield Price: $2.99 |
| 19 |
530096099 |
Gearbox Price: $32.99 |
| 20 |
530016014 |
Screw Price: $1.99 |
| 21 |
530015775 |
Screw Price: $1.99 |
| 22 |
530052285 |
Limiter-Line Price: $1.99 |
| 23 |
530015814 |
Screw Price: $1.99 |
| 25 |
530015820 |
Bolt Price: $1.99 |
| 27 |
537419302 |
Housing Price: $11.99 |
| 28 |
537419801 |
Adapter Price: $5.99 |
| 29 |
537338801 |
Spring Price: $2.99 |
| 30 |
952711631 |
Accy-Wound Spool Price: $7.99 |
| 31 |
545003365 |
Kit-Cover and Eyelet This part replaces 537419701. Price: $8.99 |
| 32 |
545003365 |
Kit-Cover and Eyelet This part replaces 537419401. Price: $8.99 |
| 33 |
537419601 |
Knob Price: $3.99 |
| 99 |
277078 |
Gasket-Governor Housing Price: Call Us |
| 100 |
271151 |
Rod-Throttle Price: Call Us |
| 101 |
4520803 |
Ball Joint Price: Call Us |
| 102 |
X489-8 |
Rod, Breaker Push Price: Call Us |
| 103 |
220174 |
Gasket, Cover Price: Call Us |
| 104 |
220074 |
Diaphram Price: Call Us |
| 105 |
232535 |
Cover Price: Call Us |
| 106 |
271547 |
Spring Governor Price: Call Us |
| 107 |
275691 |
Screw Shoulder Price: Call Us |
| 108 |
277073 |
Gasket Price: Call Us |
| 109 |
277080 |
Lever-Throttle Price: Call Us |
| 110 |
A-277905 |
Housing, Breather (Includes Valve) Price: Call Us |
| 111 |
277431 |
Washer, Tension Price: Call Us |
| 112 |
4815002 |
Breaker Price: Call Us |
| 113 |
4819401 |
Ball Price: Call Us |
| 114 |
4875510 |
Kit-Clamp Price: Call Us |
