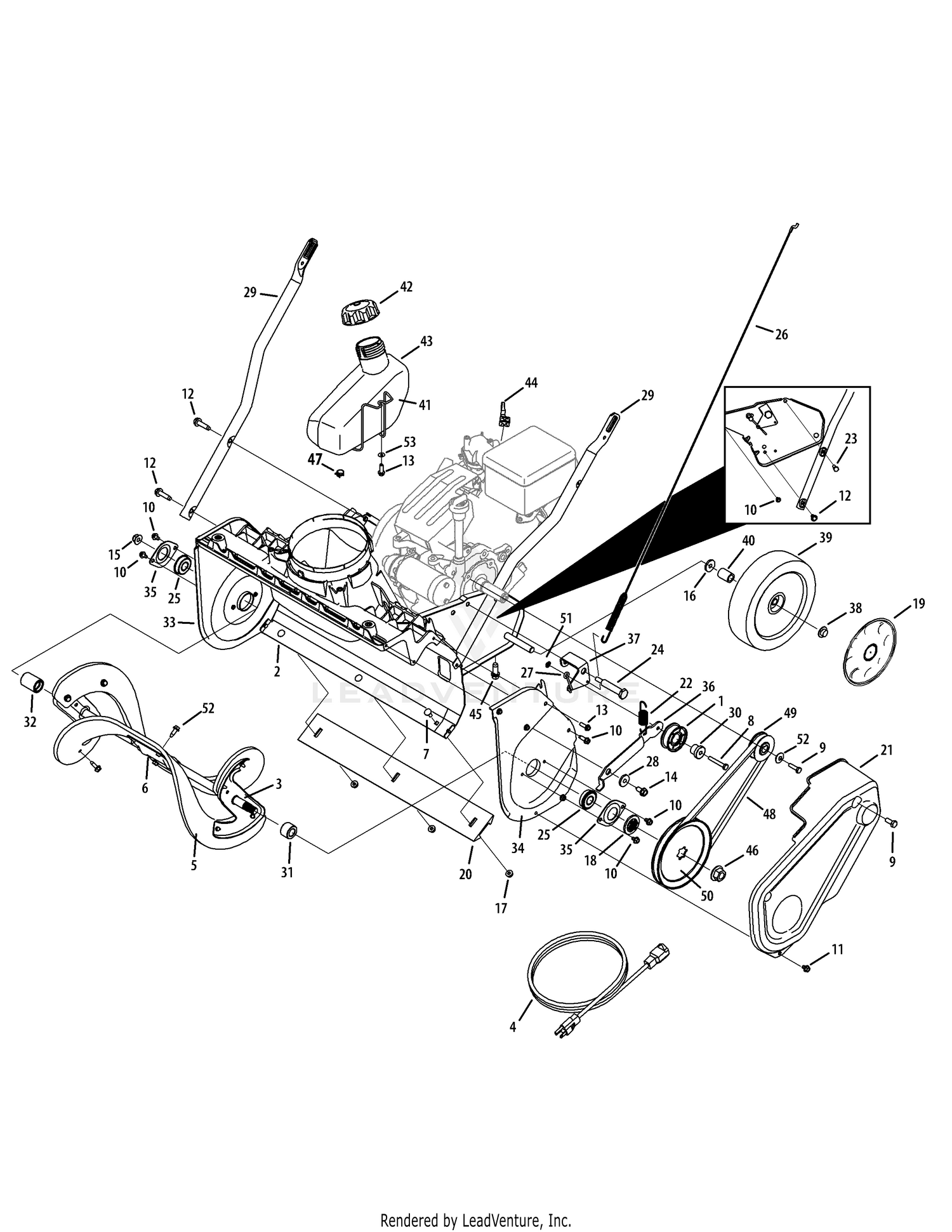

| Ref | Part Number | Description |
|---|
| 1 |
684-04168 |
Idler Pulley Assembly Price: $34.09 |
| 2 |
753-11131B |
SINGLE STAGE SNOW FRAME KIT This part replaces 684-04398-0638. Price: $121.82 |
| 3 |
984-04393 |
Auger Assembly Complete Price: $202.17 |
| 6 |
790-00427 |
Center Auger Bracket Price: $5.70 |
| 7 |
710-0134 |
Carriage Screw, 1/4-20 x .62 Price: $3.71 |
| 8 |
710-0778 |
Hex Screw, 1/4-20 x 1.50 Price: $3.90 |
| 9 |
710-0627 |
Hex Lock Screw, 5/16-24 x .750 Price: $3.68 |
| 10 |
710-1652 |
Hex Washer Screw, 1/4-20 x .625 Price: $3.86 |
| 11 |
710-0599 |
Hex Washer Screw, 1/4-20 x .500 Price: $3.86 |
| 12 |
710-0817 |
Hex Washer Screw, 5/16-18 x 1.250 Price: $5.77 |
| 13 |
710-0895 |
Hex Washer Screw, 1/4-15 x .750 Price: $5.82 |
| 14 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 15 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 17 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 18 |
718-04836 |
Pulley Hub Price: $3.86 |
| 20 |
731-08171 |
Shave Plate Price: $16.15 |
| 21 |
731-07737A |
Belt Cover Price: $24.93 |
| 22 |
732-04748 |
Extension Spring, .70 x 3.035 Price: $3.52 |
| 23 |
710-05183 |
Hex Screw, 5/16-24 x 1.25 Price: $3.90 |
| 24 |
738-04456 |
SHOULDER BOLT Price: $4.83 |
| 25 |
741-04517 |
Ball Bearing, .500 x 40mm x 12mm Price: $7.71 |
| 26 |
946-04701 |
Clutch Cable Price: $20.36 |
| 27 |
747-05360A |
Drive Cable Wire Support Price: $3.48 |
| 28 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 29 |
749-04810-0637 |
Lower Handle Price: $10.78 |
| 30 |
750-04571 |
Shoulder Spacer, .260 x .785 x .538 Price: $6.01 |
| 31 |
750-04758 |
LH Auger Spacer Price: $5.53 |
| 32 |
750-05393 |
RH Auger Spacer Price: $5.04 |
| 33 |
790-00444-0638 |
AUGER HOUSING PLATE (RH)(MTD RED) Not Available Price: |
| 34 |
790-00445-0638 |
LH Auger Plate Price: $40.12 |
| 35 |
790-00457-0638 |
Bearing Cup Price: $12.29 |
| 36 |
790-00461-0637 |
Idler Bracket Price: $3.70 |
| 37 |
790-00426 |
Cable Idler Bracket Price: $6.23 |
| 38 |
726-0299 |
Push Cap, 1/2 Price: $7.03 |
| 41 |
747-05513 |
Gas Tank Wire Support Price: $10.35 |
| 42 |
751-10487C |
FUEL CAP This part replaces 751-10487A. Price: $15.06 |
| 43 |
751-14001B |
FUEL TANK (2 QT) This part replaces 751-11648. Price: $39.26 |
| 45 |
710-0654A |
Hex Washer Screw, 3/8-16 x 1.000 Price: $3.75 |
| 46 |
912-0702 |
Flange Nut, 7/16-20 Price: $16.10 |
| 47 |
726-0205 |
Hose Clamp Price: $3.71 |
| 48 |
954-04050A |
Auger Drive Belt This part replaces 954-04050. Price: $25.43 |
| 49 |
956-0416B |
Pulley Half, .625 x 2.25 Price: $9.56 |
| 50 |
756-04443 |
Pulley, 1/2 x 6.00 Price: $20.46 |
| 51 |
726-0233 |
Push Nut Price: $3.93 |
| 52 |
710-05058 |
Hex Washer Screw, 1/4-14 x .750 Price: $3.49 |
