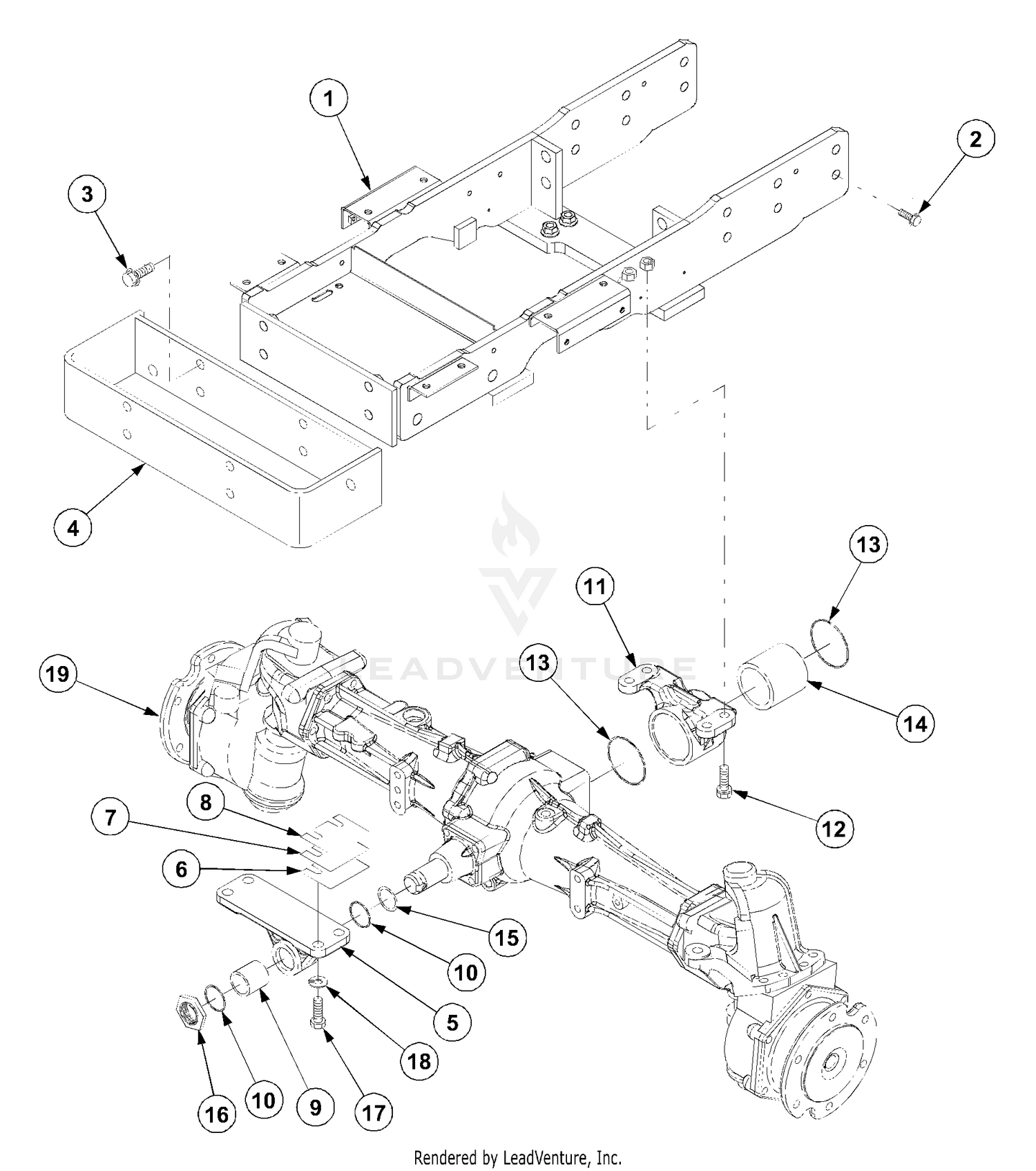

Frame And Front Axle
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MA-19572111AG2 | BRACKET-CHASSIS FRONT Not Available This part replaces MA-19572111AG0. Price: |
| 2 | MA-F9450112035 | BOLT Not Available Price: |
| 3 | MA-H1540112035 | BOLT W/WASHER Not Available Price: |
| 4 | MA-19562113AG0 | WEIGHT BRACKET Not Available Price: |
| 5 | MA-10302124AG1 | BRACKET-FRONT MFD Not Available Price: |
| 6 | MA-10302141001 | SHIM Not Available Price: |
| 7 | MA-10302142001 | SHIM Not Available Price: |
| 8 | MA-10302143001 | SHIM Not Available Price: |
| 9 | MA-07961030300 | BUSHING Not Available Price: |
| 10 | MA-08300200300 | O-RING Not Available Price: |
| 11 | MA-10352122AG0 | REAR BRACKET MFD Not Available Price: |
| 12 | MA-F1540112045 | BOLT W/WASHER Not Available Price: |
| 13 | MA-08300200650 | O-RING Not Available Price: |
| 14 | MA-05605-06540 | BUSHING-REAR BRACKET Not Available Price: |
| 15 | MA-69542-62701 | LINER F Not Available Price: |
| 16 | MA-69526-07200 | NUT MFD Not Available Price: |
| 17 | MA-F1145-14045 | BOLT 14X45 Not Available This part replaces MA-A0400114045. Price: |
| 18 | MA-A3600101402 | WASHER,SPRING Not Available Price: |
| 530015814 | 530015814 | SCREW Price: $1.49 |
