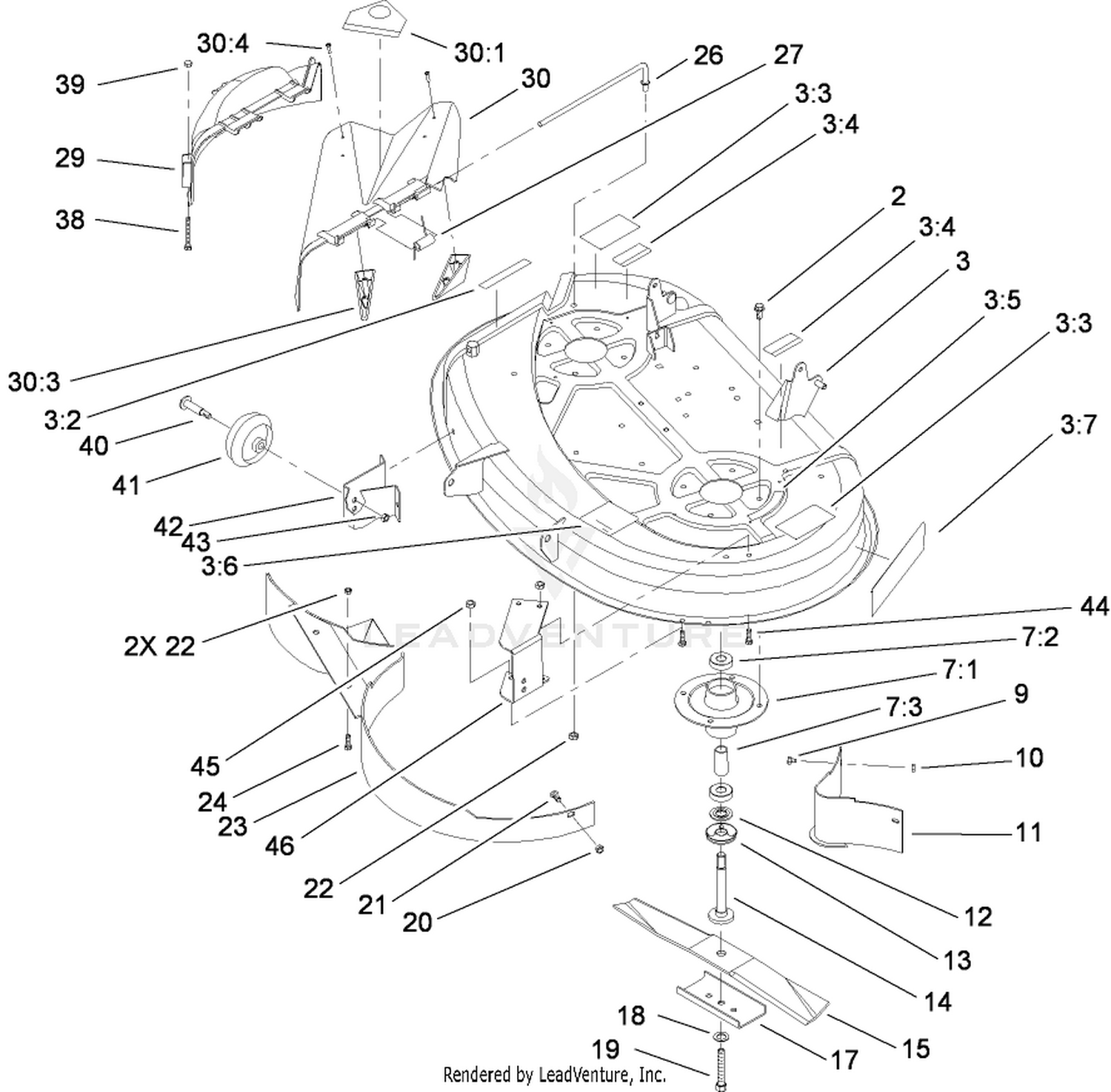

| Ref | Part Number | Description |
|---|
| 2 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 9 |
321-4 |
SCREW-HH Price: $0.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
79-1640-03 |
BAFFLE ASM Price: $39.67 |
| 12 |
80-4380 |
SPACER Price: $4.08 |
| 13 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 14 |
80-4341 |
SHAFT-SPINDLE Price: $40.48 |
| 15 |
114-3231 |
BLADE KIT Price: Call Us |
| 17 |
80-0510-03 |
STIFFENER-BLADE Price: $10.93 |
| 18 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 19 |
26-0671 |
SCREW-HH Price: $7.99 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
88-6210 |
WT-38 L/B BAFFLE This part replaces 88-6210-03. Price: $90.77 |
| 24 |
323-5 |
SCREW-HH Price: $0.41 |
| 26 |
95-1661 |
ROD-PIVOT Price: $13.31 |
| 27 |
57-6950 |
SPRING Price: $16.98 |
| 29 |
88-4520 |
COVER-DISCHARGE, DECK Price: $54.02 |
| 30 |
93-7695 |
DEFLECTOR ASM Price: $54.41 |
| 38 |
321-14 |
SCREW-HH Price: $0.55 |
| 39 |
32111-7 |
NUT-CAP Price: $6.19 |
| 40 |
56-6591 |
SCREW-SHOULDER, HWH Price: $7.99 |
| 41 |
701756 |
WHEEL-GAGE Price: $7.59 |
| 42 |
88-5740-03 |
BRACKET-WHEEL, RH Price: $26.19 |
| 43 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 44 |
322-3 |
SCREW-HH Price: $0.79 |
| 45 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
