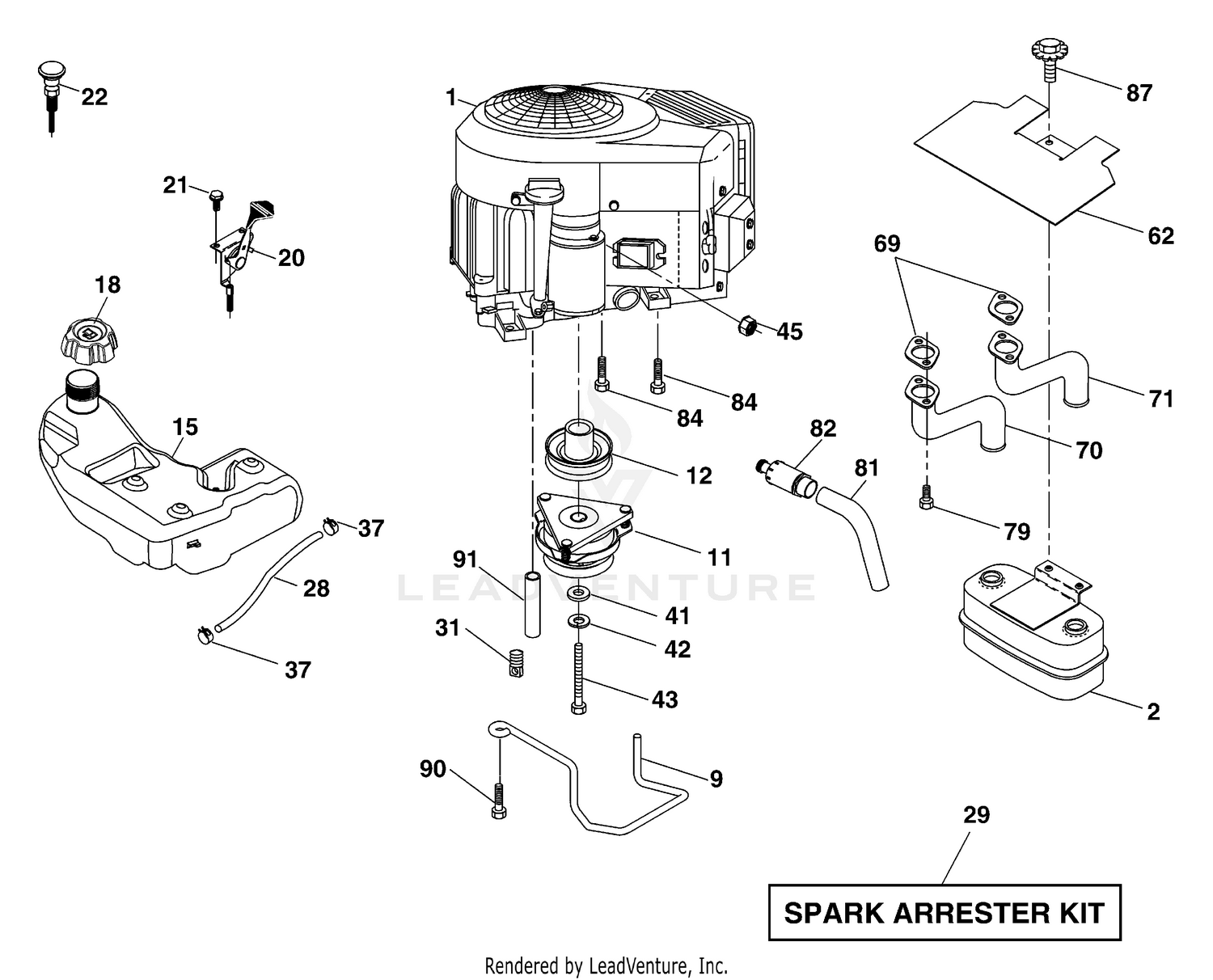

| Ref | Part Number | Description |
|---|
| 1 |
353-892 |
DISONTINUED Price: Call Us |
| 2 |
353-850 |
O-RING Price: $1.17 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 3 |
353-914 |
DISCONTINUED Price: Call Us |
| 4 |
54-9520 |
VALVE-BY-PASS Price: $124.60 |
| 6 |
353-907 |
DISCONTINUED Price: Call Us |
| 7 |
353-895 |
COVER Price: $300.92 |
| 8 |
353-910 |
BEARING-NEEDLE Price: $27.14 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
353-906 |
DISCONTINUED Price: Call Us |
| 11 |
353-897 |
DISCONTINUED Price: Call Us |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532179334. Price: $329.99 |
| 12 |
532402980 |
PULLEY.ENGINE.ENX Price: $49.99 |
| 13 |
353-899 |
CUP-SEAL Price: $159.34 |
| 15 |
532193499 |
TANK.FUEL.4GAL Price: $69.99 |
| 17 |
353-900 |
PLATE-MOUNT, FLANGE Price: $146.22 |
| 18 |
353-905 |
DISCONTINUED Price: Call Us |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532194267. Price: $14.99 |
| 19 |
353-904 |
SHAFT-SPLINE Price: $682.44 |
| 20 |
353-911 |
DISCONTINUED Price: Call Us |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 21 |
353-912 |
SPRING-RETAINER, BALL Price: $3.27 |
| 21 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 22 |
353-664 |
BALL Price: $3.40 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 24 |
353-893 |
DISCONTINUED Price: Call Us |
| 25 |
353-909 |
DISCONTINUED-SEE NOTES Price: Call Us |
| 26 |
353-894 |
DISCONTINUED Price: Call Us |
| 27 |
353-891 |
DISCONTINUED Price: Call Us |
| 28 |
237-156 |
O-RING Price: $1.07 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532145006 |
PUSH CLIP Price: $2.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 87 |
532198239 |
BOLT.5/16-18UNCX1.W/SEMS.BLK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
