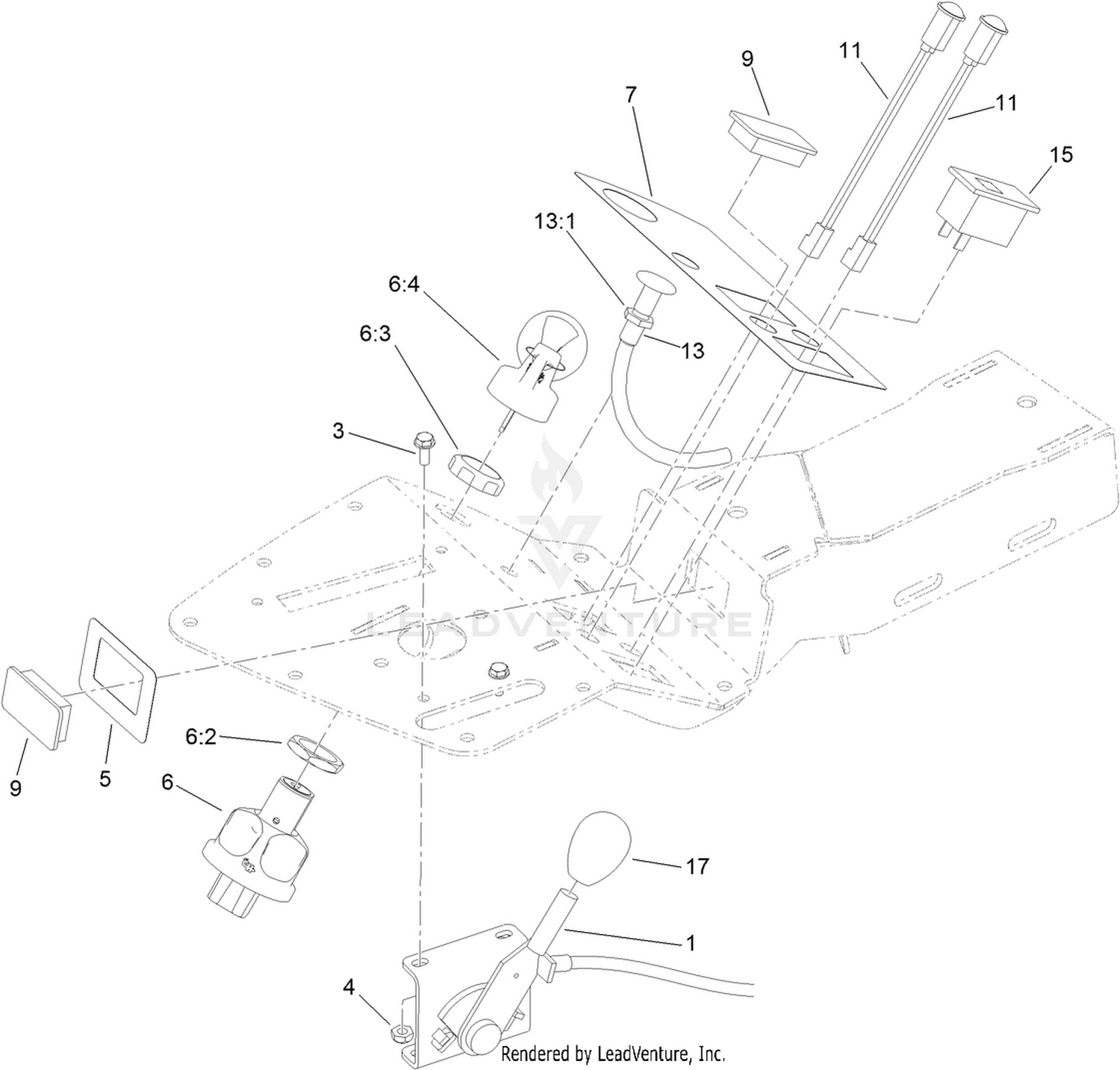

Ignition, Throttle and Choke Control Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-1652 | THROTTLE Price: $73.96 |
| 3 | 3290-321 | SCREW-HWH Price: $3.99 |
| 4 | 3296-12 | NUT-LOCK, NI Price: $1.29 |
| 5 | 121-5172 | DECAL-LIGHTS, CONSOLE Price: $8.87 |
| 6 | 121-5159 | IGNITION SWITCH ASM Price: $84.21 |
| 7 | 121-5170 | DECAL-CONSOLE, HYD Price: $29.62 |
| 9 | 99-7420 | PLUG-HOLE Price: $7.64 |
| 11 | 95-7652 | LIGHT-INDICATOR Price: $45.99 |
| 13 | 119-1651 | CONTROL-CHOKE Price: $54.03 |
| 15 | 99-7410 | INDICATOR-LIGHT, LOW-OIL PRESSURE Price: $24.09 |
