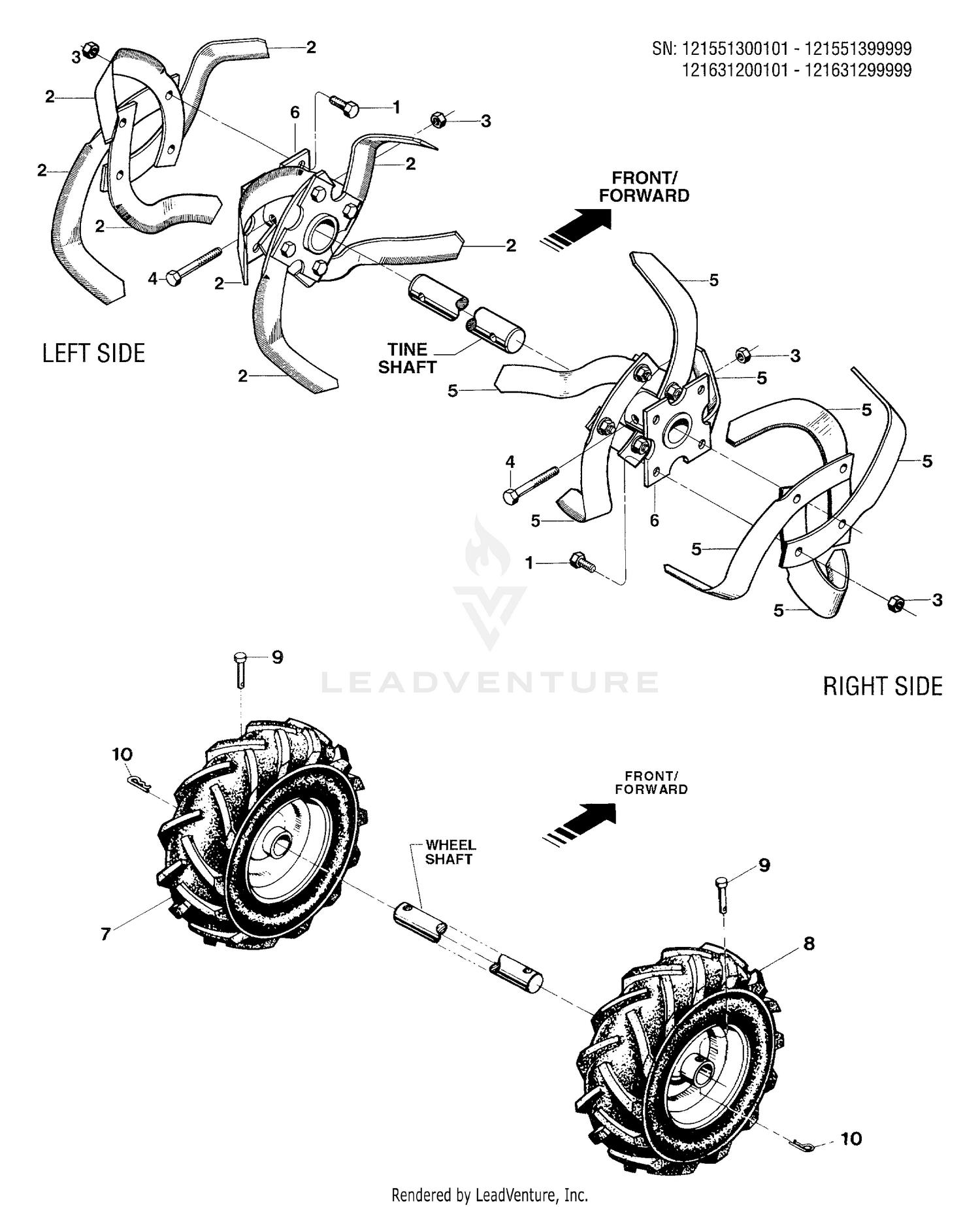

| Ref | Part Number | Description |
|---|
| 1 |
9711 |
Bolt-Hex Head, 3/8-16 x 1", Grade 5, Tine Mounting Price: Call Us |
| 3 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 4 |
9555 |
Bolt-Hex Hd., 3/8-16 x 1-3/4" (tine holder to tiller shaft) Price: Call Us |
| 6 |
686-04066 |
Tine Holder Assembly This part replaces 1915075001. Price: $61.35 |
| 7 |
734-04162 |
WHEEL ASSEMBLY 10 x 2.75 (LH) Not Available This part replaces 55095-01. Price: |
| 8 |
55095-02 |
WHEEL ASSEMBLY Not Available Price: |
| 9 |
711-04126 |
Clevis Pin This part replaces 9380. Price: $3.64 |
