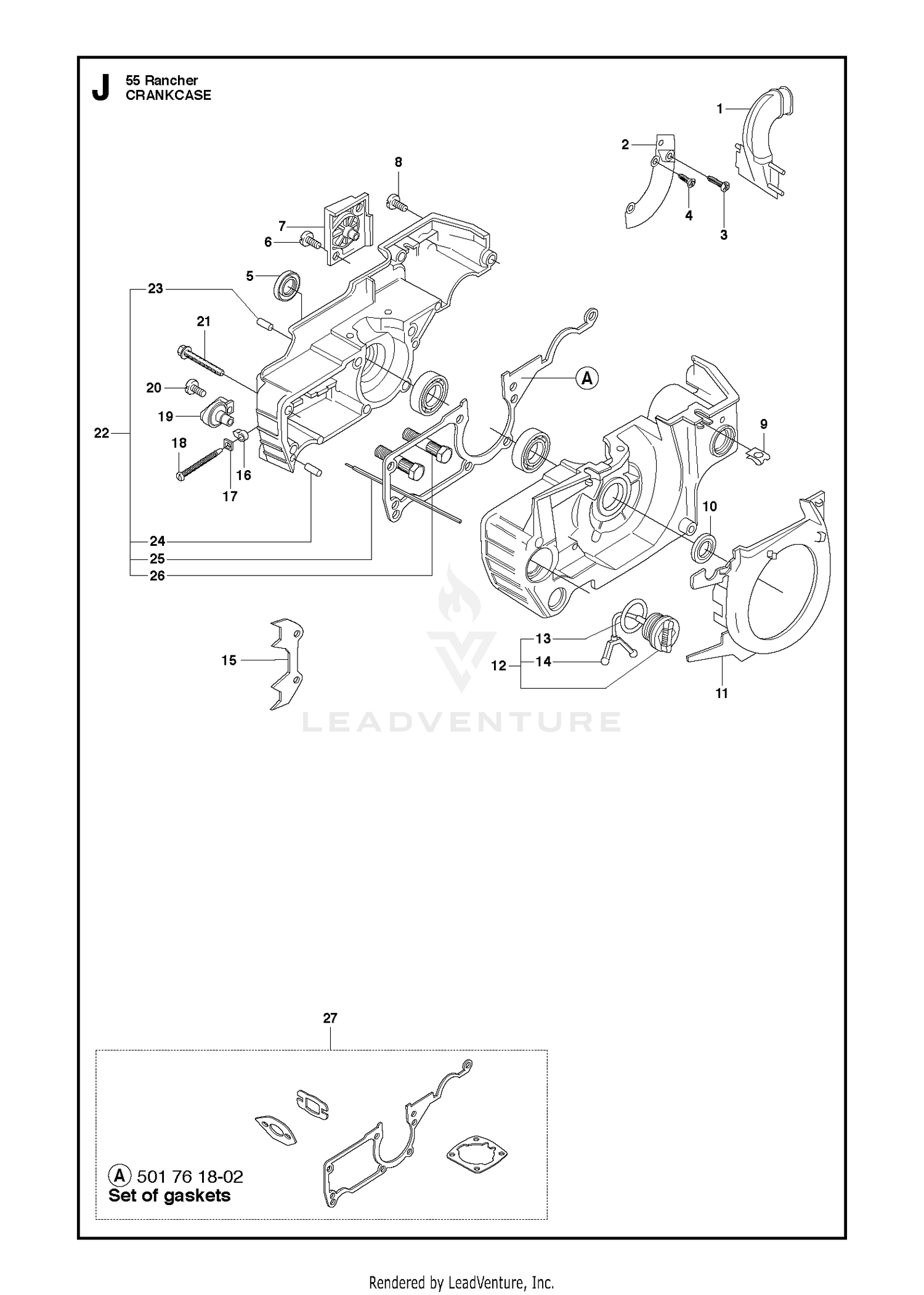

CRANKCASE
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503729801 | AIR NOZZLE Price: $14.99 |
| 2 | 503730401 | AIR BAFFLE Price: $7.99 |
| 3 | 586505201 | NEEDS DESCRIPTION This part replaces 503212716. Price: $1.99 |
| 4 | 724332556 | SCREW *** Price: $2.99 |
| 5 | 505275719 | SEAL RING Price: $11.99 |
| 6 | 503200216 | SCREW Price: $3.99 |
| 7 | 501764403 | CAP Price: $11.99 |
| 8 | 503200216 | SCREW Price: $3.99 |
| 9 | 503226201 | PLATE NUT Price: $3.99 |
| 10 | 505275719 | SEAL RING Price: $11.99 |
| 11 | 501763003 | AIR CONDUCTOR Price: $14.99 |
| 12 | 501765602 | OIL CAP Price: $8.99 |
| 13 | 740440500 | O-RING Price: $5.99 |
| 14 | 503578901 | TANK LOCK Price: $4.99 |
| 15 | 501795001 | FELLING DOG Price: $14.99 |
| 16 | 501454101 | PAWL Price: $5.99 |
| 17 | 501452702 | NUT Price: $3.99 |
| 18 | 501546301 | SCREW Price: $4.99 |
| 19 | 501766403 | CHAIN CATCHER Price: $5.99 |
| 20 | 503200225 | SCREW Price: $2.99 |
| 21 | 503207450 | SCREW This part replaces 503200250. Price: $5.99 |
| 22 | 501762202 | CRANKCASE Price: $219.99 |
| 24 | 720130752 | Pins This part replaces 720130710. Price: $4.99 |
| 25 | 503668401 | OIL TANK VENT Price: $6.99 |
| 26 | 503684242 | BAR BOLT Price: $7.99 |
